The SafeLINC FPII card can be mounted to the 4100ES, 4100U, 4100, 4010ES, 4120, or 4020
systems. The mounting in each case is different. Refer to the appropriate topic in this section,
depending on which fire alarm system you are using.
The SafeLINC FPII assembly is to be mounted on the PDI in a 4100U/4100ES expansion bay
(Figure 4). The card should be mounted to the left-most position on the PDI connector as Figure 4
illustrates.
Use the connector on the backside of the SafeLINC FPII card to connect to the bay as shown in
Figure 4, below.

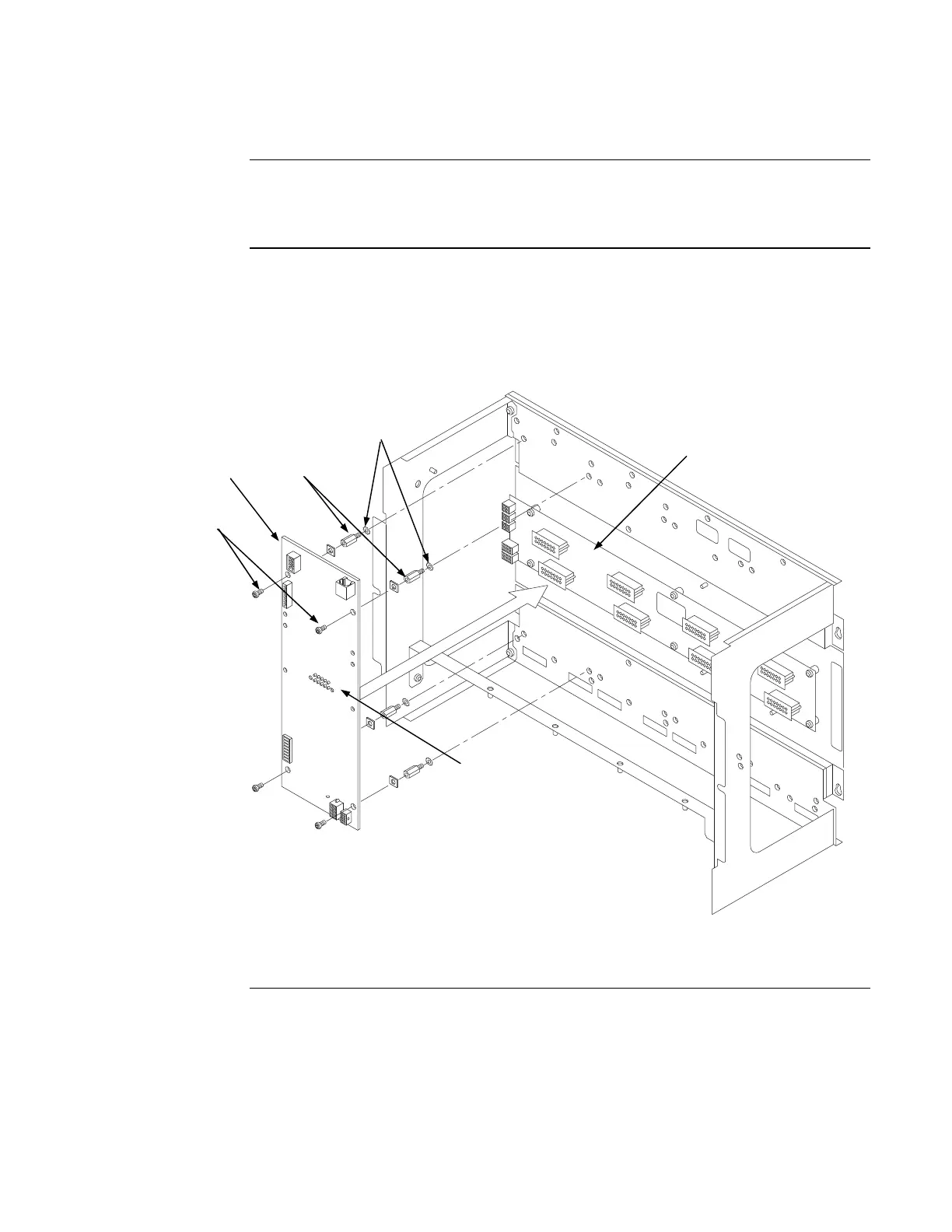

Figure 4. 4100U/4100ES Mounting
Mounting the SafeLINC FPII Card
Overview
4100U/4100ES
Mounting
SafeLINC FPII
Card
Standoffs
#6 Screws
Washers
PDI Connector
(reverse side)
PDI
