Simplex SafeLINC 4100-6060 - Requirements; Safelinc FPII Card Illustration

2
To use the SafeLINC FPII properly, you must meet the following requirements:
• Win98, ME, NT, or 2000 Operating System
• Internet Explorer (IE) 5.0+ web browser
• FACP System Firmware: V9.02.02, 10.61, 11.03, or greater
• 4100ES, 4100U, 4100, 4010ES, 4120, or 4020 FACP

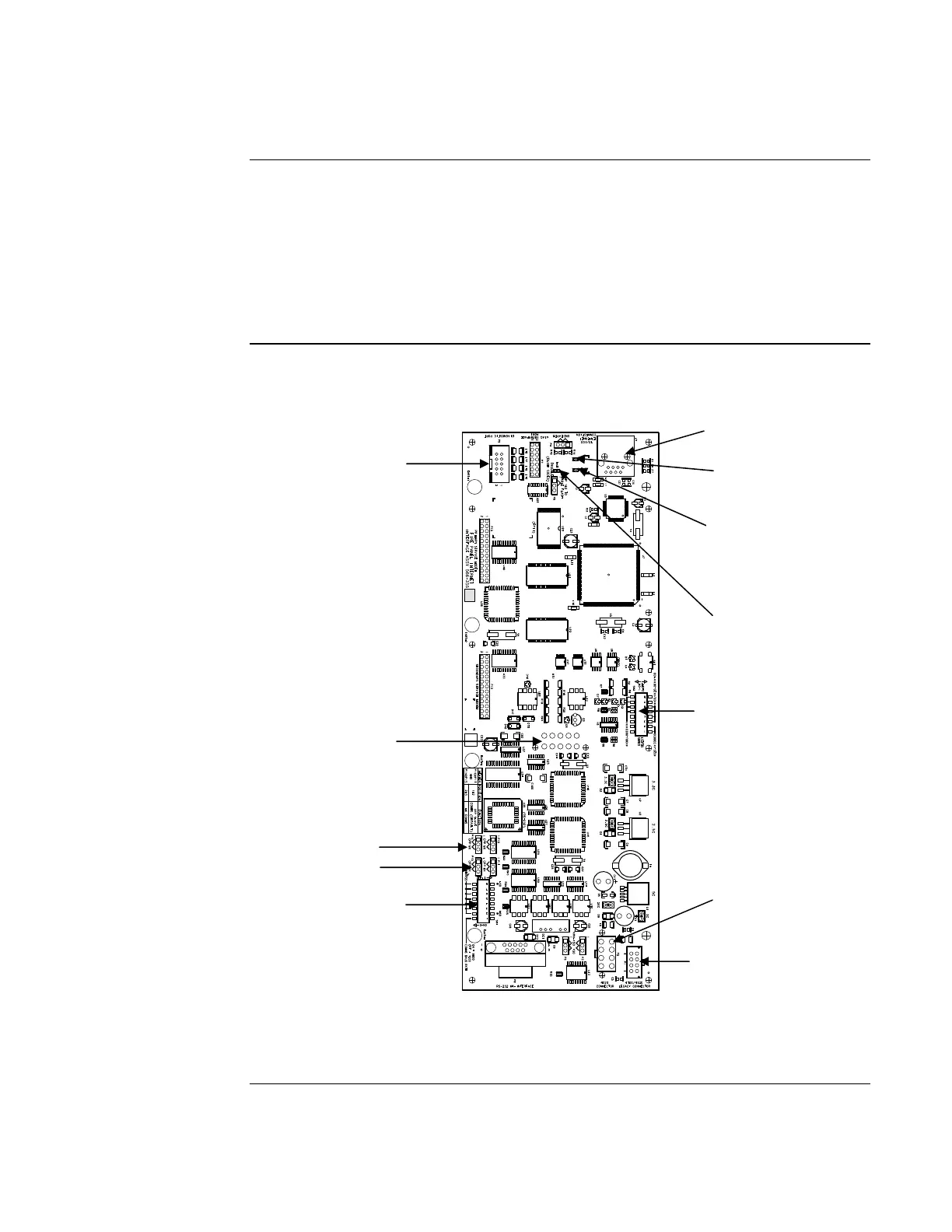

Figure 1 depicts the SafeLINC FPII card.
NETWORK
LINK ACT
L7
Figure 1. The SafeLINC FPII Card
Introduction to the SafeLINC FPII, Continued
Requirements
SafeLINC FPII Card
Illustration
SafeLINC FPII TROUBLE
LED
(
LED3
)
NETWORK LINK LED
(LED1)
SafeLINC FPII SLAVE CARD
BAUD RATE / ADDRESS DIP
SWITCH (SW4)
4100 POWER & COMMS
CONNECTOR
(NON-4100U/4100ES or
4010ES) (P1)
4020 POWER & COMMS
CONNECTOR (P2)
4100ES /4100U/4100/4010ES/4120
COMMS & 4020 (RUI) COMMS DIP
SWITCH (SW2)
CPP / MX JUMPERS
(P14, P10)
(P15, P11)
DIAGNOSTICS &
CONFIGURATION PORT
(P9)
4100U/4100ES/4010ES
POWER & COMMS
PDI CONNECTOR
(reverse side)
ETHERNET
CONNECTION (J1)
NETWORK ACTIVITY LED
(LED2)
