This section contains the complete field wiring drawings for the SafeLINC FPII card.
The SafeLINC FPII card can connect to 4100U/4100ES and 4010ES PDI boards as shown below.
Unlike the 4100/4120 and 4020, a harness is not required for power and communications.

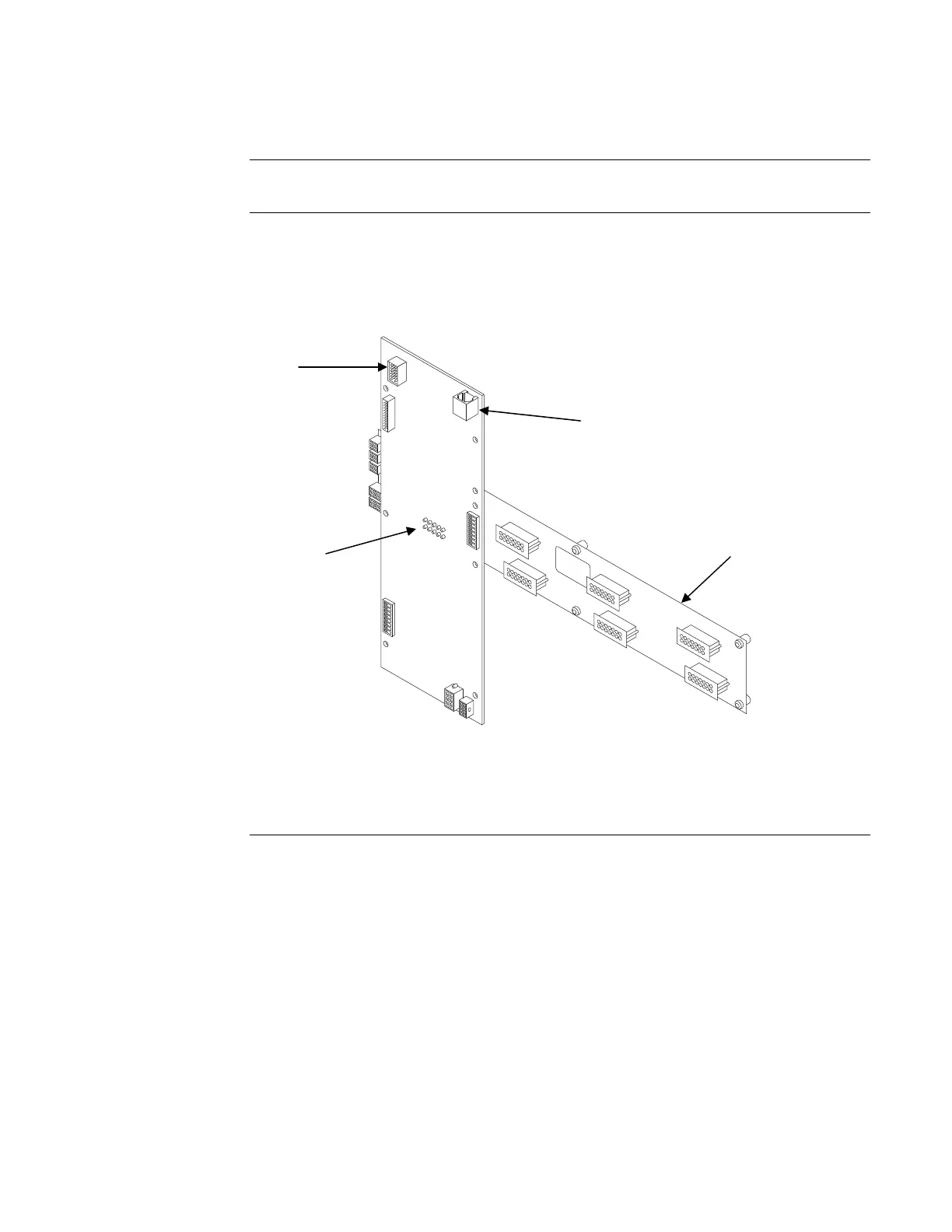

Figure 7. 4100U/4100ES and 4010ES-Style Wiring
SafeLINC FPII Field Wiring
Overview
4100U/4100ES/
4010ES-Style Wiring
PDI Connector P16
PDI Board
J1:
Connect to Corporate LAN. All equipment
comprising Corporate LAN is to be UL-Listed
Information Technology Equipment.
Use EIA/TIA-568a CAT-5-Compliant Cable, or
better.
Either Unshielded (UTP) or Shielded (STP)
Cable is Acceptable.
Terminate Cable with RJ-45 Connector (if not
already terminated by MIS/IT).
P9:
SafeLINC FPII Diagnostic
and Configuration Port (Not
Connected During Normal
Operation)
Use 733-794 Download
Cable to Interface SafeLINC
FPII to PC/Laptop.
To Next Page
