In a 4020 system, the SafeLINC FPII assembly mounts onto either the back plate or hat bracket as
shown below.
Mount the card to the left-most position on the mounting rails (if possible).
IMPORTANT: If a hat bracket is installed, the SafeLINC FPII assembly must be
mounted to the hat bracket.

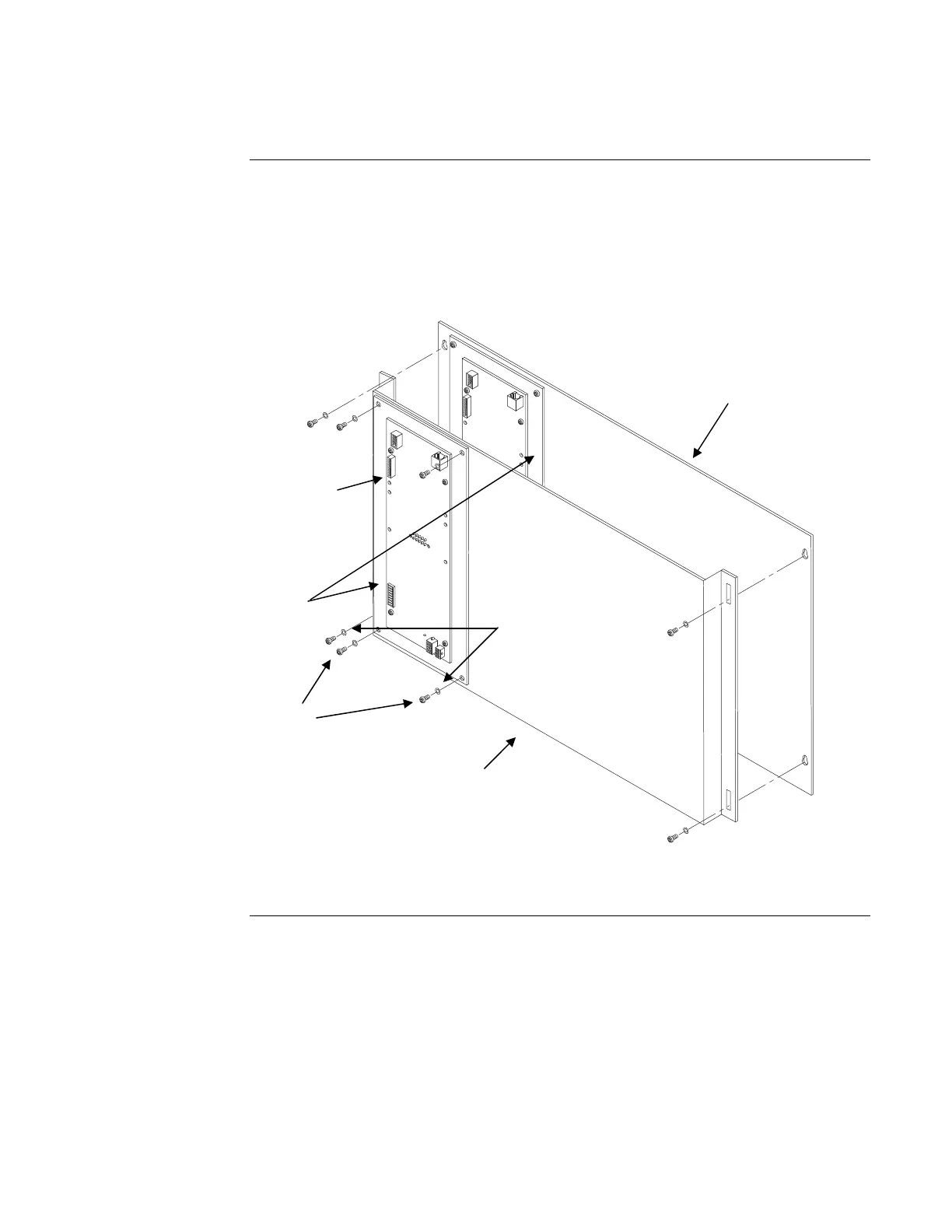

Figure 6. 4020 Mounting
Mounting the SafeLINC FPII Card, Continued
4020 Mounting
Hat bracket (optional)
SafeLINC FPII assembly
must be mounted to hat
bracket if applicable
#6 Screws
Washers
Back Plate
677-604
Bracket
(Bracket must be mounted
to hat bracket or back
plate before SafeLINC FPII
assembly is attached to it)
