ffimpiiciitj
Troubleshooting
Problem
Cause/Remedy
5.
Rotary
tiller
does
not
operate.
A.
Rotary
tiller
drive
belt
broken.
Replace.
B.
Spring
for
idler
pulley
loose
or
broken.
Reconnect
or
replace.
6.
Tills
too
shallow.
A.
Ground
too
hard.
Make
several
passes,
tilling
deeper
on
each
pass.
B.
Depth
bar
set
improperly.
See
Operation
Section.
7.
Tiller
leaves
ground
rough
with
large
clods.
A.
Ground
too
wet.
Wait
for
dryer
conditions.
B.
Tilling
too
deep
for
one
pass.
Raise
depth
bar.
Figure
12.
Troubleshooting
Procedures
(Cont'd)

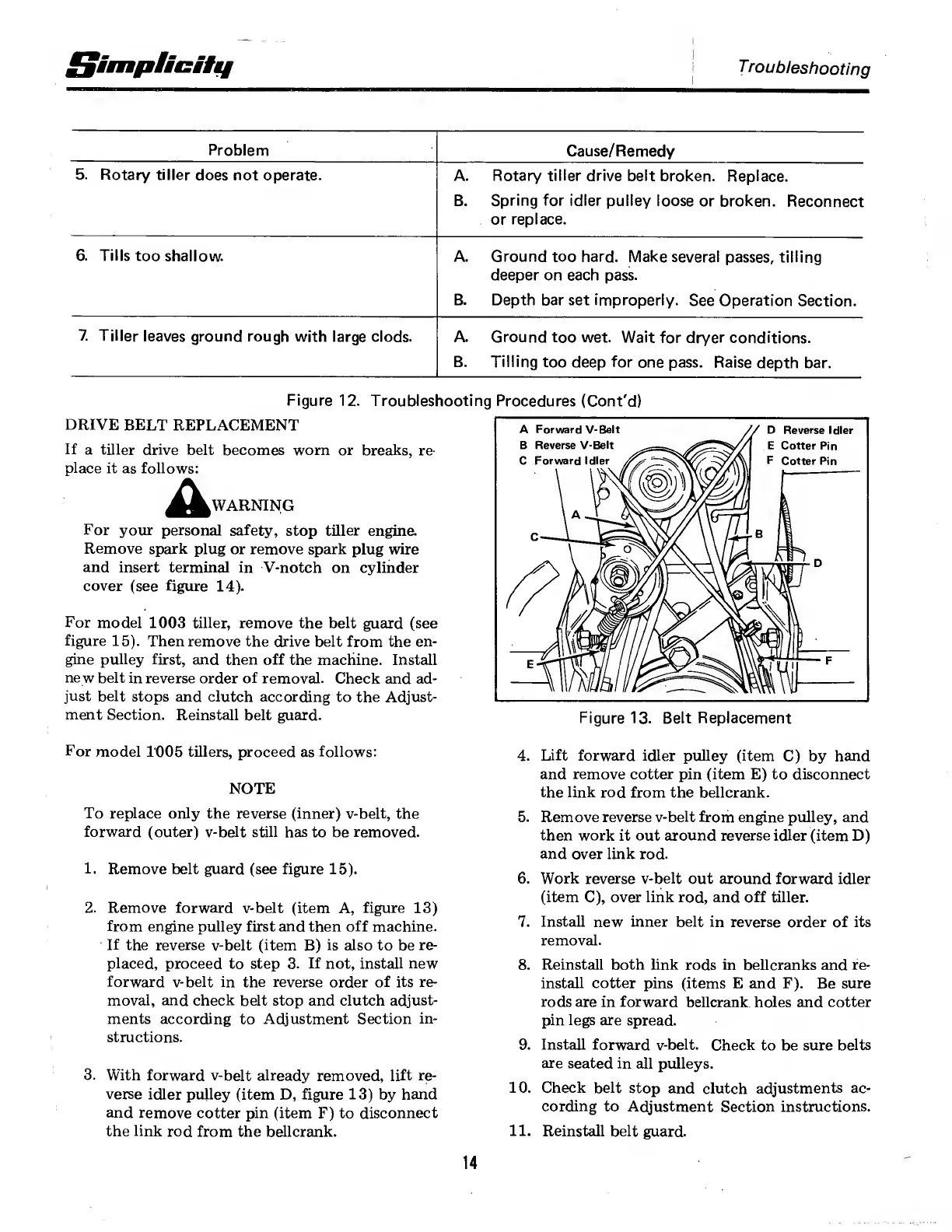

DRIVE
BELT
REPLACEMENT
If
a
tiller
drive
belt
becomes
worn
or
breaks,
place
it
as
follows:
WARNING
re-
For
your
personal
safety,
stop
tiller
engine.
Remove
spark
plug
or
remove
spark
plug
wire
and
insert
terminal
in
V-notch
on
cylinder
cover
(see
figure
14).
For
model
1003
tiller,
remove
the
belt
guard
(see
figure
15).
Then
remove
the
drive
belt
from
the
en¬
gine
pulley
first,
and
then
off
the
machine.
Install
ne
w
belt
in
reverse
order
of
removal.
Check
and
ad¬
just
belt
stops
and
clutch
according
to
the
Adjust¬
ment
Section.
Reinstall
belt
guard.
For
model
1005
tillers,
proceed
as
follows:
NOTE
To
replace
only
the
reverse
(inner)
v-belt,
the
forward
(outer)
v-belt
still
has
to
be
removed.
1.
Remove
belt
guard
(see
figure
15).
2.
Remove
forward
v-belt
(item
A,
figure
13)
from
engine
pulley
first
and
then
off
machine.
If
the
reverse
v-belt
(item
B)
is
also
to
be
re¬
placed,
proceed
to
step
3.
If
not,
install
new
forward
v-belt
in
the
reverse
order
of
its
re¬
moval,
and
check
belt
stop
and
clutch
adjust¬
ments
according
to
Adjustment
Section
in¬
structions.
3.
With
forward
v-belt
already
removed,
lift
re¬
verse
idler
pulley
(item
D,
figure
13)
by
hand
and
remove
cotter
pin
(item
F)
to
disconnect
the
link
rod
from
the
bellcrank.
4.
Lift
forward
idler
pulley
(item
C)
by
hand
and
remove
cotter
pin
(item
E)
to
disconnect
the
link
rod
from
the
bellcrank.
5.
Remove
reverse
v-belt
from
engine
pulley,
and
then
work
it
out
around
reverse
idler
(item
D)
and
over
link
rod.
6.
Work
reverse
v-belt
out
around
forward
idler
(item
C),
over
link
rod,
and
off
tiller.
7.
Install
new
inner
belt
in
reverse
order
of
its
removal.
8.
Reinstall
both
link
rods
in
bellcranks
and
re¬
install
cotter
pins
(items
E
and
F).
Be
sure
rods
are
in
forward
bellcrank
holes
and
cotter
pin
legs
are
spread.
9.
Install
forward
v-belt.
Check
to
be
sure
belts
are
seated
in
all
pulleys.
10.
Check
belt
stop
and
clutch
adjustments
ac¬
cording
to
Adjustment
Section
instructions.
11.
Reinstall
belt
guard.
14
