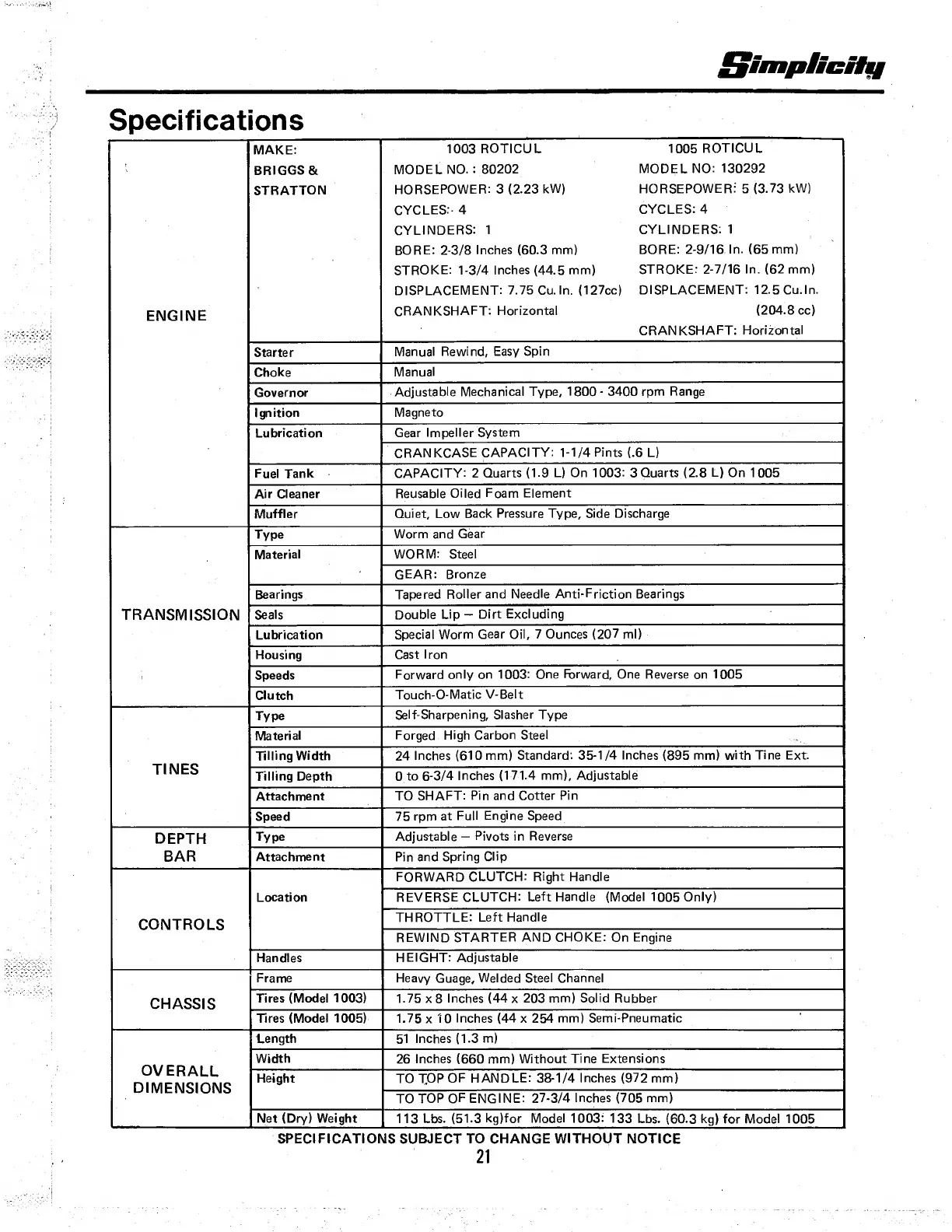

Specifications
ENGINE
MAKE:
BRIGGS &
STRATTON
1003 ROTICUL 1005 ROTICUL
MODEL NO.: 80202 MODEL NO: 130292
HORSEPOWER: 3 (2.23 kW) HORSEPOWER: 5 (3.73 kW)
CYCLES: 4 CYCLES: 4
CYLINDERS: 1 CYLINDERS: 1
BORE: 2-3/8 Inches (60.3 mm) BORE: 2-9/16 In. (65 mm)
STROKE: 1-3/4 Inches (44.5 mm) STROKE: 2-7/16 In. (62 mm)
DISPLACEMENT: 7.75 Cu.ln. (127cc) DISPLACEMENT: 12.5 Cu.ln.
CRANKSHAFT: Horizontal (204.8 cc)
CRANKSHAFT: Horizontal
Starter
Manual Rewind, Easy Spin
Choke
Manual
Governor
Adjustable Mechanical Type, 1800- 3400 rpm Range
Ignition Magneto
Lubrication Gear Impeller System
CRANKCASE CAPACITY: 1-1/4 Pints (.6 L)
Fuel Tank
CAPACITY: 2 Quarts (1.9 L) On 1003: 3 Quarts (2.8 L) On 1005
Air Cleaner
Reusable Oiled Foam Element
Muffler
Quiet, Low Back Pressure Type, Side Discharge
Type
Worm and Gear
Material WORM: Steel
GEAR: Bronze
Bearings Tapered Roller and Needle Anti-Friction Bearings
TRANSMISSION
Seals
Double Lip — Dirt Excluding
Lubrication
Special Worm Gear Oil, 7 Ounces (207 ml)
Housing Cast Iron
Speeds
Forward only on 1003: One Forward, One Reverse on 1005
Clutch
Touch-O-Matic V-Belt
Type
Self-Sharpening, Slasher Type
Material
Forged High Carbon Steel
Tilling Width
24 Inches (610 mm) Standard: 35-1/4 Inches (895 mm) with Tine Ext.
TINES
Tilling Depth
0 to 6-3/4 Inches (171.4 mm), Adjustable
Attachment
TO SHAFT: Pin and Cotter Pin
Speed
75 rpm at Full Engine Speed
DEPTH
Type
Adjustable — Pivots in Reverse
BAR
Attachment Pin and Spring Clip
FORWARD CLUTCH: Right Handle
Location
REVERSE CLUTCH: Left Handle (Model 1005 Only)
CONTROLS
THROTTLE: Left Handle
REWIND STARTER AND CHOKE: On Engine
Handles
HEIGHT: Adjustable
Frame
Heavy Guage, Welded Steel Channel
CHASSIS
Tires (Model 1003) 1.75 x 8 Inches (44 x 203 mm) Solid Rubber
Tires (Model 1005) 1.75 x 10 Inches (44 x 254 mm) Semi-Pneumatic
Length 51 Inches (1.3 m)
Width
26 Inches (660 mm) Without Tine Extensions
UVhHALL
Dl MENTIONS
Height TO TOP OF HANDLE: 38-1/4 Inches (972 mm)
TO TOP OF ENGINE: 27-3/4 Inches (705 mm)
Net (Dry) Weight
113 Lbs. (51.3 kg)for Model 1003: 133 Lbs. (60.3 kg) for Model 1005
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
21
