Operation
CONTENT OF SECTION
A brief description of the rotary tiller controls,
followed by the basic operating procedures, is given
in this section to help you get to know your rotary
tiller and how to operate it safely and efficiently.
ROTARY TILLER CONTROLS
The rotary tiller is operated using controls located
on the handle bars. Figure 1 shows the location,
name and function of these controls. The control
names given in figure 1 are used throughout this
manual.
! i a i ■ i
| , WARNING
For your personal safety, either remove spark
plug or remove cable from spark plug and in¬
sert terminal in V-notch on cylinder cover
(see figure 14) before servicing or adjusting
your tiller.
c
(1005 only)
Item
Name
Function
A
B
Throttle
Lever
Forward
Clutch
Lever
Reverse
Clutch
Lever
1(1005 Only)
Used to adjust engine speed or stop
engine.
Controls forward action of tiller.
Squeeze lever to engage drive. Release|
to stop.
Controls reverse action of tiller.
Squeeze lever to engage drive. Release
to stop.

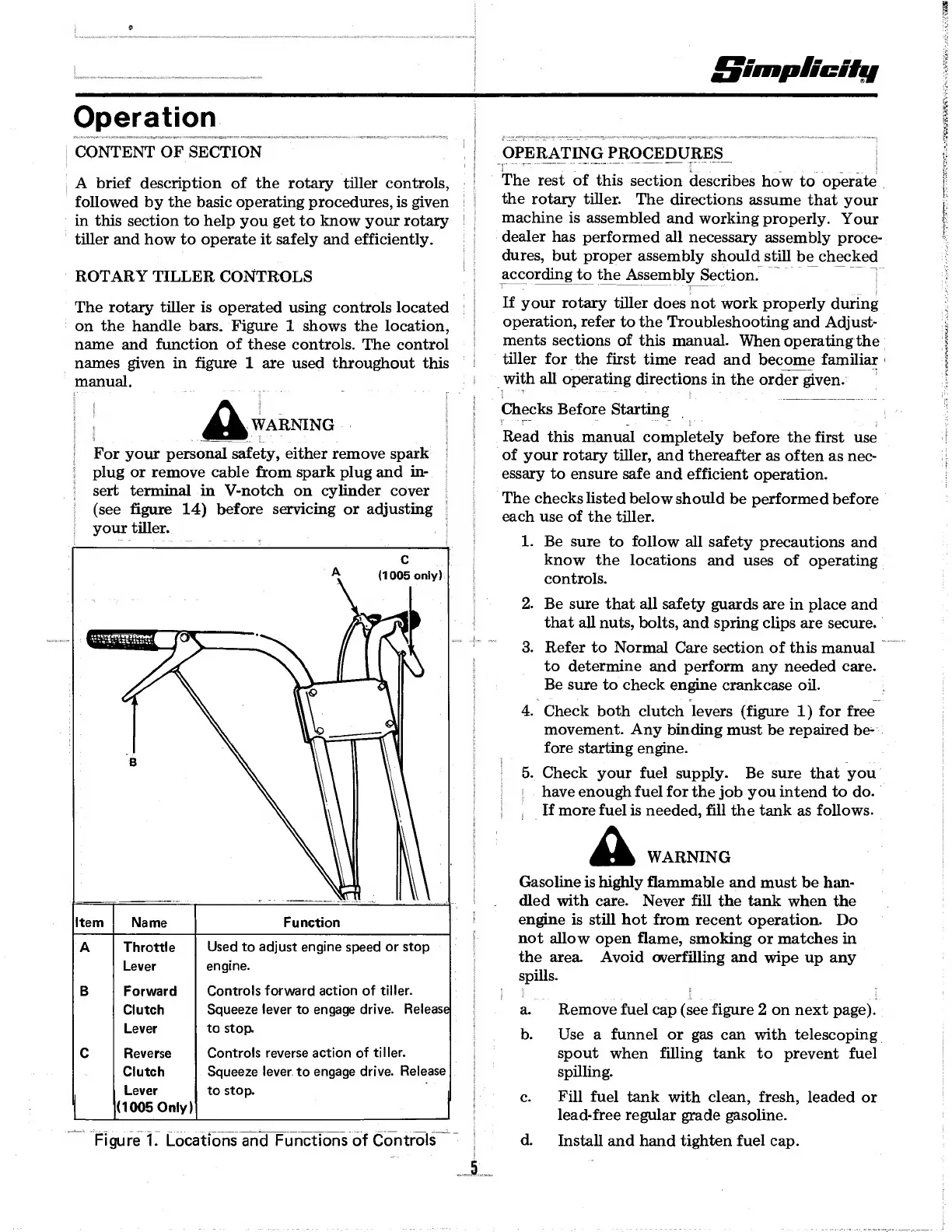

Figure 1. Locations and Functions of Controls
.i
OPERATING PR OCE DURES
The rest of this section describes how to operate
the rotary tiller. The directions assume that your
machine is assembled and working properly. Your
dealer has performed all necessary assembly proce¬
dures, but proper assembly should still be checked
acco rding to the Assembly Section. T
. I
If your rotary tiller does not work properly during
operation, refer to the Troubleshooting and Adjust¬
ments sections of this manual. When operating the
tiller for the first time read and become familiar
with all operating directions in the order given.
Checks Before Starting
Read this manual completely before the first use
of your rotary tiller, and thereafter as often as nec¬
essary to ensure safe and efficient operation.
The checks listed below should be performed before
each use of the tiller.
1. B e sure to follow all safety precautions and
know the locations and uses of operating
controls.
2. Be sure that all safety guards are in place and
that all nuts, bolts, and spring clips are secure.
3. Refer to Normal Care section of this manual
to determine and perform any needed care.
Be sure to check engine crankcase oil.
4. Check both clutch levers (figure 1) for free
movement. Any binding must be repaired be¬
fore starting engine.
5. Check your fuel supply. Be sure that you
have enough fuel for the job you intend to do.
If more fuel is needed, fill the tank as follows.
WARNING
Gasoline is highly flammable and must be han¬
dled with care. Never fill the tank when the
engine is still hot from recent operation. Do
not allow open flame, smoking or matches in
the area. Avoid overfilling and wipe up any
spills.
a. Remove fuel cap (see figure 2 on next page).
b. Use a funnel or gas can with telescoping
spout when filling tank to prevent fuel
spilling.
c. Fill fuel tank with clean, fresh, leaded or
lead-free regular grade gasoline.
d. Install and hand tighten fuel cap.
