6 - 71
6 General Repair
6F Rear Wheel Repair
WHEELS
General

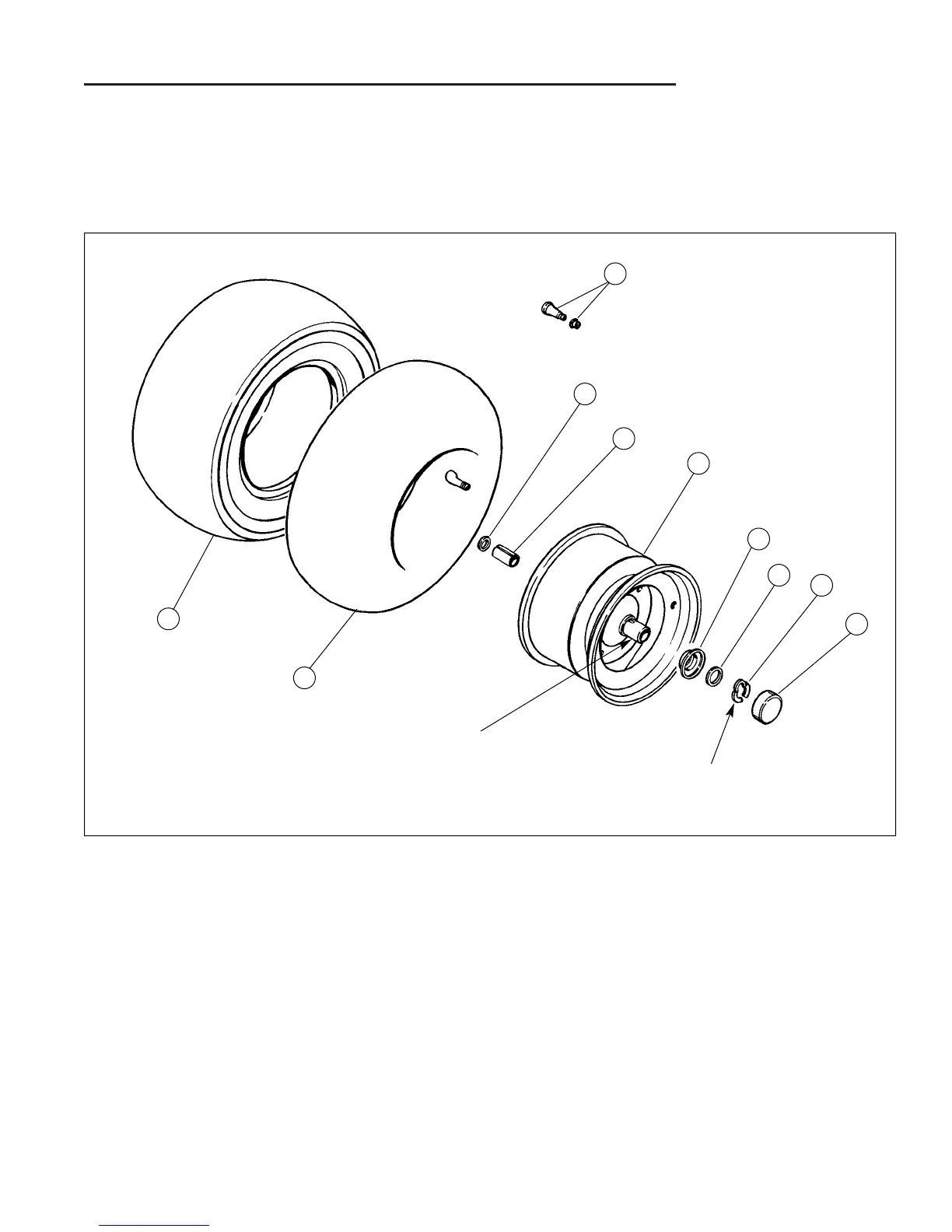

The following shows an exploded view of late model rear
wheel assemblies.
Figure F-1. Rear Wheel Assembly
Retaining ring must be
properly seated in groove
of rear axle.
Apply anti-seize lubri-
cant to axle before
assembly.
I
H
G
F
B
A
E
D
C
A.
Rear Tire
B.
Tube (Optional)
C.
Washer)
D.
Spacer
E.
Rim Assembly
F.
Washer, Hub Cap Retainer
G.
Washer
H.
Retaining Ring
I.
Hub Cap
J.
Valve Stem & Cap
J
140
142
