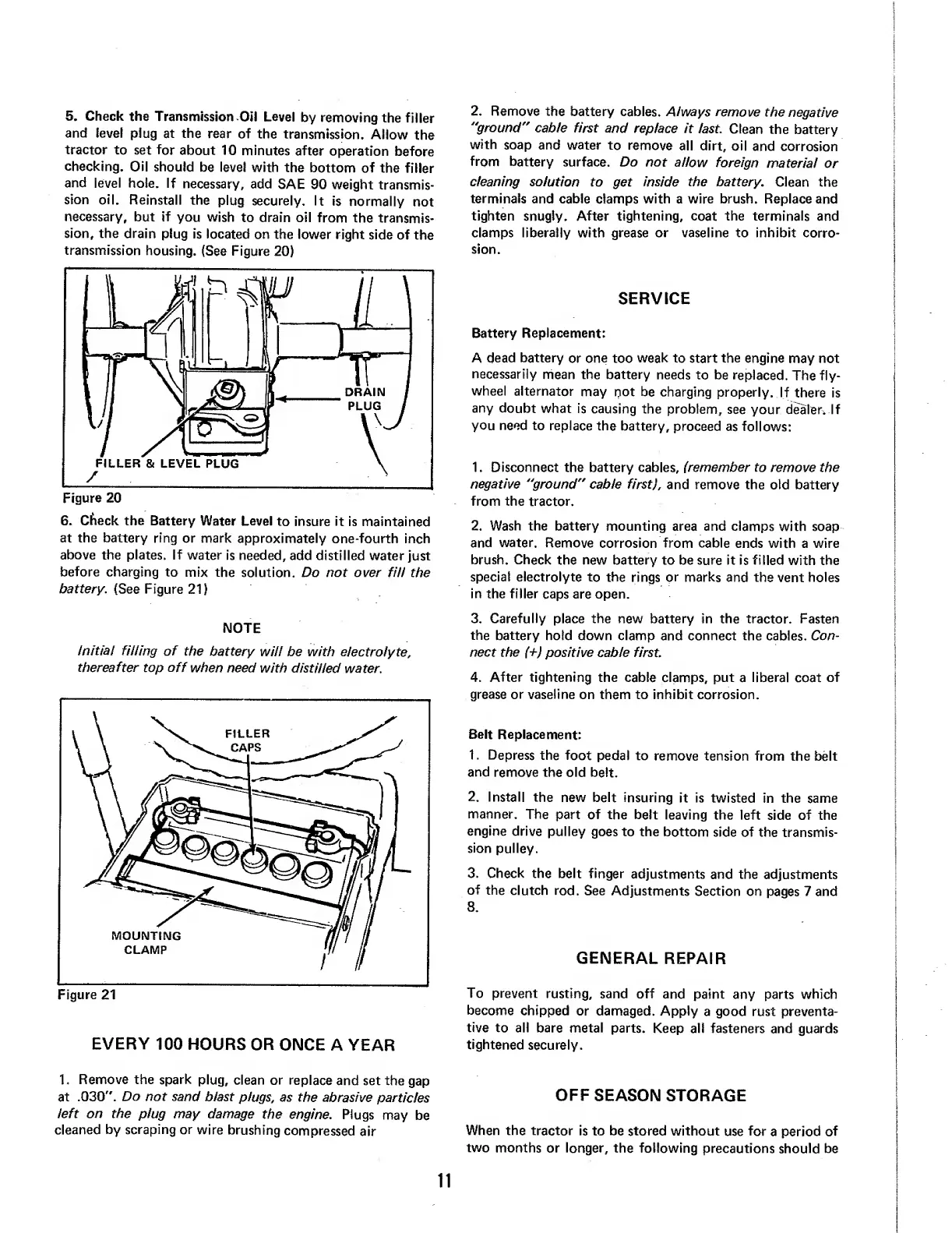

5. Check the Transmission Oil Level by removing the filler
and level plug at the rear of the transmission. Allow the
tractor to set for about 10 minutes after operation before
checking. Oil should be level with the bottom of the filler
and level hole. If necessary, add SAE 90 weight transmis¬
sion oil. Reinstall the plug securely. It is normally not
necessary, but if you wish to drain oil from the transmis¬
sion, the drain plug is located on the lower right side of the
transmission housing. (See Figure 20)
6. Check the Battery Water Level to insure it is maintained
at the battery ring or mark approximately one-fourth inch
above the plates. If water is needed, add distilled water just
before charging to mix the solution. Do not over fill the
battery. (See Figure 21)
NOTE
Initial filling of the battery will be with electrolyte,
thereafter top off when need with distilled water.
EVERY 100 HOURS OR ONCE A YEAR
1. R e move the spark plug, clean or replace and set the gap
at .030". Do not sand blast plugs, as the abrasive particles
left on the plug may damage the engine. Plugs may be
cleaned by scraping or wire brushing compressed air
2. R e move the battery cables. Always remove the negative
“ground" cable first and replace it last. Clean the battery
with soap and water to remove all dirt, oil and corrosion
from battery surface. Do not allow foreign material or
cleaning solution to get inside the battery. Clean the
terminals and cable clamps with a wire brush. Replace and
tighten snugly. After tightening, coat the terminals and
clamps liberally with grease or vaseline to inhibit corro¬
sion.
SERVICE
Battery Replacement:
A dead battery or one too weak to start the engine may not
necessarily mean the battery needs to be replaced. The fly¬
wheel alternator may not be charging properly. If there is
any doubt what is causing the problem, see your dealer. If
you need to replace the battery, proceed as follows:
1. Disconnect the battery cables, (remember to remove the
negative “ground" cable first), and remove the old battery
from the tractor.
2. Wash the battery mounting area and clamps with soap
and water. Remove corrosion from cable ends with a wire
brush. Check the new battery to be sure it is filled with the
special electrolyte to the rings or marks and the vent holes
in the filler caps are open.
3. Carefully place the new battery in the tractor. Fasten
the battery hold down clamp and connect the cables. Con¬
nect the (+) positive cable first.
4. After tightening the cable clamps, put a liberal coat of
grease or vaseline on them to inhibit corrosion.
Belt Replacement:
1. Depress the foot pedal to remove tension from the belt
and remove the old belt.
2. Install the new belt insuring it is twisted in the same
manner. The part of the belt leaving the left side of the
engine drive pulley goes to the bottom side of the transmis¬
sion pulley.
3. Check the belt finger adjustments and the adjustments
of the clutch rod. See Adjustments Section on pages 7 and
8 .
GENERAL REPAIR
To prevent rusting, sand off and paint any parts which
become chipped or damaged. Apply a good rust preventa¬
tive to all bare metal parts. Keep all fasteners and guards
tightened securely.
OFFSEASON STORAGE
When the tractor is to be stored without use for a period of
two months or longer, the following precautions should be
11

Simplicity Broadmoor 5008 Specifications

General

Fuel Type	Gasoline
Drive Type	2WD
Transmission Type	Hydrostatic
Turning Radius	18 inches
Engine	Briggs & Stratton
Engine (Detailed)	Briggs & Stratton Intek
Seat	High Back
Warranty	2 years
