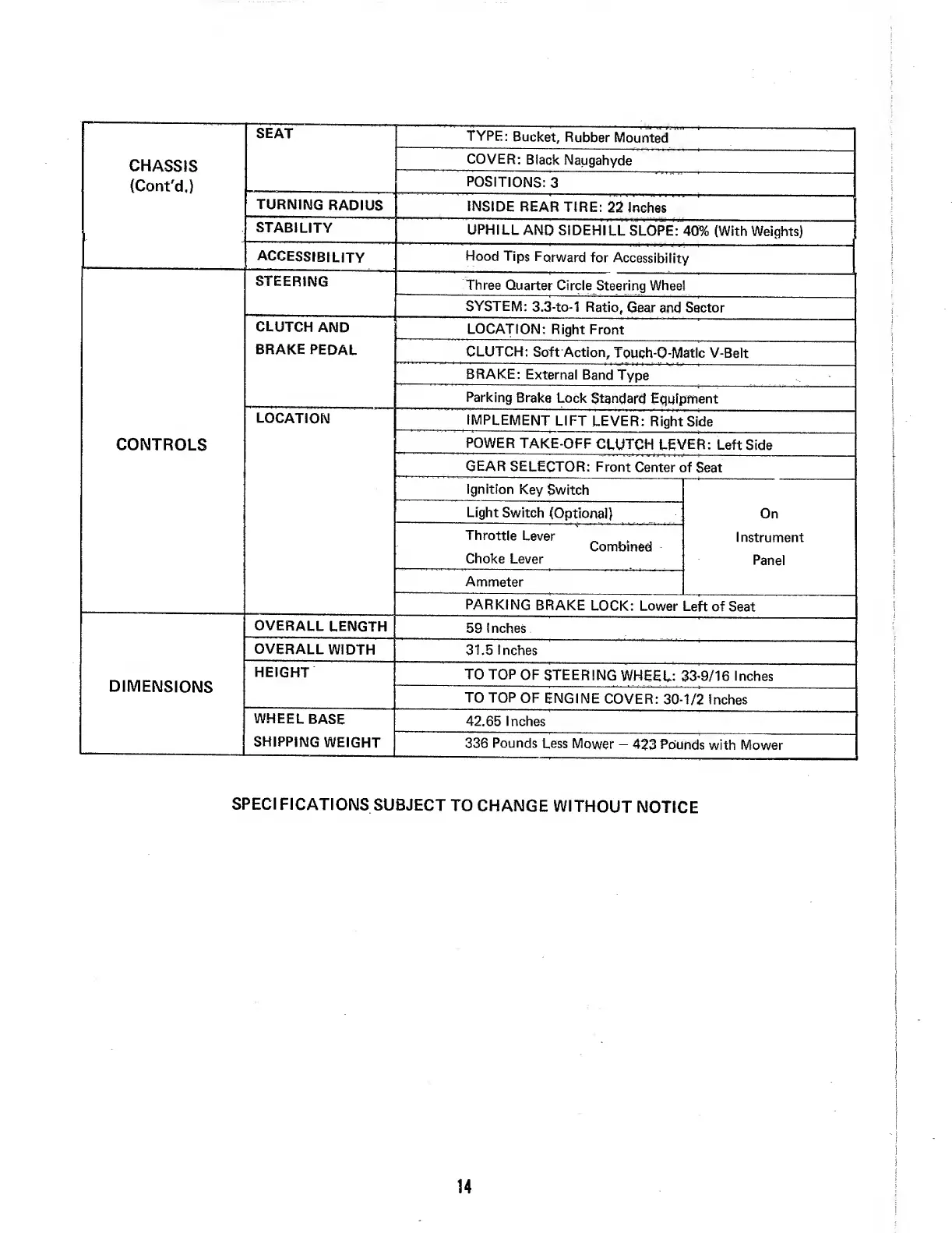

Simplicity Broadmoor 5008 - CHASSIS; DIMENSIONS

SEAT
TYPE: Bucket, Rubber Mounted
CHASSIS
COVER: Black Naugahyde
(Cont'd,)
POSITIONS: 3
TURNING RADIUS
INSIDE REAR TIRE: 22 Inches
STABILITY
UPHILL AND SIDEHILL SLOPE: 40% (With Weights)
ACCESSIBILITY
Hood Tips Forward for Accessibility
STEERING
Three Quarter Circle Steering Wheel
SYSTEM: 3.3-to-1 Ratio, Gear and Sector
CLUTCH AND
LOCATION: Right Front
BRAKE PEDAL
CLUTCH: Soft Action, Touch-Q-Matte V-Belt
BRAKE: External Band Type
Parking Brake Lock Standard Equipment
LOCATION
IMPLEMENT LIFT LEVER: Right Side
CONTROLS
POWER TAKE-OFF CLUTCH LEVER: Left Side
GEAR SELECTOR: Front Center of Seat
Ignition Key Switch
Light Switch (Optional)
On
Throttle Lever
Combined
Choke Lever
Instrument
Panel
Ammeter
PARKING BRAKE LOCK: Lower Left of Seat
OVERALL LENGTH
59 Inches
OVERALL WIDTH
31.5 Inches
DIMENSIONS
HEIGHT
TO TOP OF STEERING WHEEL: 33-9/16 Inches
TO TOP OF ENGINE COVER: 30-1/2 Inches
WHEEL BASE
42,65 Inches
SHIPPING WEIGHT
336 Pounds Less Mower - 423 Pounds with Mower
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
