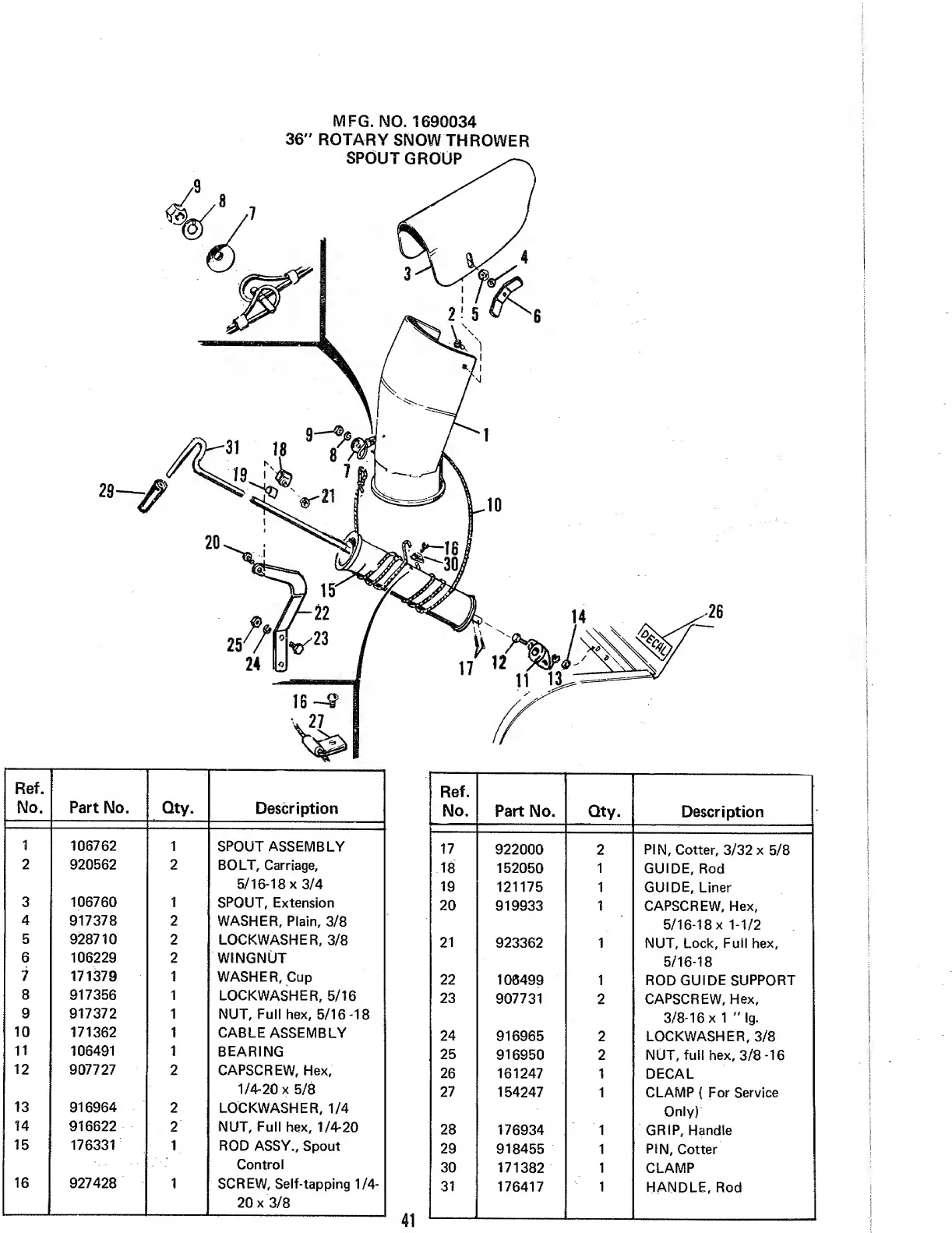

Simplicity Broadmoor 5008 - Section 2

Part No.
106762
920562
106760
917378
928710
106229
171379
917356
917372
171362
106491
907727
916964
916622
176331
927428
Description
SPOUT ASSEMBLY
BOLT, Carriage,
5/16-18x 3/4
SPOUT, Extension
WASHER, Plain, 3/8
LOCKWASHER, 3/8
WINGNUT
WASHER, Cup
LOCKWASHER, 5/16
NUT, Full hex, 5/16-18
CABLE ASSEMBLY
BEARING
CAPSCREW, Hex,
1/4-20 x 5/8
LOCKWASHER, 1/4
NUT, Full hex, 1/4-20
ROD ASSY., Spout
Control
SCREW, Self-tapping 1/4-
20 x 3/8
Ref.
No.
Part No.
17
922000
18
152050
19
121175
20
919933
21
923362
22
106499
23
907731
24
916965
25
916950
26 161247
27
154247
28
176934
29
918455
30
171382
31
176417
Description
PIN, Cotter, 3/32 x 5/8
GUIDE, Rod
GUIDE, Liner
CAPSCREW, Hex,
5/16-18 x 1-1/2
NUT, Lock, Full hex,
5/16-18
ROD GUIDE SUPPORT
CAPSCREW, Hex,
3/8-16 x 1 " Ig.
LOCKWASHER, 3/8
NUT, full hex, 3/8-16
DECAL
CLAMP { For Service
Only)
GRIP, Handle
PIN, Cotter
CLAMP
HANDLE, Rod
