Simplicity Broadmoor 5008 - Page 44

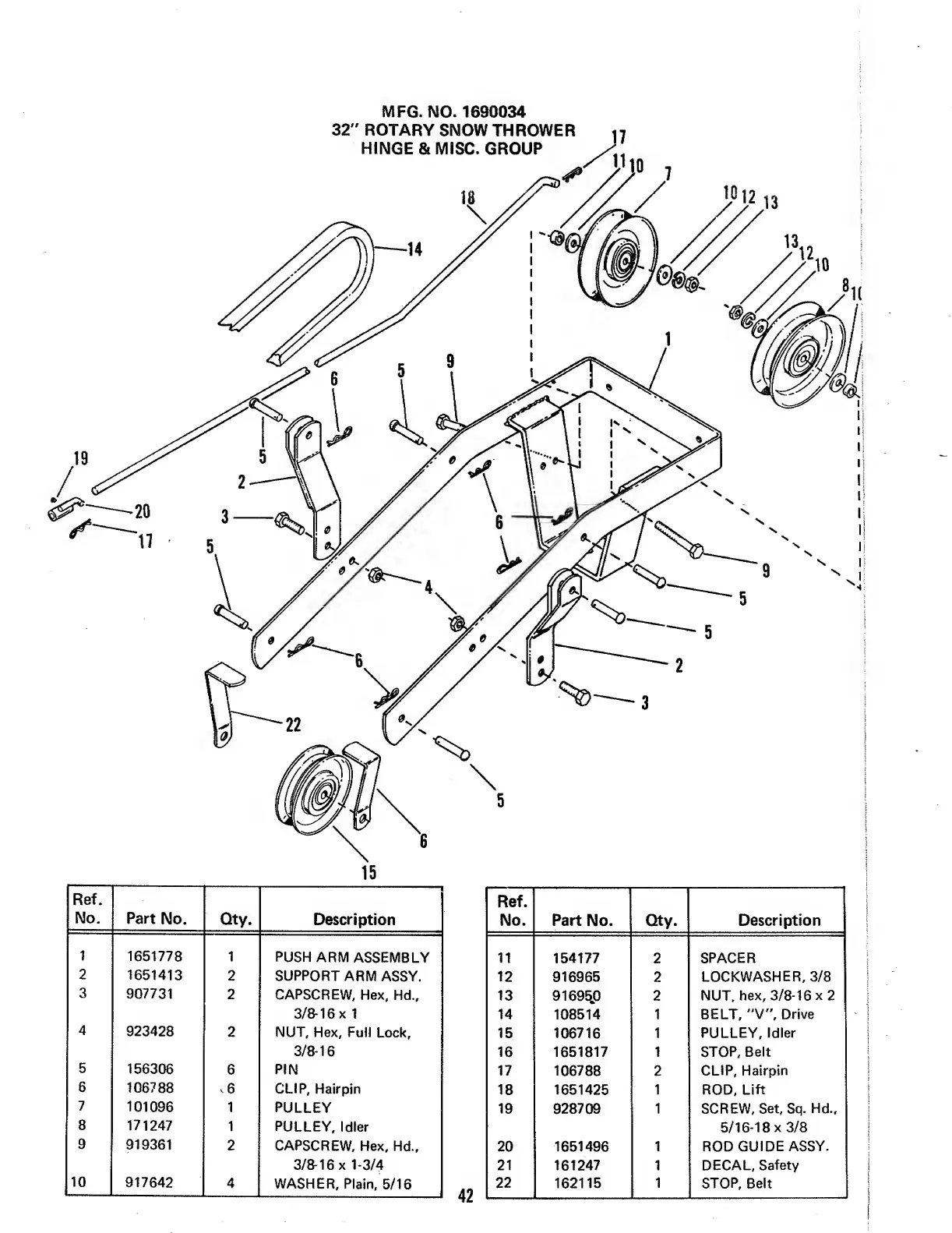

MFG. NO. 1690034
32" ROTARY SNOW THROWER 17
HINGE & MISC. GROUP
15
Ref.
Ref.
No.
Part No.
Qty.
Description
No.
Part No.
Qty. Description
1
1651778 1
PUSH ARM ASSEMBLY
11 154177
2
SPACER
2
1651413
2
SUPPORT ARM ASSY.
12 916965
2
LOCKWASHER, 3/8
3
907731
2
CAPSCREW, Hex, Hd.,
13 91695.0 2
NUT, hex, 3/8-16x2
3/8-16 x 1
14
108514
1 BELT, "V", Drive
4
923428
2
NUT, Hex, Full Lock,
15
106716
1 PULLEY, Idler
3/8-16
16
1651817 1 STOP, Belt
5
156306
6 PIN
17
106788
2
CLIP, Hairpin
6
106788
v 6
CLIP, Hairpin
18 1651425
1 ROD, Lift
7
101096 1
PULLEY
19
928709
1 SCREW, Set, Sq. Hd.,
8
171247
1
PULLEY, Idler
5/16-18 x 3/8
9
919361
2
CAPSCREW, Hex, Hd.,
20 1651496
1
ROD GUIDE ASSY.
3/8-16 x 1-3/4
21
161247
1
DECAL, Safety
10
917642
4
WASHER, Plain, 5/16
49
22
162115
1
STOP, Belt
