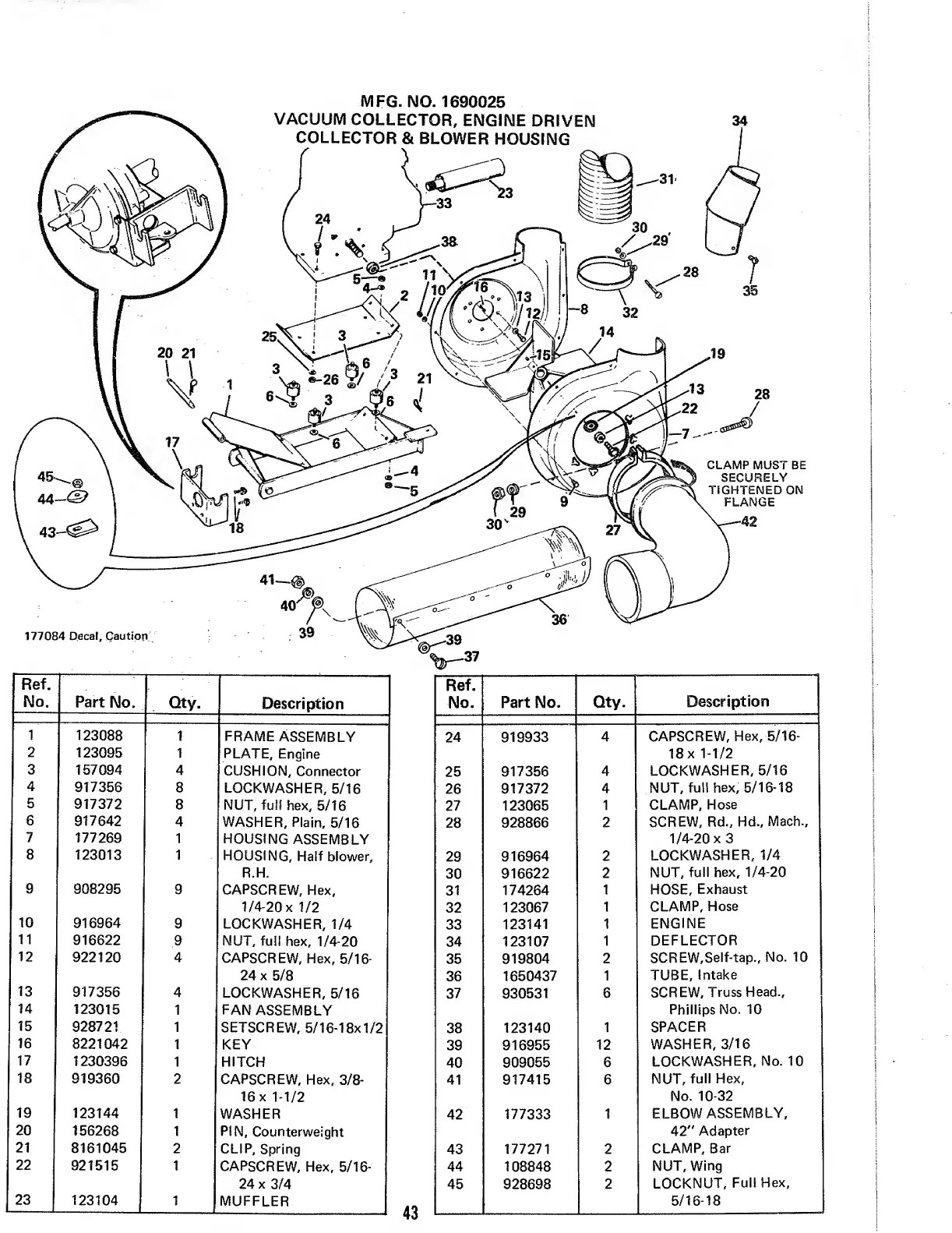

Simplicity Broadmoor 5008 - Page 45

MFG.NO. 1690025
Ref.
No.
Part No.
Qty.
Description
Ref.
No. Part No.
Qty.
Description
1
123088
1
FRAME ASSEMBLY
24 919933
4
CAPSCREW, Hex, 5/16-
2
123095 1
PLATE, Engine
18 x 1-1/2
3
157094
4
CUSHION, Connector
25 917356
4
LOCKWASHER, 5/16
4
917356
8
LOCKWASHER, 5/16
26
917372
4
NUT, full hex, 5/16-18
5
917372
8
NUT, full hex, 5/16
27 123065
1
CLAMP, Hose
6
917642
4
WASHER, Plain, 5/16
28
928866
2
SCREW, Rd., Hd., Mach.,
7
177269 1
HOUSING ASSEMBLY
1/4-20 x 3
8
123013 1
HOUSING, Half blower.
29
916964
2
LOCKWASHER, 1/4
R.H.
30
916622
2
NUT, full hex, 1/4-20
9
908295
9
CAPSCREW, Hex,
31
174264
1
HOSE, Exhaust
1/4-20 x 1/2
32
123067
1
CLAMP, Hose
10
916964
9
LOCKWASHER, 1/4
33
123141
1
ENGINE
11
916622
9
NUT, full hex, 1/4-20
34 123107
1
DEFLECTOR
12
922120
4
CAPSCREW, Hex, 5/16-
35
919804
2
SCREW,Self-tap., No. 10
24 x 5/8
36
1650437
1
TUBE, Intake
13
917356 4
LOCKWASHER, 5/16 37
930531
6
SCREW, Truss Head.,
14
123015
1
FAN ASSEMBLY
Phillips No. 10
15
928721 1
SETSCREW, 5/16-18x1/2
38
123140
1
SPACER
16
8221042
1
KEY i
39
916955
12
WASHER, 3/16
17
1230396
1
HITCH
40
909055 6
LOCKWASHER, No. 10
18
919360 2
CAPSCREW, Hex, 3/8- 41 917415
6
NUT, full Hex,
16 x 1-1/2
No. 10-32
19
123144 1
WASHER
42 177333
1
ELBOW ASSEMBLY,
20
156268 1
PIN, Counterweight
42" Adapter
21
8161045
2
CLIP, Spring
43
177271 2
CLAMP, Bar
22
921515
1
CAPSCREW, Hex, 5/16-
44
108848
2
NUT, Wing
24 x 3/4
45
928698
2
LOCKNUT, Full Hex,
23
123104
1
MUFFLER
5/16-18
