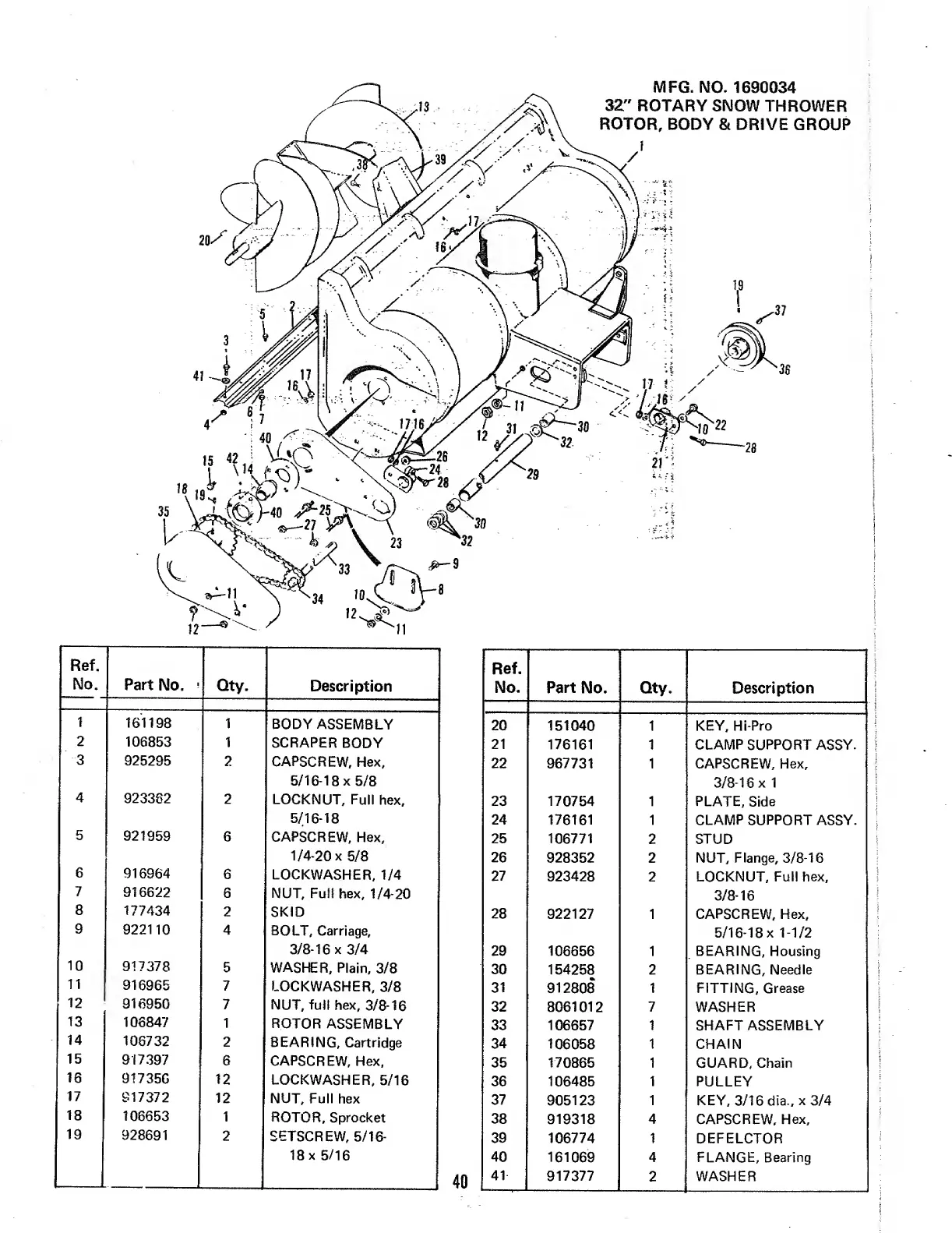

Simplicity Broadmoor 5008 - Page 42

Ref.
No.
Part No. 1
Qty.
Description
Ref.
No. Part No.
Qty. Description
1
161198 1
BODY ASSEMBLY
20
151040 1
KEY, Hi-Pro
2
106853
1
SCRAPER BODY
21
176161 1 CLAMP SUPPORT ASSY.
3
925295
2
CAPSCREW. Hex,
22
967731 1
CAPSCREW, Hex,
5/16-18 x 5/8
3/8-16 x 1
4
923362
2
LOCKNUT, Full hex,
23 170754 1 PLATE, Side
5/16-18
24
176161
1 CLAMP SUPPORT ASSY.
5
921959
6
CAPSCREW, Hex,
25
106771
2 STUD
1/4-20 x 5/8
26
928352 2 NUT, Flange, 3/8-16
6
916964
6
LOCKWASHER, 1/4
27
923428 2 LOCKNUT, Full hex.
7
916622
6
NUT, Full hex, 1/4-20
3/8-16
8
177434
2
SKID
28
922127 1
CAPSCREW, Hex,
9
922110 4
BOLT, Carriage,
5/16-18 x 1-1/2
3/8-16 x 3/4
29
106656 1
BEARING, Housing
10
917378
5
WASHER, Plain, 3/8
30
154258
2
BEARING, Needle
11
916965
7
LOCKWASHER, 3/8
31
912808
1
FITTING, Grease
12
916950
7
NUT, full hex, 3/8-16
32
8061012
7 WASHER
13
106847
1
ROTOR ASSEMBLY
33 106657 1 SHAFT ASSEMBLY
14
106732
2
BEARING, Cartridge
34
106058
1
CHAIN
15
917397
6
CAPSCREW, Hex,
35
170865 1
GUARD, Chain
16
91735G
12
LOCKWASHER, 5/16
36 106485 1
PULLEY
17
917372
12
NUT, Full hex
37
905123
1
KEY, 3/16 dia., x 3/4
18
106653
1
ROTOR, Sprocket
38
919318
4
CAPSCREW, Hex,
19
928691
2
SETSCREW, 5/16-
39
106774 1
DEFELCTOR
18 x 5/16
40
161069
4
FLANGE, Bearing
40
917377
2 WASHER
—
