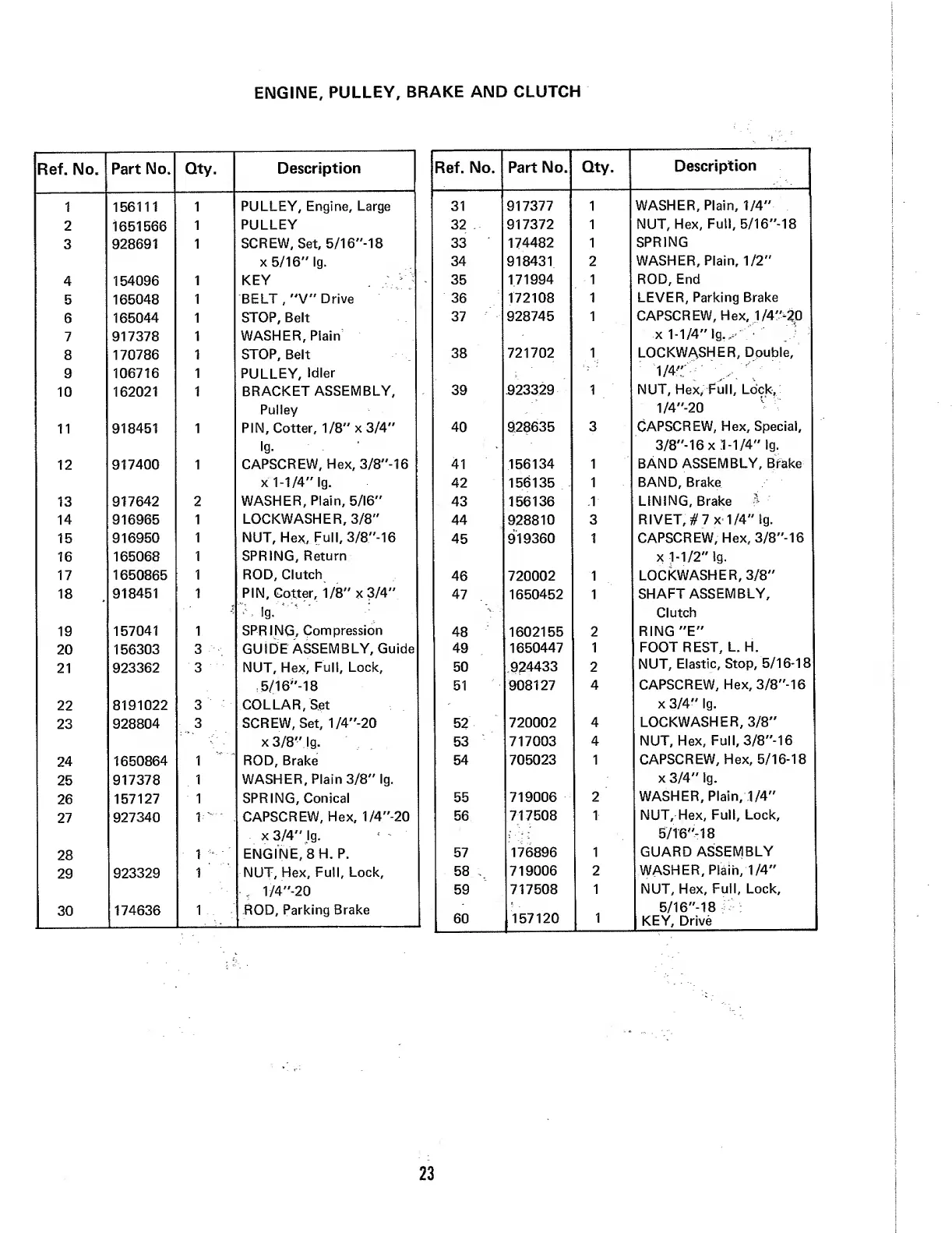

ENGINE, PULLEY, BRAKE AND CLUTCH
Ref. No.
Part No.
Qty.
Description Ref. No.
Part No.
Qty.
Description
1
156111
1
PULLEY, Engine, Large 31
917377 1
WASHER, Plain, 1/4"
2
1651566
1
PULLEY 32
917372 1
NUT, Hex, Full, 5/16"-18
3
928691
1
SCREW, Set, 5/16"-18
33
174482 1
SPRING
x 5/16" Ig.
34
918431
2
WASHER, Plain, 1/2"
4
154096
1
KEY . / > '•
35
171994 1
ROD, End
5
165048
1
BELT , "V" Drive
36 172108
1
LEVER, Parking Brake
6
165044 1
STOP, Belt
37
928745
1
CAPSCREW, Hex, 1/4"^20
7 917378
1
WASHER, Plain
x 1-1/4" Ig... * /
8
170786 1
STOP, Belt
38
721702
1
LOCKWASHER, Double,
9
106716 1 PULLEY, Idler
1/4" \
10
162021 1
BRACKET ASSEMBLY,
39
923329
1
NUT, Hex, Full, Lock,
Pulley
1/4"-20
11
918451
1
PIN, Cotter, 1/8" x 3/4"
40
928635
3
CAPSCREW, Hex, Special,
ig-
3/8"-16x 1-1/4" Ig.
12
917400 1
CAPSCREW, Hex, 3/8"-16 41
156134 1
BAND ASSEMBLY, Brake
x 1-1/4" Ig.
42 156135
1
BAND, Brake
13
917642
2
WASHER, Plain, 5/16"
43 156136
1
LINING, Brake
14 916965
1
LOCKWASHER, 3/8"
44 928810 3
RIVET,#7x 1/4" Ig.
15
916950
1
NUT, Hex, Full, 3/8"-16
45
919360 1
CAPSCREW, Hex, 3/8"-16
16
165068
1
SPRING, Return
x 1-1/2" Ig.
17 1650865
1
ROD, Clutch
46
720002 1
LOCKWASHER, 3/8"
18
918451 1
PIN, Cotter, 1/8" x 3/4"
47
1650452 1
SHAFT ASSEMBLY,
- • Ig. '
Clutch
19
157041
1
SPRING, Compression
48
1602155
2
RING "E"
20
156303
3
GUIDE ASSEMBLY, Guide
49
1650447 1
FOOT REST, L. H.
21
923362
3
NUT, Hex, Full, Lock,
50
924433
2
NUT, Elastic, Stop, 5/16-18
5/16"-18
51
908127
4
CAPSCREW, Hex, 3/8"-16
22
8191022
3
COLLAR, Set
x 3/4" Ig.
23
928804
3 SCREW, Set, 1/4"-20 52
720002
4
LOCKWASHER, 3/8"
x 3/8" Ig.
53
717003
4
NUT, Hex, Full, 3/8"-16
24
1650864 1
ROD, Brake
54
705023 1
CAPSCREW, Hex, 5/16-18
25
917378
. 1
WASHER, Plain 3/8" Ig.
x 3/4" Ig.
26
157127
1
SPRING, Conical
55
719006
2
WASHER, Plain, 1/4"
27
927340
1 ' '
CAPSCREW, Hex, 1/4"-20
56
717508
1
NUT, Hex, Full, Lock,
x 3/4" Ig.
5/16"-18
28
1 '•
ENGINE, 8 H. P.
57
176896 1
GUARD ASSEMBLY
29
923329
1 ’
NUT, Hex, Full, Lock,
58
719006 2
WASHER, Plain, 1/4"
, 1/4"-20
59
717508
1
NUT, Hex, Full, Lock,
30
174636
1
ROD, Parking Brake
60 157120
1
5/16"-18
KEY, Drive
23
