Simplicity Broadmoor 5008 - Page 27

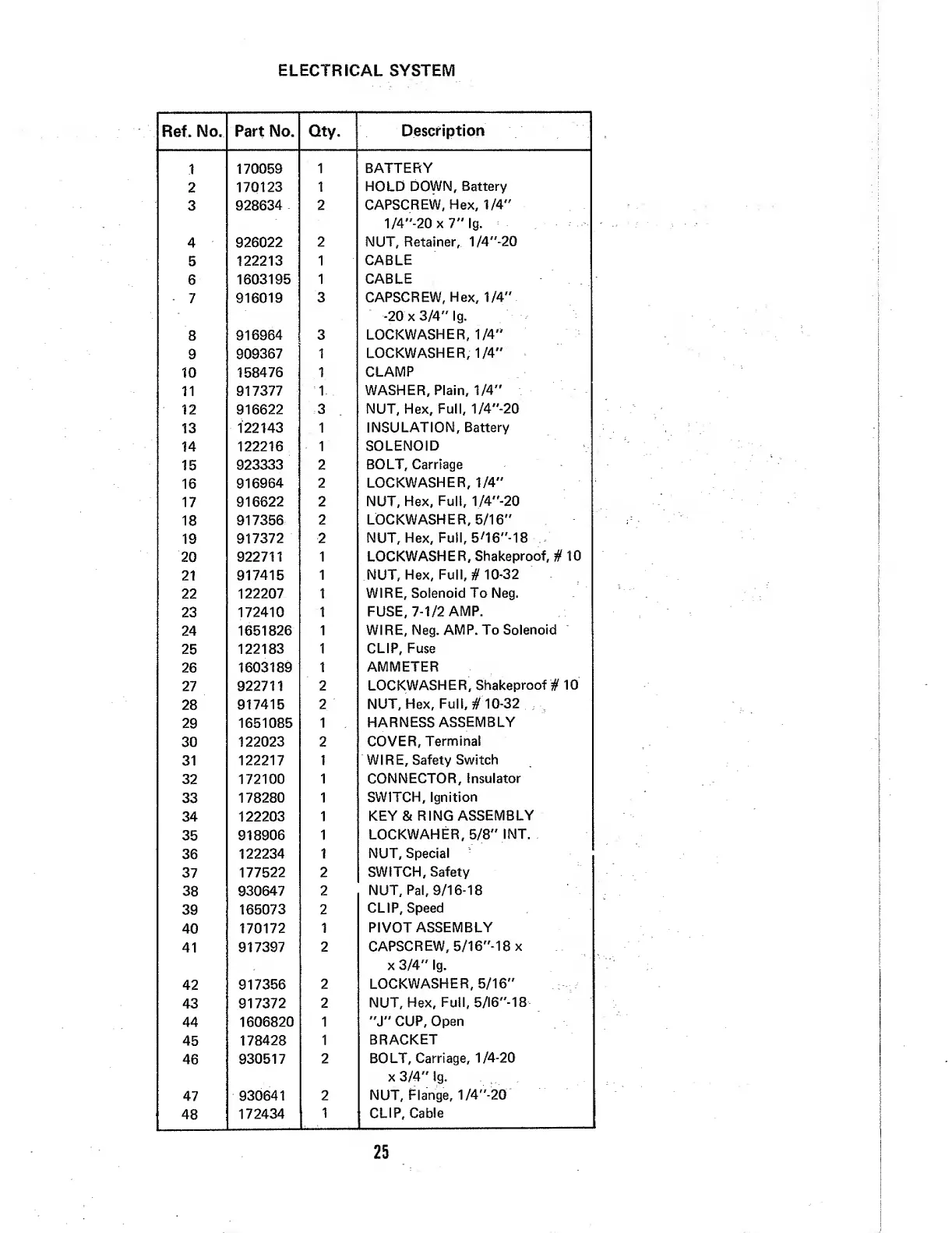

ELECTRICAL SYSTEM
if. No.
Part No. Qty.
Description
1
170059
1
BATTERY
170123 1
HOLD DOWN, Battery
928634
CAPSCREW, Hex, 1/4"
1/4"-20 x 7" Ig.
926022
NUT, Retainer, 1/4"-20
122213 1
CABLE
1603195
1
CABLE
916019
CAPSCREW, Hex, 1/4"
-20 x 3/4" Ig.
8
916964
LOCKWASHER, 1/4"
9
909367 1
LOCKWASHER, 1/4"
10
158476 1
CLAMP
11
917377 1
WASHER, Plain, 1/4"
12
916622
3
NUT, Hex, Full, 1/4"-20
13
122143 1
INSULATION, Battery
14
122216 1
SOLENOID
15
923333
BOLT, Carriage
16
916964
LOCKWASHER, 1/4"
17
916622
NUT, Hex, Full, 1/4"-20
18
917356
LOCKWASHER, 5/16"
19
917372
NUT, Hex, Full, 5'16"-18
20
922711
! 1
LOCKWASHER, Shakeproof, # 10
21
917415
! 1
NUT, Hex, Full, if 10-32
22
122207 1
WIRE, Solenoid To Neg.
23
172410 , 1
FUSE, 7-1/2 AMP.
24
1651826 1
WIRE, Neg. AMP. To Solenoid
25
122183 1
CLIP, Fuse
26
1603189
1
AMMETER
27
922711
LOCKWASHER, Shakeproof # 10
28
917415
NUT, Hex, Full, #10-32
29
1651085
1
HARNESS ASSEMBLY
30
122023
2
COVER, Terminal
31
122217
1
WIRE, Safety Switch
32
172100
1
CONNECTOR, Insulator
33
178280 1
SWITCH, Ignition
34
122203 1
KEY & RING ASSEMBLY
35
918906
1
LOCKWAHER, 5/8" 1 NT.
36
122234 1
NUT, Special
37
177522 2
SWITCH, Safety
38
930647
2 NUT, Pal, 9/16-18
39
165073
2
CLIP, Speed
40
170172
1
PIVOT ASSEMBLY
41
917397
2
CAPSCREW, 5/16"-18 x
x 3/4" Ig.
42
917356
2
LOCKWASHER, 5/16"
43
917372
2
NUT, Hex, Full, 5/l6"-18
44
1606820 1
"J" CUP, Open
45
178428
1
BRACKET
46
930517
2
BOLT, Carriage, 1/4-20
x 3/4" Ig.
47
930641
2
NUT, Flange, 1/4"-20
48
172434
1
CLIP, Cable
