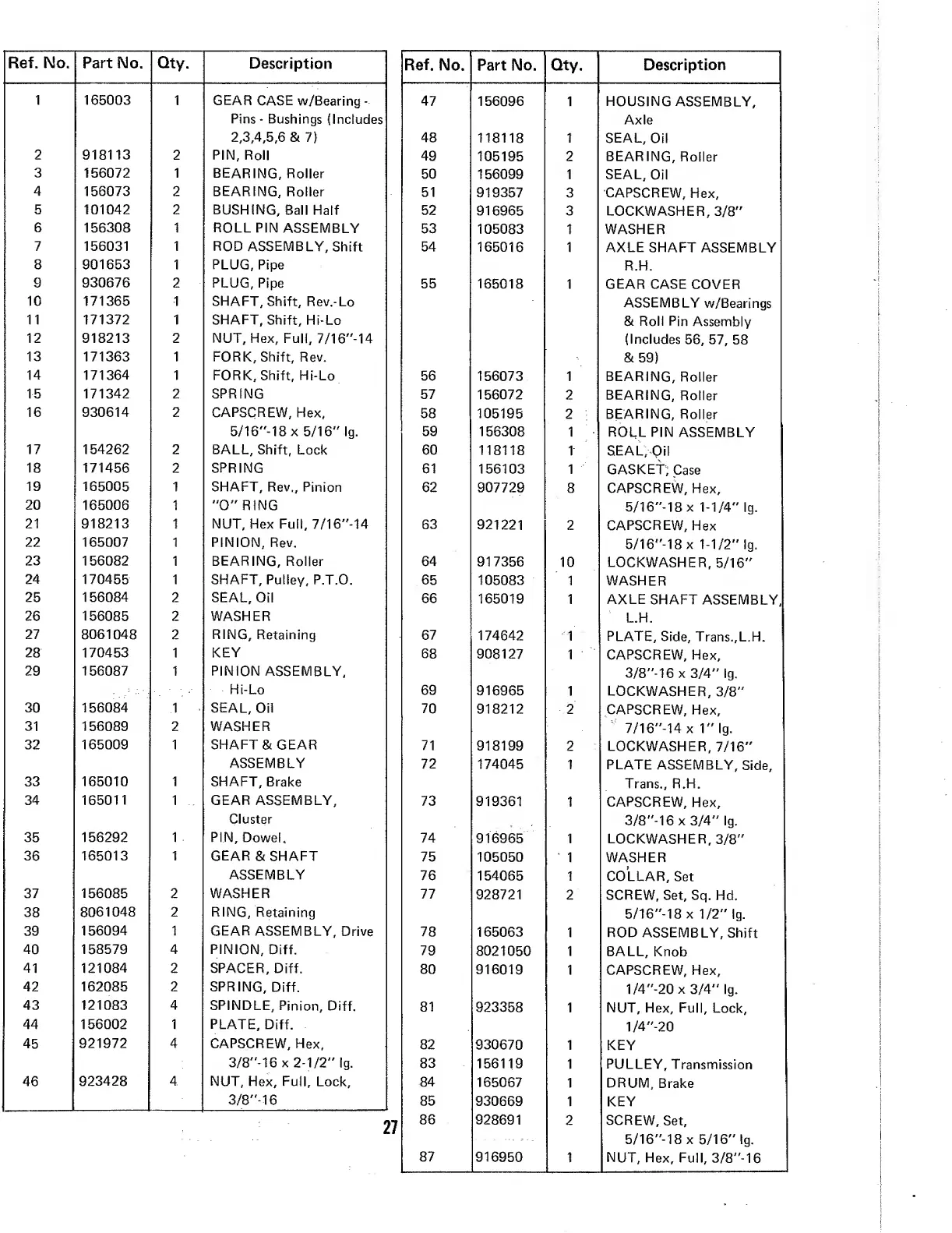

Simplicity Broadmoor 5008 - Page 29

Ref. No.
Part No.
Qty.
Description
1 165003
1
GEAR CASE w/Bearing -
Pins - Bushings (Includes
2,3,4,5,6 & 7)
2 918113 2
PIN, Roll
3
156072 1
BEARING, Roller
4 156073
2
BEARING, Roller
5 101042 2
BUSHING, Ball Half
6
156308 1
ROLL PIN ASSEMBLY
7 156031 1
ROD ASSEMBLY, Shift
8
901653
1 PLUG, Pipe
9
930676
2
PLUG, Pipe
10 171365
1
SHAFT, Shift, Rev.-Lo
11 171372 1
SHAFT, Shift, Hi-Lo
12 918213 2
NUT, Hex, Full, 7/16"-14
13
171363 1
FORK, Shift, Rev.
14 171364
1
FORK, Shift, Hi-Lo
15 171342 2
SPRING
16
930614
2
CAPSCREW, Hex,
5/16"-18 x 5/16" Ig.
17 154262 2
BALL, Shift, Lock
18 171456 2
SPRING
19
165005 1 SHAFT, Rev., Pinion
20
165006 1
"O" RING
21
918213
1 NUT, Hex Full, 7/16"-14
22 165007 1
PINION, Rev.
23
156082
1
BEARING, Roller
24
170455 1
SHAFT, Pulley, P.T.O.
25
156084
2 SEAL, Oil
26
156085
2 WASHER
27
8061048 2 RING, Retaining
28
170453
1
KEY
29
156087
1 PINION ASSEMBLY,
Hi-Lo
30
156084
1 ■
SEAL, Oil
31
156089 2 WASHER
32 165009 1 SHAFT & GEAR
ASSEMBLY
33 165010 1
SHAFT, Brake
34
165011 1 GEAR ASSEMBLY,
Cluster
35
156292 1
PIN, Dowel.
36
165013 1
GEAR & SHAFT
ASSEMBLY
37 156085 2 WASHER
38
8061048 2
RING, Retaining
39
156094
1
GEAR ASSEMBLY, Drive
40 158579
4
PINION, Diff.
41 121084
2 SPACER, Diff.
42 162085 2
SPRING, Diff.
43 121083 4
SPINDLE, Pinion, Diff.
44 156002 1 PLATE, Diff.
45
921972 4
CAPSCREW, Hex,
3/8"-16 x 2-1/2” Ig.
46 923428
4
NUT, Hex, Full, Lock,
3/8"-16
27
Ref. No.
Part No.
Qty.
Description
47 156096
1 HOUSING ASSEMBLY,
Axle
48
118118
1 SEAL, Oil
49
105195
2
BEARING, Roller
50
156099 1 SEAL, Oil
51
919357
CAPSCREW, Hex,
52
916965
LOCKWASHER, 3/8"
53
105083
1 WASHER
54
165016 1
AXLE SHAFT ASSEMBLY
R.H.
55
165018
1 GEAR CASE COVER
ASSEMBLY w/Bearings
& Roll Pin Assembly
(Includes 56, 57, 58
& 59)
56
156073
1
BEARING, Roller
57
156072
2
BEARING, Roller
58
105195
2 ; BEARING, Roller
59
156308 1
ROLL PIN ASSEMBLY
60
118118
1
SEAL, Oil
61
156103
1
GASKET, Case
62
907729
8
CAPSCREW, Hex,
5/16"-18 x 1-1/4" Ig.
63
921221
2
CAPSCREW, Hex
5/16"-18 x 1-1/2" Ig.
64
917356
10
LOCKWASHER, 5/16"
65 105083
1
WASHER
66
165019
1
AXLE SHAFT ASSEMBLY,
L.H.
67
174642
1
PLATE, Side, Trans.,L.H.
68
908127
1
CAPSCREW, Hex,
3/8"-16 x 3/4" ig.
69
916965
1
LOCKWASHER, 3/8"
70
918212
2
CAPSCREW, Hex,
' 7/16"-14 x 1" Ig.
71
918199 2
LOCKWASHER, 7/16”
72
174045
1
PLATE ASSEMBLY, Side,
Trans., R.H.
73
919361
1
CAPSCREW, Hex,
3/8"-16 x 3/4" Ig.
74
916965 1
LOCKWASHER, 3/8"
75
105050
1 WASHER
76
154065 1
COLLAR, Set
77
928721
2
SCREW, Set, Sq. Hd.
5/16"-18 x 1/2" Ig.
78 165063
1
ROD ASSEMBLY, Shift
79
8021050 1
BALL, Knob
80
916019
1
CAPSCREW, Hex,
1/4"-20 x 3/4" Ig.
81
923358
1
NUT, Hex, Full, Lock,
1/4"-20
82
930670 1
KEY
83
156119
1
PULLEY, Transmission
84
165067
1 DRUM, Brake
85
930669 1 KEY
86
928691
2
SCREW, Set,
5/16"-18 x 5/16" Ig.
87
916950
1
NUT, Hex, Full, 3/8"-16
