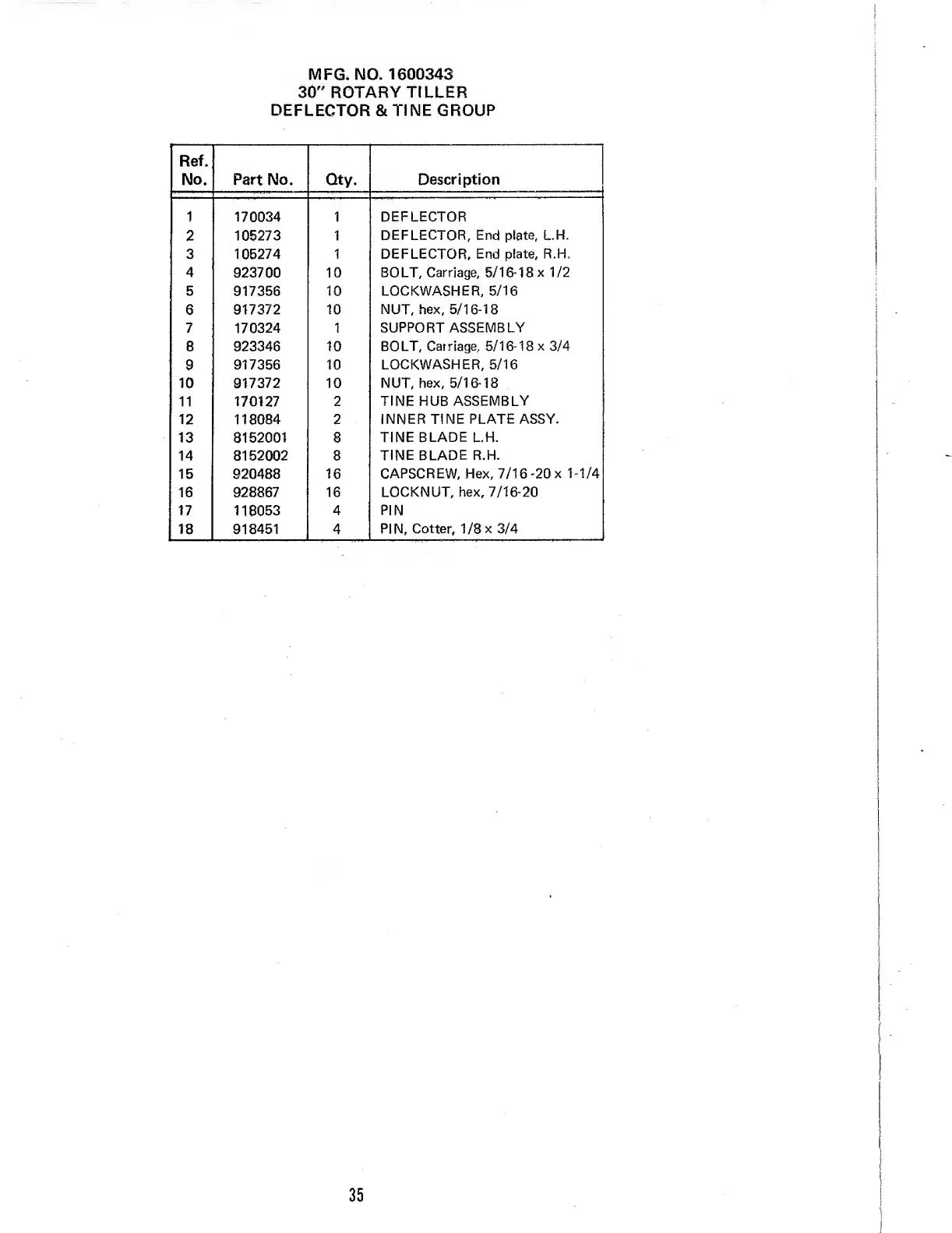

MFG, NO, 1600343
30" ROTARY TILLER
DEFLECTOR & TINE GROUP
Ref.
No.
Part No.
Qty,
Description
1 170034 1 DEFLECTOR
105273 1
DEFLECTOR, End plate, L.H.
105274
■■
DEFLECTOR, End plate, R.H.
923700
mM
BOLT, Carriage, 5/16-18 x 1/2
5
917356
99
LOCKWASHER, 5/16
6
917372 10 NUT, hex, 5/16-18
7 170324 i
SUPPORT ASSEMBLY
8 923346 10
BOLT, Carriage, 5/16-18x3/4
9
917356 10
LOCKWASHER, 5/16
10
917372 10
NUT, hex, 5/16-18
11 170127
2
TINE HUB ASSEMBLY
12
118084 2
INNER TINE PLATE ASSY.
13 8152001 8
TINE BLADE LH.
14 8152002 8
TINE BLADE R.H.
15
920488
16
CAPSCREW, Hex, 7/16-20 x 11/4
16
928867 16
LOCKNUT, hex, 7/16-20
17 118053
4
PIN
18 918451
4
PIN, Cotter, l/8x 3/4
, , __ ■ ___ . ...... .
35
