Simplicity Broadmoor 5008 - Page 39

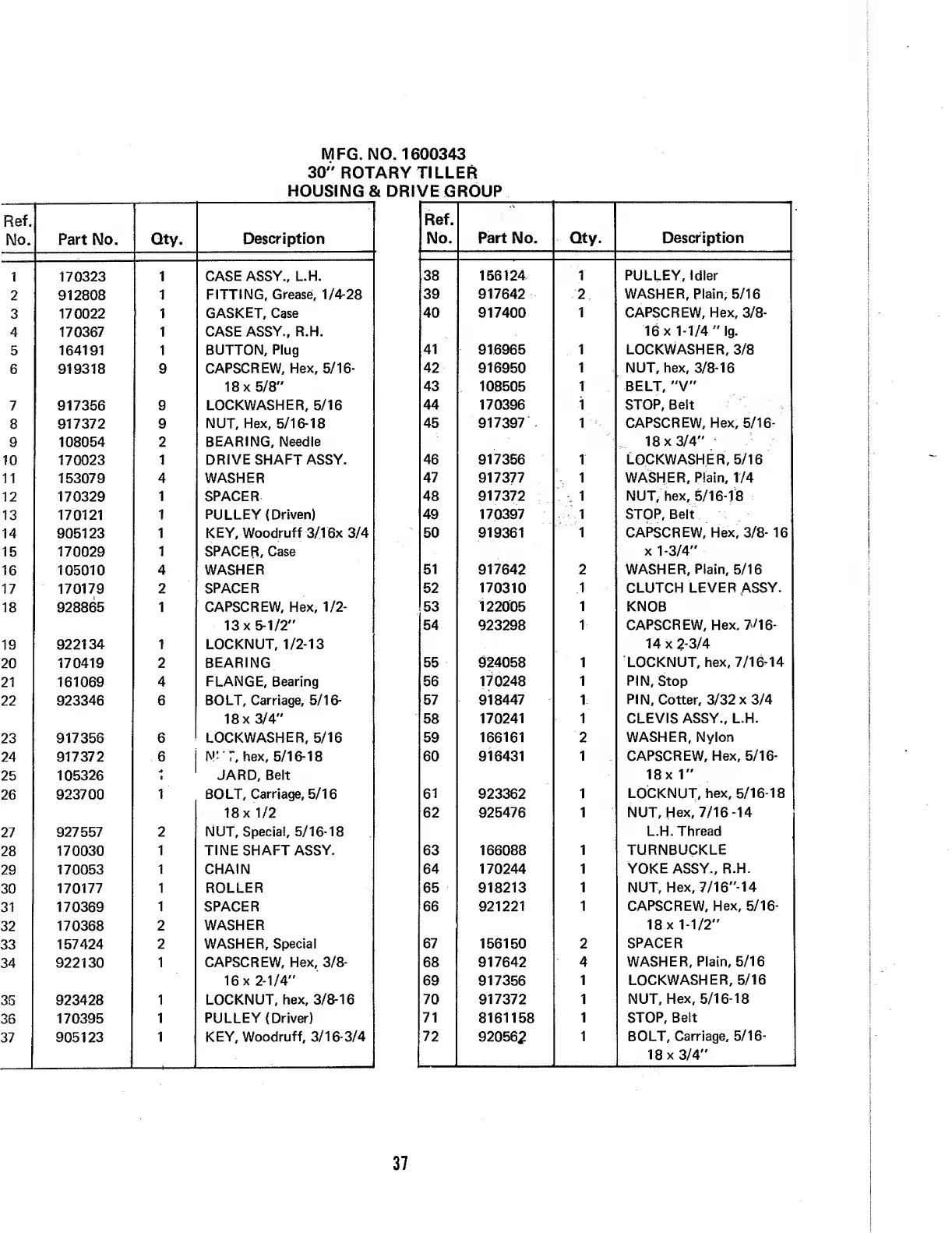

MFG.NO. 1600343
30" ROTARY TILLER
HOUSING & DRIVE GROUP
Ref.
No. Part No.
Gty.
Description
Ref.
No. Part No.
Qty.
Description
1 170323
1
CASE ASSY., L.H.
38
156124 1 PULLEY, Idler
2 912808
1
FITTING, Grease, 1/4-28
39 917642 2
WASHER, Plain, 5/16
3
170022
1
GASKET, Case 40
917400
1
CAPSCREW, Hex, 3/8-
4 170367
1
CASE ASSY., R.H.
16 x 1-1/4" Ig.
5
164191 1
BUTTON, Plug
41 916965 1
LOCKWASHER, 3/8
6
919318 9
CAPSCREW, Hex, 5/16-
42
916950
1 NUT, hex, 3/8-16
18 x 5/8"
43
108505
1 BELT, "V"
7 917356
9
LOCKWASHER, 5/16
44 170396 i STOP, Belt
8
917372 9
NUT, Hex, 5/16-18
45
917397 .
i CAPSCREW, Hex, 5/16-
9
108054 2
BEARING, Needle
18x3/4"
10
170023
1
DRIVE SHAFT ASSY. 46 917356 r
LOCKWASHER, 5/16
11
153079
4
WASHER
47
917377 , i
WASHER, Plain, 1/4
12
170329
1 SPACER 48
917372
\ i
NUT, hex, 5/16-18
13
170121
1 PULLEY (Driven) 49
170397 i STOP, Belt
14 905123
1
KEY, Woodruff 3/16x3/4 50 919361
i CAPSCREW, Hex, 3/8- 16
15 170029
1 SPACER, Case
x 1-3/4"
16 105010
4
WASHER 51
917642
2
WASHER, Plain, 5/16
17
170179
2
SPACER 52
170310
1
CLUTCH LEVER ASSY.
18
928865 1
CAPSCREW, Hex, 1/2-
53 122005
1
KNOB
13x5-1/2"
54
923298
1
CAPSCREW, Hex. 7716-
19
922134 1
LOCKNUT, 1/2-13
14x2-3/4
170419
2 BEARING
55 924058
1
LOCKNUT, hex, 7/16-14
21 161069
4
FLANGE, Bearing 56 170248
1 PIN, Stop
22 923346
6
BOLT, Carriage, 5/16-
57 918447 1
PIN, Cotter, 3/32 x 3/4
18 x 3/4" 58
170241 1
CLEVIS ASSY., L.H.
23
917356
6
LOCKWASHER, 5/16
59 166161
2
WASHER, Nylon
24 917372 . 6
N’ T, hex, 5/16-18 60 916431
1
CAPSCREW, Hex, 5/16-
25 105326
<t \
I
JARD, Belt
18 x 1"
26 923700
1 BOLT, Carriage, 5/16 61 923362
1
LOCKNUT, hex, 5/16-18
18x1/2
62 925476
1
NUT, Hex, 7/16-14
27
927557
2 NUT, Special, 5/16-18
L.H. Thread
28
170030
1 TINE SHAFT ASSY. 63 166088
1
TURNBUCKLE
29
170053
1 CHAIN
64
170244
1
YOKE ASSY., R.H.
30
170177
1
ROLLER 65 918213
1
NUT, Hex, 7/16"-14
31 170369
1 SPACER 66 921221
1
CAPSCREW, Hex, 5/16-
32
170368
2
WASHER
18 x 1-1/2"
33
157424
2
WASHER, Special 67
156150
2
SPACER
34 922130
1 CAPSCREW, Hex, 3/8- 68 917642
4
WASHER, Plain, 5/16
16 x 2-1/4" 69 917356
1
LOCKWASHER, 5/16
35
923428
1 LOCKNUT, hex, 3/8-16
70 917372
1
NUT, Hex, 5/16-18
36
170395
1
PULLEY (Driver)
71
8161158
1 STOP, Belt
37 905123
1
KEY, Woodruff, 3/16-3/4 72
920562
1
BOLT, Carriage, 5/16-
18 x 3/4"
37
