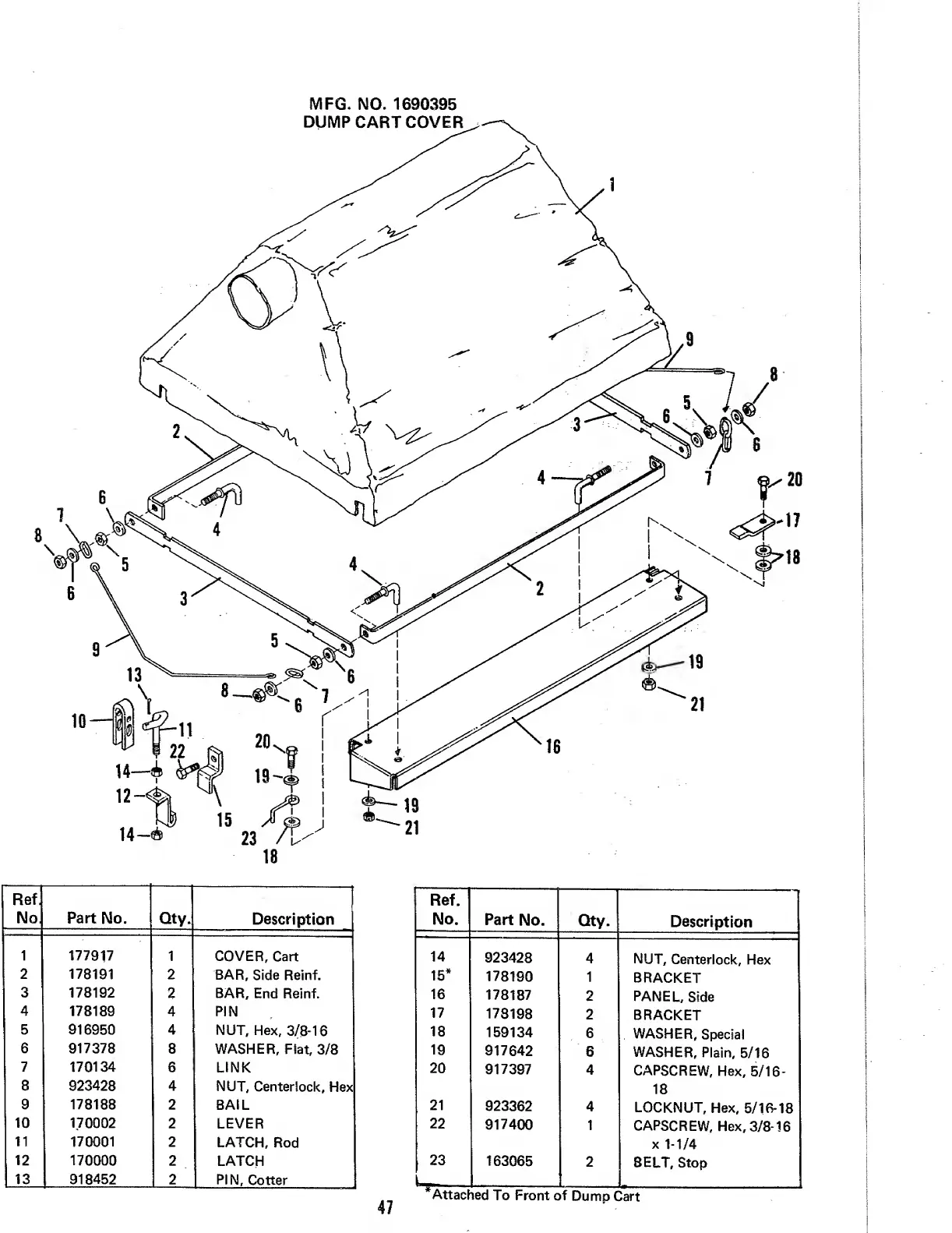

Part No. j Qty.Description
1 177917 1 COVER, Cart
2 178191 2 BAR, Side Reinf.
3 178192 2 BAR, End Reinf.
4 178189 4 PIN
5 916950 4 NUT, Hex, 3/8-16
6 917378 8 WASHER, Flat, 3/8
7 170134 6 LINK
8 923428 4 NUT, Centerlock, Hex
9 178188 2 BAIL
10 170002 2 LEVER
11 170001 2 LATCH, Rod
12 170000 2 LATCH
13 918452 2 PIN, Cotter
Ref.
No. Part No. Qty. Description
14 923428 4 NUT, Centerlock, Hex
15* 178190 1 BRACKET
16 1 78187 2 PANEL, Side
17 178198 2 BRACKET
18 159134 6 WASHER, Special
19 917642 6 WASHER, Plain, 5/16
20 917397 4 CAPSCREW, Hex, 5/16-
18
21 923362 4 LOCKNUT, Hex, 5/16-18
22 917400 1 CAPSCREW, Hex, 3/8-16
x 1-1/4
23 163065 2 BELT, Stop
Attached To Front of Dump Cart
47
