FINISHED SURFACE*
OPENING OF
APPLIANCE
*MAX FINISHING MATERIAL
THICKNESS
WITH FRONT FINISHING TRIM:
5/8 in. (16 mm)
WITHOUT FRONT FINISHING TRIM:
NO MAX
FINISHED SURFACE*

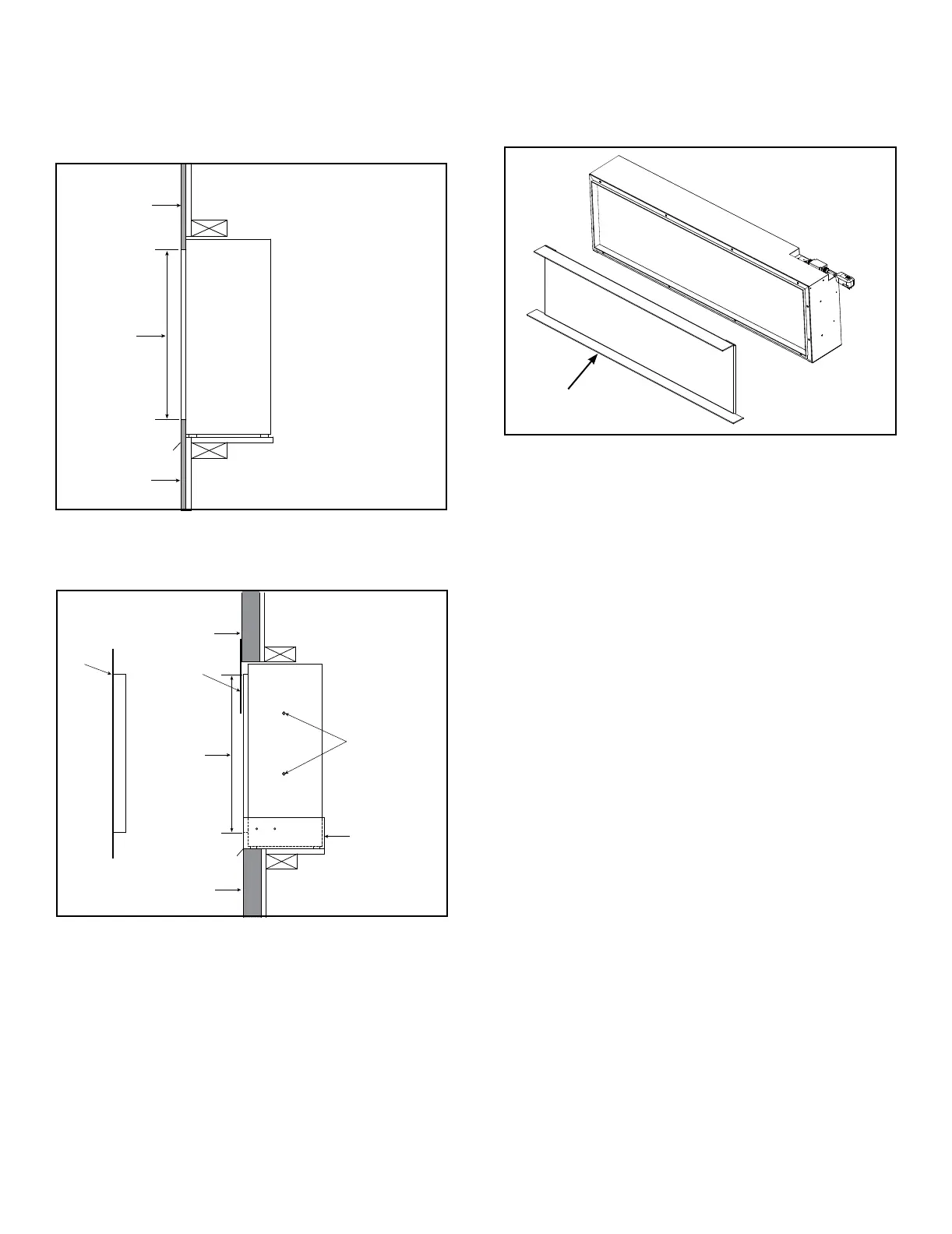

Figure 4.7 Finishing Around a Permanent Built-in
FINISHED SURFACE*
FINISHED SURFACE*
OPENING OF
APPLIANCE
FLASHING AND/OR
OPTIONAL DRAINAGE PAN
FINISH TRIM
MOUNTING HOLES MUST BE
USED WITH THE PROVIDED
RUBBER BUSHINGS AND
WASHERS TO ATTACH TO
FRAMING TO MAINTAIN
INGRESS PROTECTION.
APPLIANCE SHOULD
BE PLACED INTO THE
FINISHED OPENING
UNTIL THE OUTER
EDGE OF THE FINISH-
ING STOPS ARE FLUSH
WITH THE FINISHED
SURFACE.
*MAX FINISHING MATERIAL
THICKNESS; 2-1/4 in. (57 mm)
Figure 4.8 Finishing Around a Recessed Appliance
E. Finishing
Maximum nishing differ between built-in overlap and
recessed installations. Refer to Figure 4.7 and 4.8.
SPLATTER GUARD
Figure 4.9
Built-In Overlap Installations
Recessed Installations
A corrugated splatter guard is included as part of the
packaging of the Forum. This may be used to mask the
viewing area during the nishing steps of the installation.
See Figure 4.9.
