SimpliFire SF-OD43 - Appliance Weights and Dimensions

SimpliFire • SF-OD43, SF-OD55 • 2047-980 Rev. C • 5/23
8

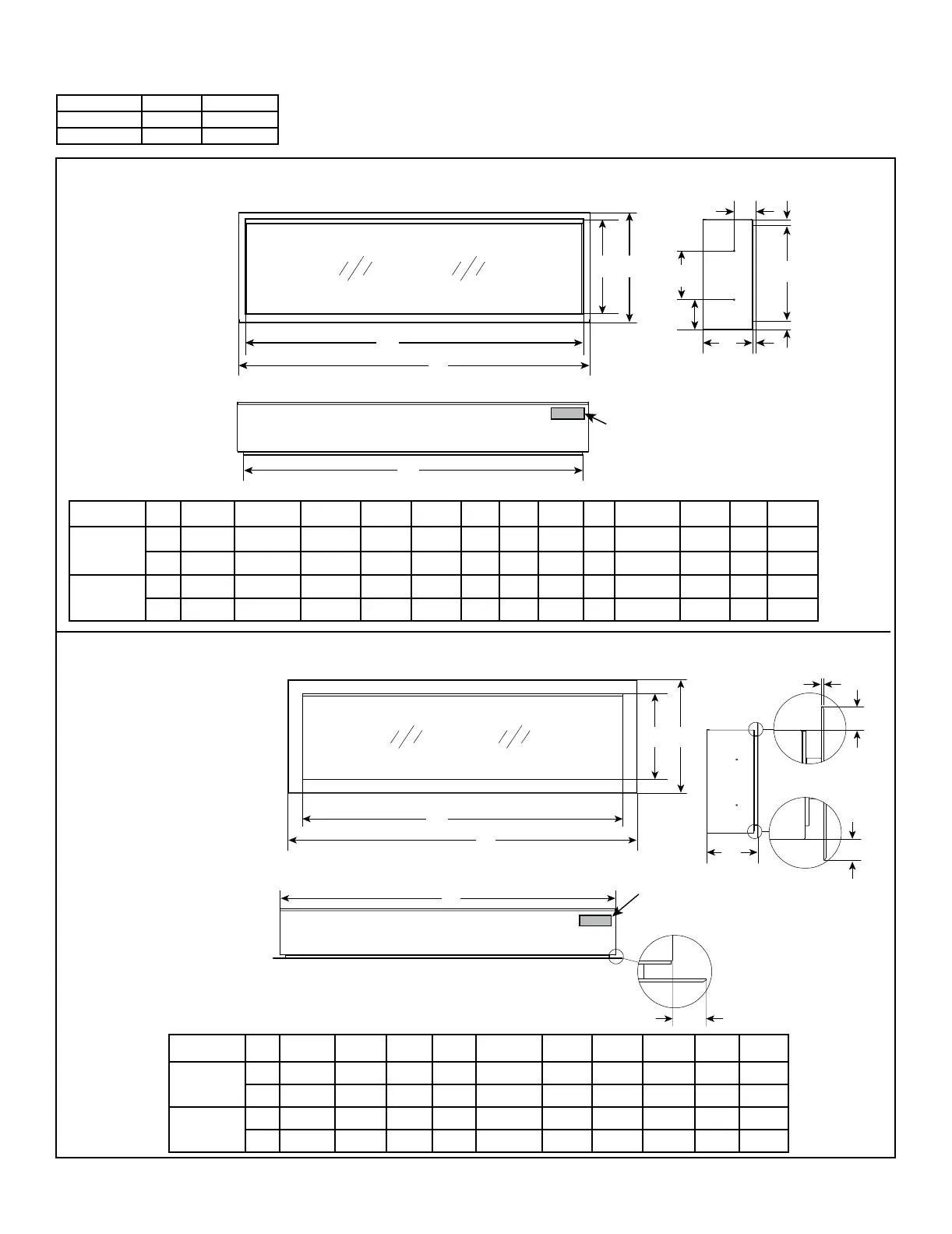

Figure 3.1 Appliance Dimensions
C. Appliance Weights and Dimensions
A
B
E
C
D
I
H
F
J
G
ELECTRICAL WIRING LOCATION - TOP RIGHT
NOTE: Wire strain relief supplied by electrician
when hardwiring.
APPLIANCE WITHOUT FRONT TRIM
APPLIANCE WITH FRONT TRIM
Model A B C D E F G H I J
SF-OD43
in.
43 48 15 20 46 1-1/8 1/8 1-1/8 3/4 8-3/4
mm 1092 1219 380 507 1168 29 3 29 19 223
SF-OD55
in.
55 60 15 20 58 1-1/8 1/8 1-1/8 3/4 8-3/4
mm 1397 1523 380 507 1473 29 3 29 19 223
Model A B C D E F G H I J K L M
SF-OD43
in.
43-1/2 46 15-3/8 18-1/8 43-3/4 8 5 3-3/4 1 15-3/4 1-3/8 1/2 8-1/4
mm
1104 1168 392 460 1110 203 127 95 25 400 36 13 210
SF-OD55
in.
55-1/2 58 15-3/8 18-1/8 55-3/4 8 5 3-3/4 1 15-3/4 1-3/8 1/2 8-1/4
mm 1409 1473 392 460 1415 203 127 95 25 400 36 13 210
Model Pounds Killigrams
SF-OD43 110 50
SF-OD55 132 60
F
G
H
A
B
C
D
E
K
J
I
L
M
ELECTRICAL WIRING LOCATION - TOP RIGHT
NOTE: Wire strain relief supplied by electrician
when hardwiring.

