15
SimpliFire • SF-OD43, SF-OD55 • 2047-980 Rev. C • 5/23
G. Appliance Final Setup
Glass Removal:
Refer to Section 4.B.

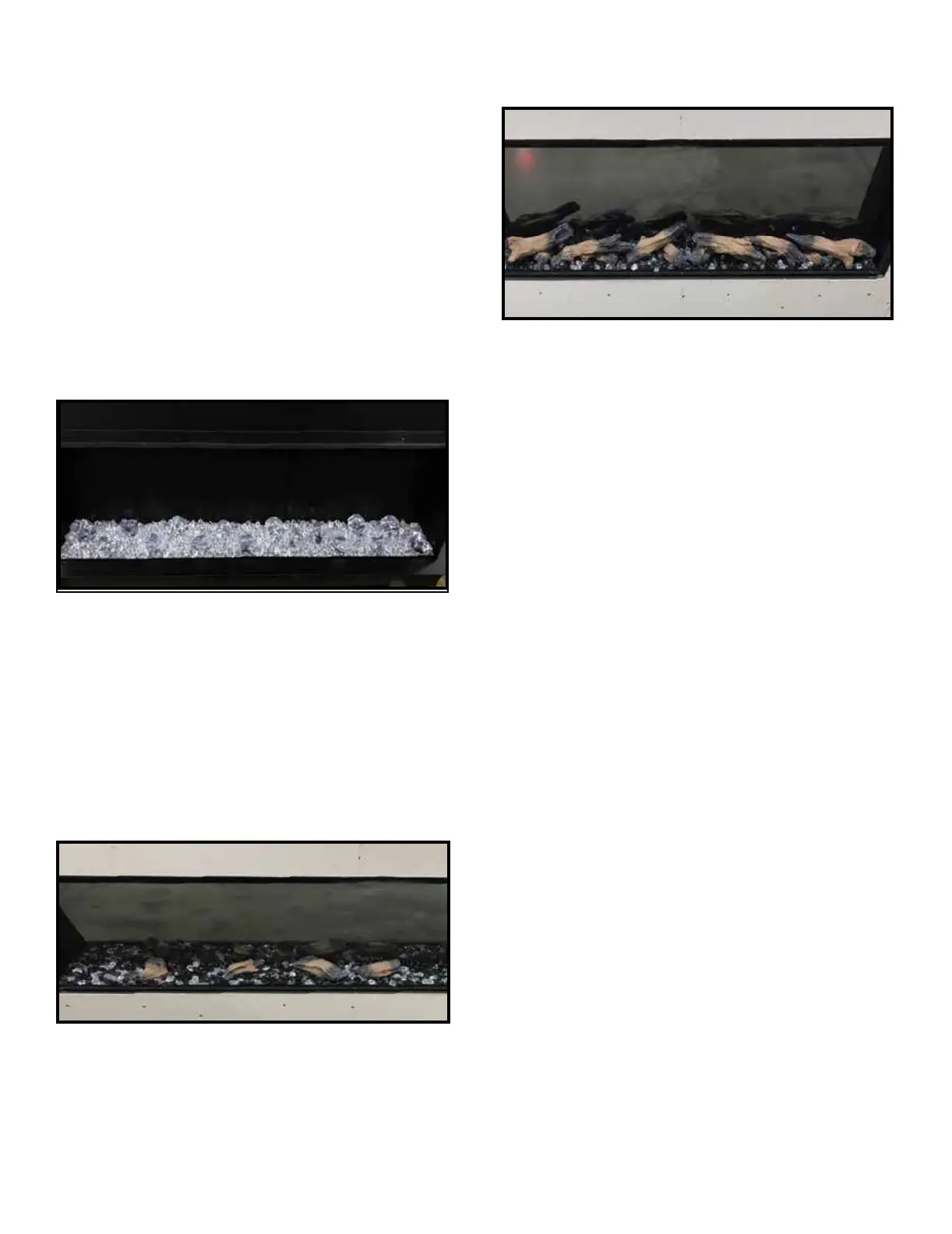

Figure 4.12 Media and Small Logs Installation
Log Media Placement:
1. Evenly spread the black embers and clear small
crystals across the ember bed. The black embers
provide a more realistic ember look with the logs.
Clear crystals can be mixed in if desired. Adjust-
ments can be made for your individual preference.
2. Place the smaller logs evenly spaced on the ember
bed as shown in Figure 4.12.
Media Placement:
Note: There are no specic requirements for media in-
stallation. Crystal and log media are included, but not re-
quired. The placement instructions provided are the most
popular congurations to display the included media.
Clear Crystal Media Placement:
Carefully spread the small clear crystals across the
ember bed. Then evenly arrange the large crystals on
top of or within the small crystal media. See Figure 4.11.
Figure 4.11 Media Installation
3. Arrange the larger logs so that one end rests on top
of a smaller log. Refer to Figure 4.13 as an example.
Figure 4.13 Larger Log Installation
Glass Installation:
1. Use the provided suction cup to set the bottom
edge of glass into the glass channel and tip back
into the appliance until it rests against the glass
stops. Do not rely on the suction cup for lifting of
the glass!
2. Secure the glass in place by attaching the glass re-
taining bracket to the appliance using the supplied
Phillips screws. Refer to Appliance Preparation Sec-
tion 4.B and gure showing glass removal.
To Next Page
