WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing the appliance. Wiring errors
can cause improper and dangerous operation. Verify
proper operation after servicing.
Note: The appliance must be connected and
grounded in accordance with local codes and /
or the current ANSI/NFPA 70 National Electric
Code or CSA C22.1 Canadian Electrical Code.
This Appliance ships with a GFCI protected power cord
installed. The power cord may be removed from the
junction box enclosure for use with hardwired applica-
tions.
For hardwired installations, a minimum 15 AMP,
120V/60Hz Ground Fault Interupter (GFCI) circuit is
required outdoor only.
Hard Wire Installation:
1. Remove the terminal block housing on the right top
end of the appliance, by removing two phillips
screws. On the underside of the terminal block hous-
ing remove the two remaining phillips screws attach-
ing the cover plate to the housing. See Figure 4.10.
2. Loosen the cord grip on the power cord side of the
housing.
3. Use a 3/32 slotted screwdriver or equivalent
or depress the spring loaded terminals to remove the
power cord.
4. Terminate type NM-B wire to the terminal
block, ensure connections are secure, and tighten
the cord grip. Use 3/32 slotted head screwdriver,
or equivalent, to depress the spring-loaded terminals
for the conductors.
5. Replace terminal block housing and cover plate with
retaining screws.

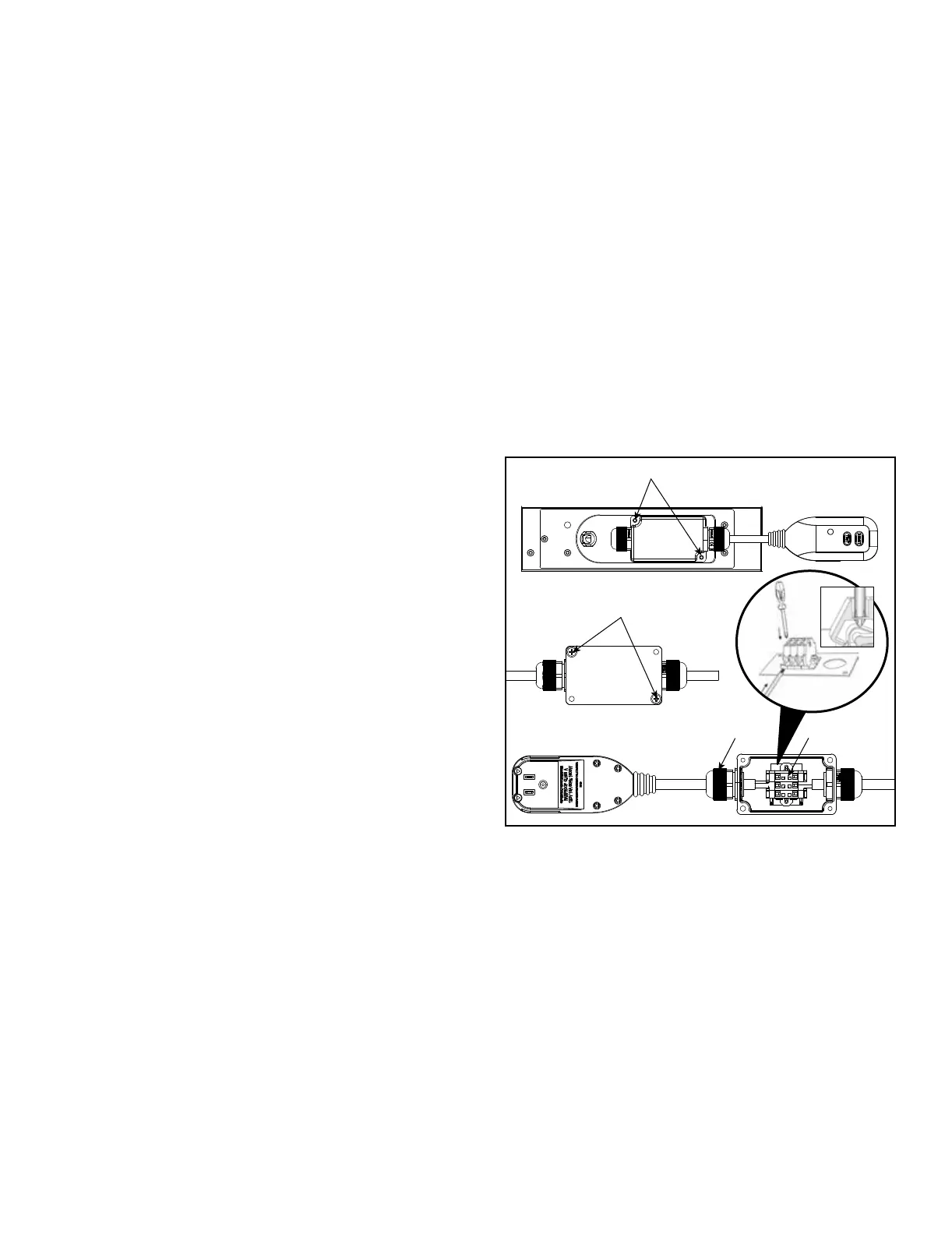

Figure 4.10
PHILLIPS SCREWS
COVER PLATE SCREWS
CORD GRIP
TERMINAL
BLOCK
F. Electrical Connection / Installation
Note: All wiring must be completed prior to nishing
the appliance.
All electrical connections shall be performed by a
qualied electrician.
WARNING! Risk of Fire, Electrical Shock and Injury!
Electrical wiring must comply with local building codes
and other applicable regulations.
