SimPure T1 - Page 9

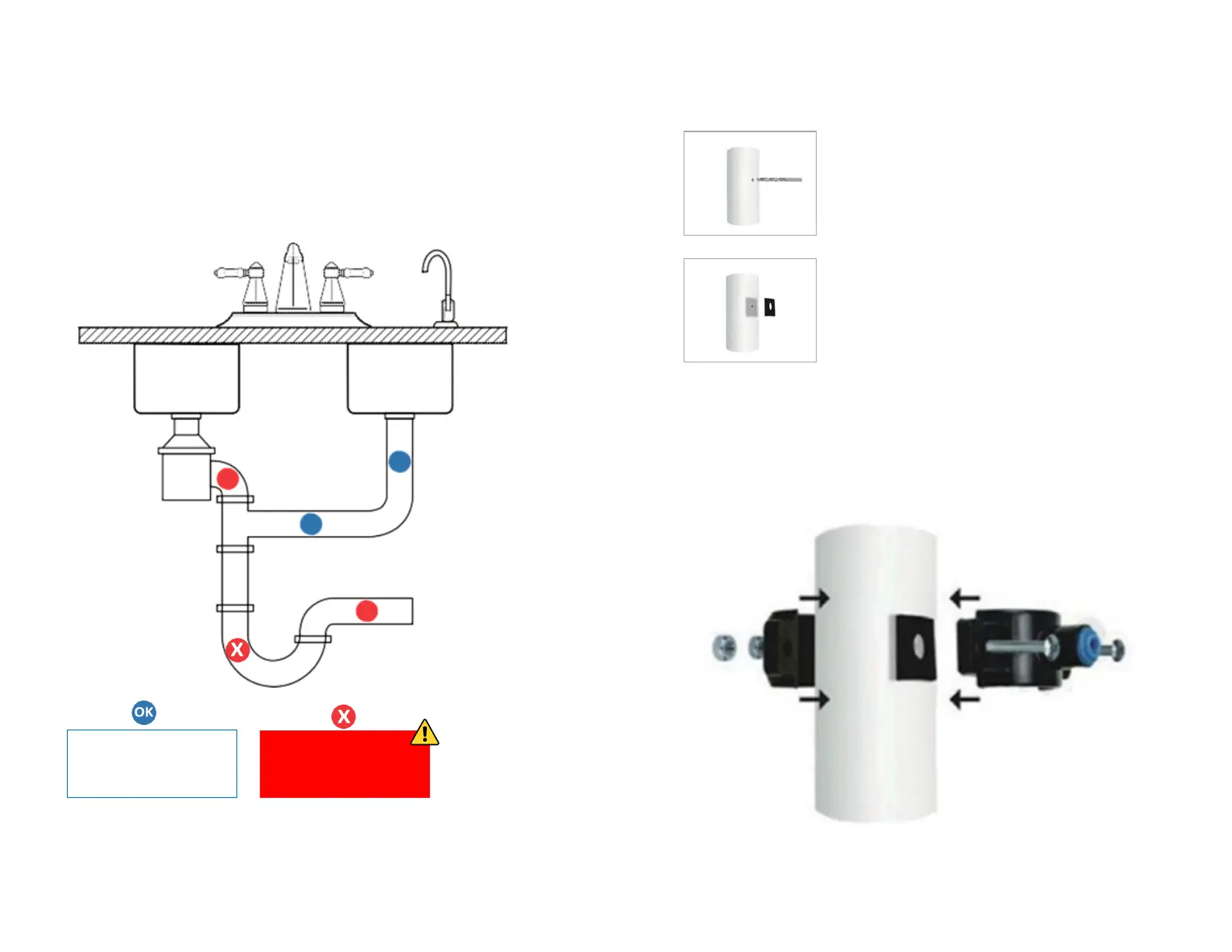

• Install the saddle valve drain connection
The
SimPure
®
T1 Water Purification system requires a drain connection
before it can be used. If installing the product under a sink
, make sure
you connect the drain to a straight piece of pipe and make sure it is
BEFORE the
water trap (‘P’ trap or ‘U’ bend) see diagram below.
Drill a ¼
” (6.5mm) hole on the drainpipe
with
an electric drill.
Remove the backing and stick
the saddle
valve seal on the pipe, line up the holes
.
Assemble the drain saddle
valve according to the picture below and
tighten the
bolts evenly with the cross-head screwdriver to allow the
clap to fit snuggly around the pipe (Do Not Overtighten)
. Once secure,
you can insert the PE tube into the
saddle valve QC fitting.
13
14
WARNING!
Never mount drain
saddle on bends or
below the water trap!
INSTALLATION
Only install saddle
valve on straight pipe
above any water traps!
X
X
Water trap
OK
OK
Garbage
Disposal
P Trap
