Introduction | AP70/AP80 Installation Manual

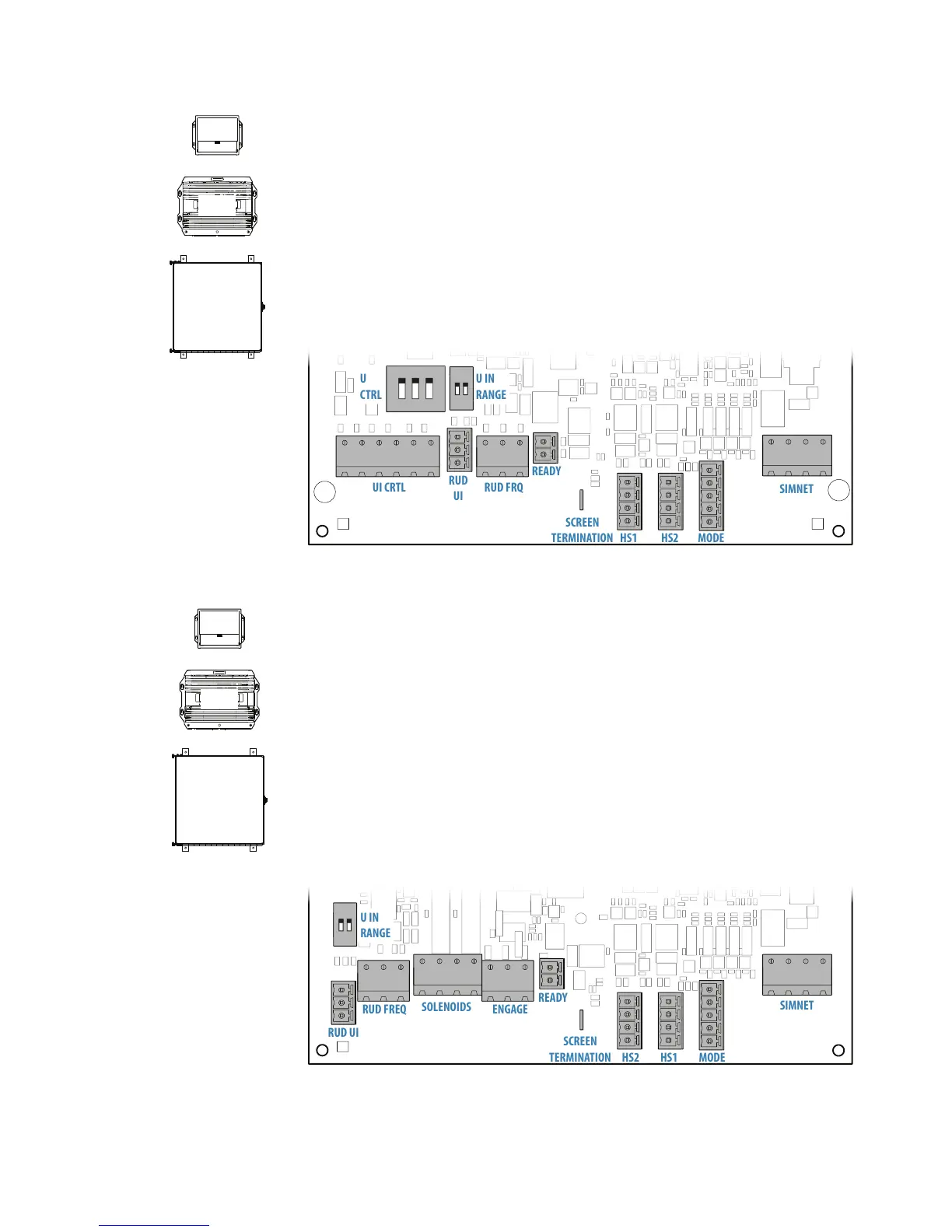

AD80 board
Drive computer board for rudder or thruster, supporting analog voltage or low current signals
for angle or proportional control.
Includes:
• UI CRTL - output for analog voltage low current command
• RUD UI - Input for analog (voltage or current) rudder feedback
• RUD FRQ - Input for frequency rudder feedback
• READY - output for ready contact when board is up running ready for control
• HS1 - Generic in/out handshake signal port 1
• HS2 - Generic in/out handshake signal port 2
• MODE - Input for external mode selector
• SIMNET - connection to CAN network
SIMNET
HS1
UI CRTL
RUD
UI
RUD FRQ
READY
HS2 MODE
U IN
RANGE
U
CTRL
SCREEN
TERMINATION
SD80 board
Drive computer board for rudder or thruster, supporting galvanic isolated solenoids or high
current signals for angle or proportional speed control.
• Includes:
• RUD UI - Input for analog voltage or current rudder feedback
• RUD FRQ - Input for frequency rudder feedback
• SOLENOIDS - Galvanic isolated output for solenoid command
• ENGAGE - For operating bypass or dual speed valve, clutch etc for hydraulic or mechanical
drive units
• READY - output for ready contact when board is up running ready for control
• HS1 - Generic in/out handshake signal port 1
• HS2 - Generic in/out handshake signal port 2
• MODE - Input for external mode selector
• SIMNET - connection to CAN network
U IN
RANGE
SIMNET
HS2
READY
SCREEN
TERMINATION
ENGAGERUD FREQ
RUD UI
SOLENOIDS
HS1 MODE
AC70
SD80 SI80
AC85 AC85 AC85
AC80S
AC80A
AC80S
AD80
AC85
AC80A
AC70
SD80
SI80
AC85
AC85
AC85
AC80S
AC80A
AC80S
AD80
AC85
AC80A
