Simrad AP80 Installation Manual

| 77
Specications | AP70/AP80 Installation manual

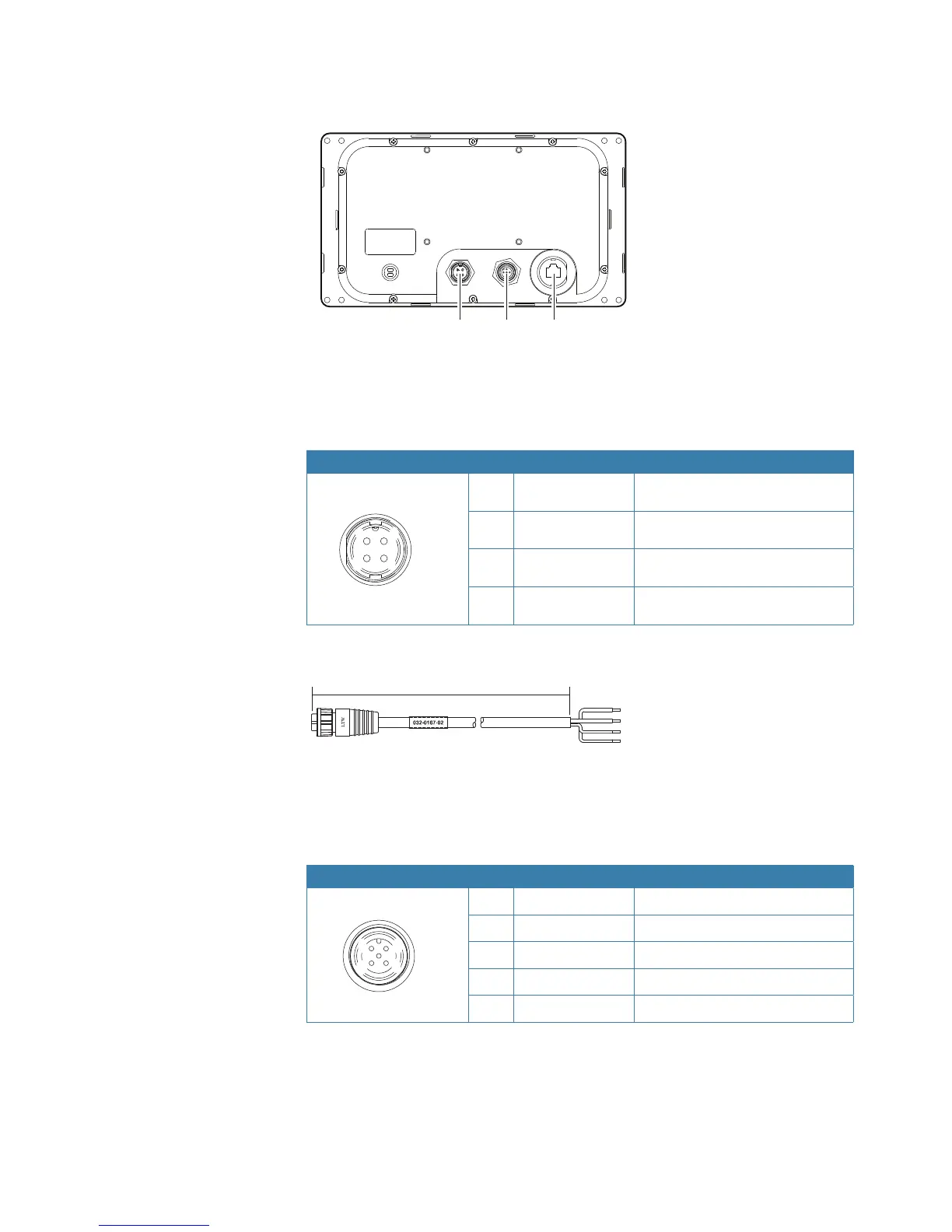

AP70 and AP80 Connector pinouts
2 31
1 Power
2 CAN bus
3 Ethernet
Power
Cable connector (female)
Layout Pin Wire Color Function
4
1 8
3
2
1
1 Black Battery (-)
2 Blue Alarm/Active
3 Yellow External command
4 Red Battery (+), 12 - 24 V DC
Power cable
2 m (6.5 ft)
CAN/NMEA 2000
Micro-C cable connector (female)
Layout Pin Wire Color Function
4
2
1 8
3
1
2
4
1
3
1 (Bare) Shield
2 Red NET S (+12 V)
3 Black NET C (-)
4 White NET H
5 Blue NET L
Ethernet
¼ Note: Both straight and crossed Ethernet cable may be used for software upload (AP70)!
