Simrad AP80 Installation Manual

30 |
Wiring | AP70/AP80 Installation Manual

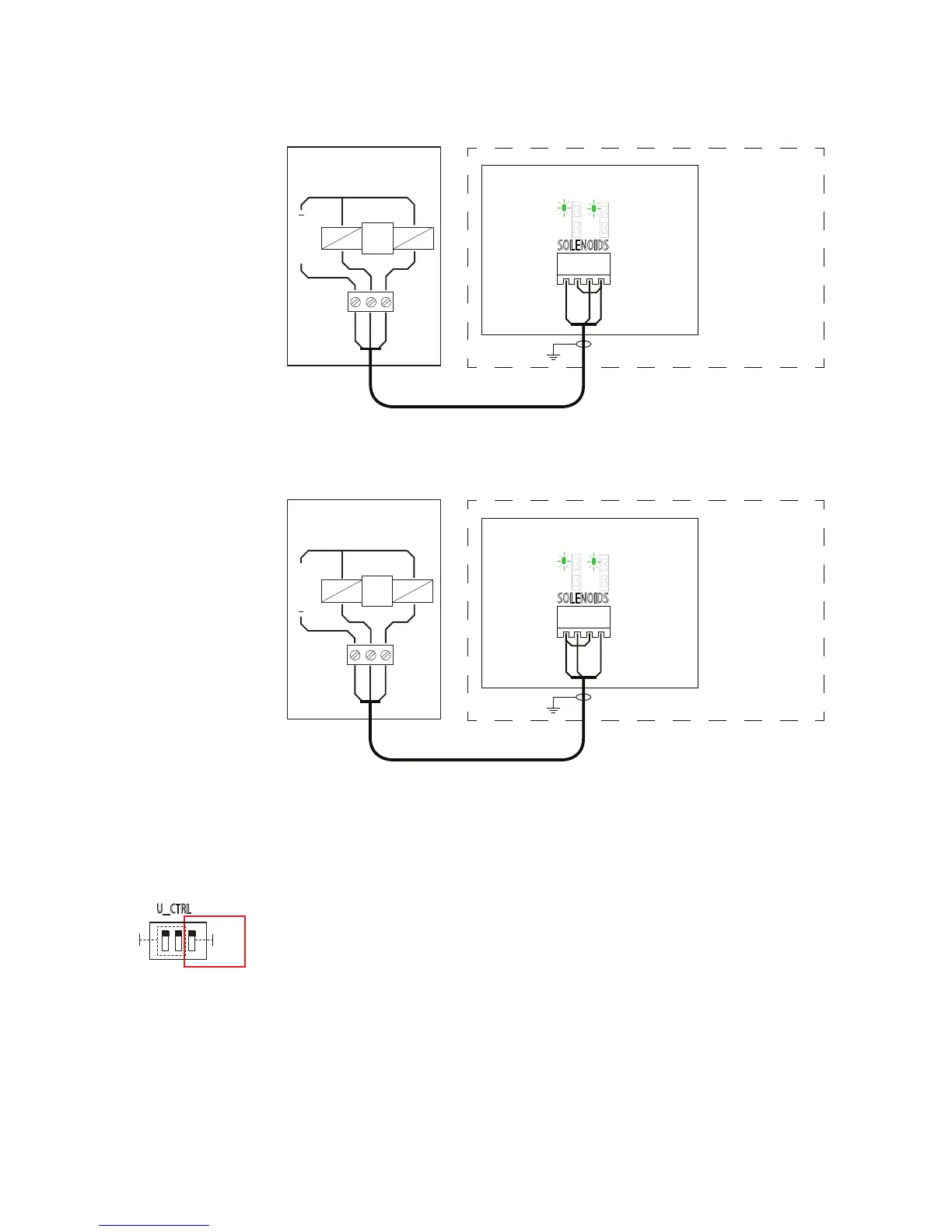

Externally powered solenoids, common negative
Connects to: SD80 board (in SD80, AC80S or AC85 Computer).
SOL1LO
SOL1HI
SOL2LO
SOL2HI
FUSE 10A
SOL2
SOL1
SOLENOIDS
SD80 BOARD
SD80 , AC80S
or AC85
Computer
SOLENOID VALVE
SOL1HI /
POWER
+
SOL1LO
SOL2HI
SOL2LO
Externally powered solenoids, common positive
Connects to: SD80 board (in SD80, AC80S or AC85 Computer).
SOL1LO
SOL1HI
SOL2LO
SOL2HI
FUSE 10A
SOL2
SOL1
SOLENOIDS
SD80 BOARD
SD80, AC80S
or AC85
Computer
SOLENOID VALVE
SOL1LO /
POWER
+
SOL1HI
SOL2LO
SOL2HI
Analog steering gear
Connects to: AC80 board (in AD80, AC80A or AC85 Computer).
The AD80 board provides analog control of rudder(s) and thrusters in an AP70 and AP80
system by either continuous voltage or current signal.
The UI_CTRL DIP switch is used to voltage control line.
• Set to READY, the voltage control line will be broken by a solid state relay contact when the
autopilot is not ready for steering (Power off and serious error situations)
• Set to ON the line will always be connected
Additional switch settings for the alternative steering gear control alternatives are included in
next the sections.
U_CTRL
EXT
READY
ON
INT
