Simrad FU80 User Manual

| 25
Specications | FU80, NF80, QS80 User Guide

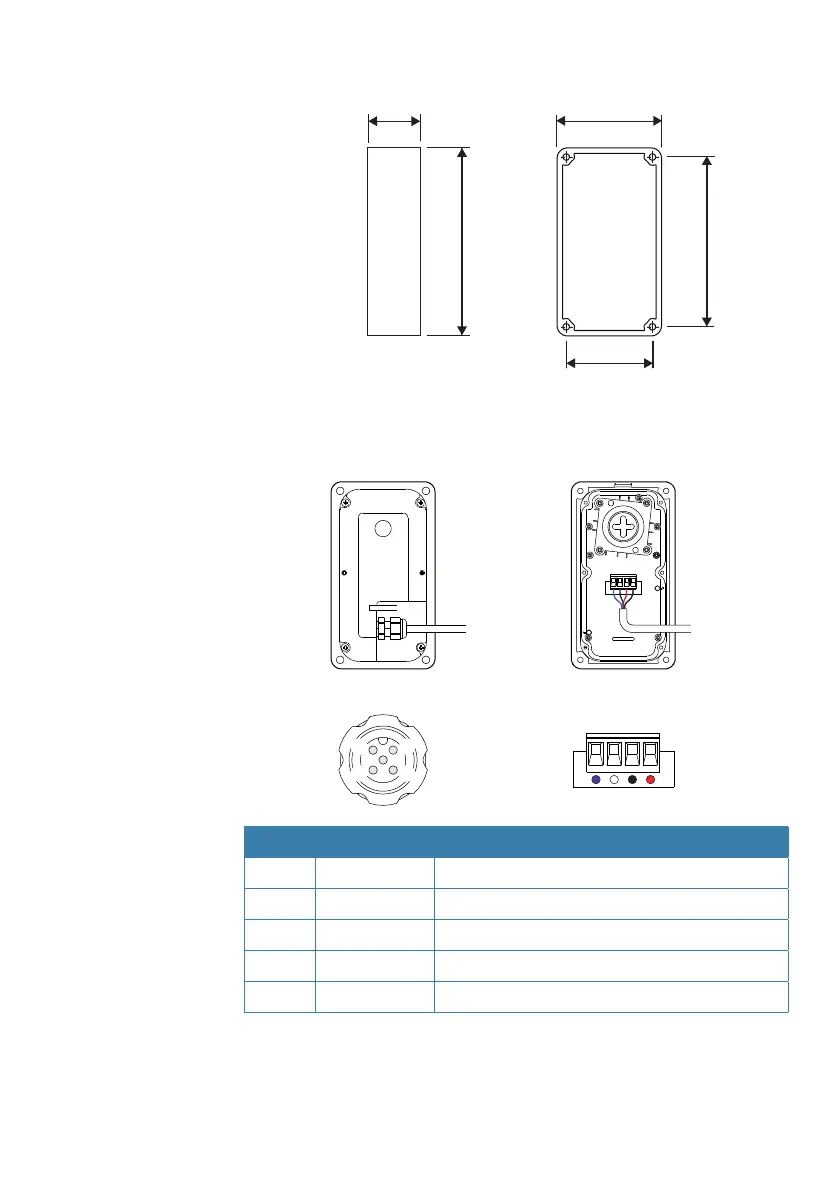

Dimension, Bulkhead mounting frame
144 mm (5.67”)
40 mm (1.55")
80 mm (3.15")
c/c
66 mm (2.60")
c/c 130 mm (5.12")
Connector pin-out
12
43
Pin Color Function
1 Shield
2 Red NET-S (Power source +)
3 Black NET-C (Power source -)
4 White NET-H (CAN high)
5 Blue NET-L (CAN low)

Simrad FU80 Specifications

General

Brand	Simrad
Model	FU80
Category	Remote Control
Language	English
