Installation | FU80, NF80, QS80 User Guide

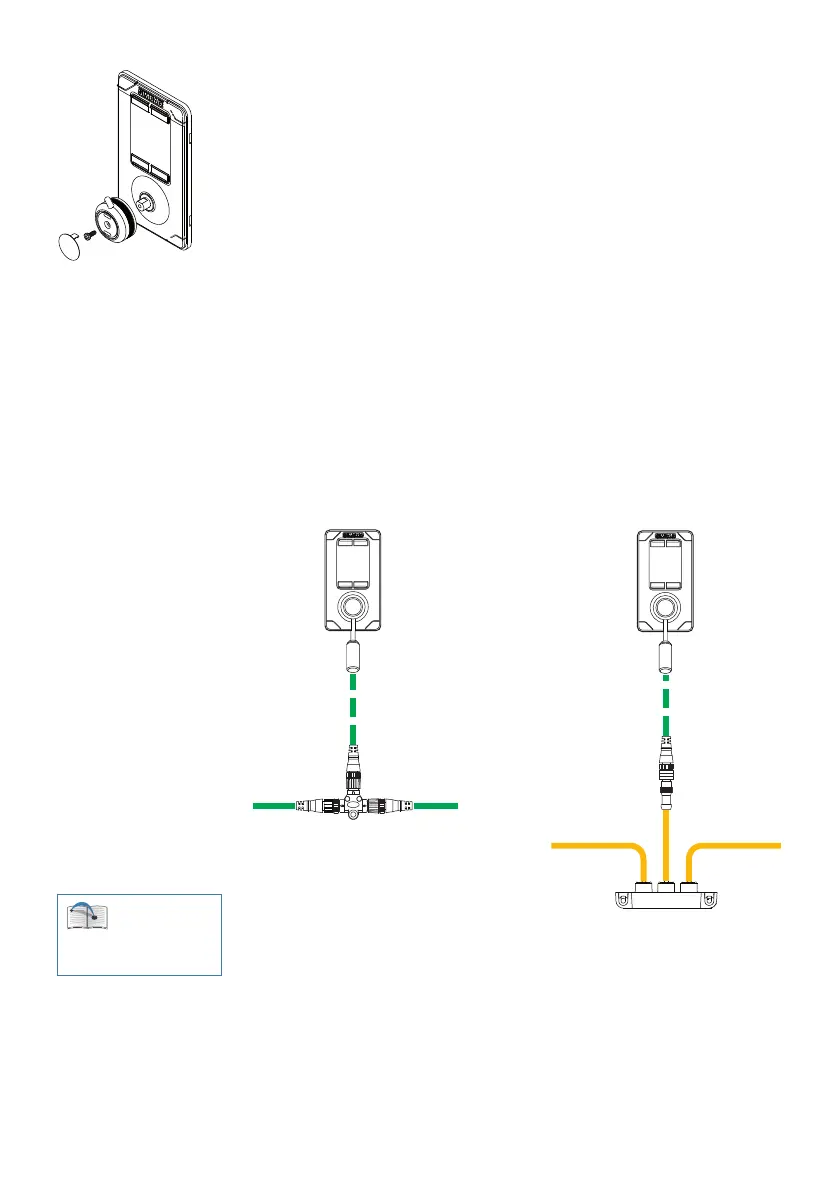

The FU80 lever
The factory mounted short lever can be replaced by the longer lever
included in the package.
The lever can be mounted in a 180° opposite direction as follows:
1. Remove the knob’s cap (A)
2. Remove the screw (B), and carefully remove the knob (C)
3. Rotate the knob 180°, install the selected lever, re-install the knob and the
cap .
Wiring
¼ Note: Don’t make sharp bends in the cables, and avoid running
cables in a way that allows water to flow down into the connectors.
If required, make drip and service loops.
The remotes connect to the CAN bus backbone or SimNet
backbone as shown below.
A
B
CC
A
D
E
FF
AP60/AP70/AP80 system AP24/AP28/NSE/NSS/NSO systems
B
A
C
For part
numbers, refer to our
website.
