Drawings

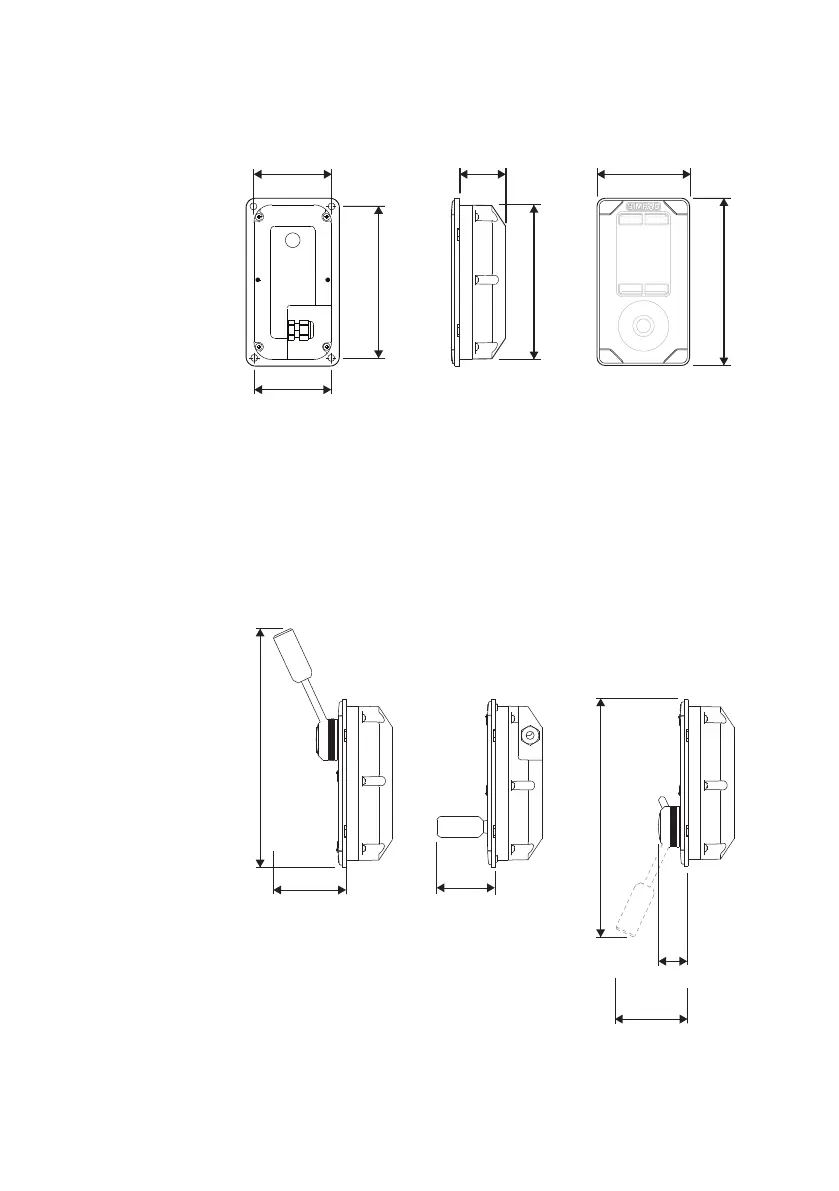

Dimension, Remotes
51 mm (1.98")
205 mm (8.05")
63 mm (2.46")
80 mm (3.15")40 mm (1.55")66 mm (2.60")
c/c
66 mm (2.60")
132 mm (5.20")
144 mm (5.67”)
c/c 130 mm (5.12")
NF80 QS80 FU80
63 mm (2.46")
205 mm (8.05")
16 mm (0.63")
