10

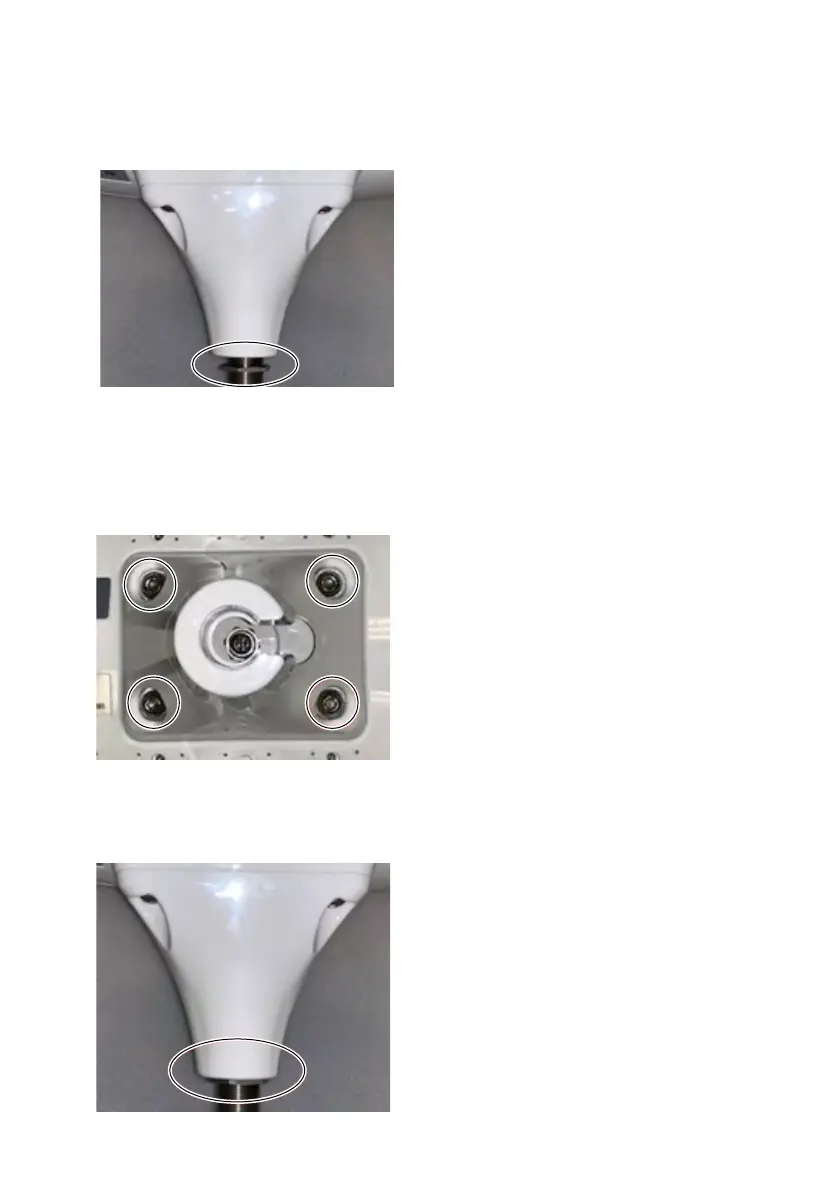

Pole mounting
1 Screw the jam nut onto the 1-inch pole, then screw the pole mount bracket onto the pole. Do not
tighten the pole mount to more than 5.4 Nm (4 lbs-ft).
2 Feed the cable either through the hollow pole or through the opening in the pole mount bracket.
3 Connect the NMEA 2000
®
drop cable to the HS75, then secure the pole mount bracket to the
HS75 using the supplied mounting hardware. Tighten to a torque of 11 - 13 Nm (8 - 10 lbs-ft). The
maximum thread depth engagement must be no more than 12 mm (0.50“).
4 Verify the orientation of the HS75, then tighten the jam nut to the bottom of the pole mount
bracket to a torque of 11 - 13 Nm (8 – 10 lbs-ft).
