Surface mounting with adapter
1 Secure the upper adapter to the HS75 using the supplied mounting hardware. Tighten to a torque
of 11 - 13 Nm (8 - 10 lbs-ft). The maximum thread depth engagement must be no more than 12
mm (0.50“).

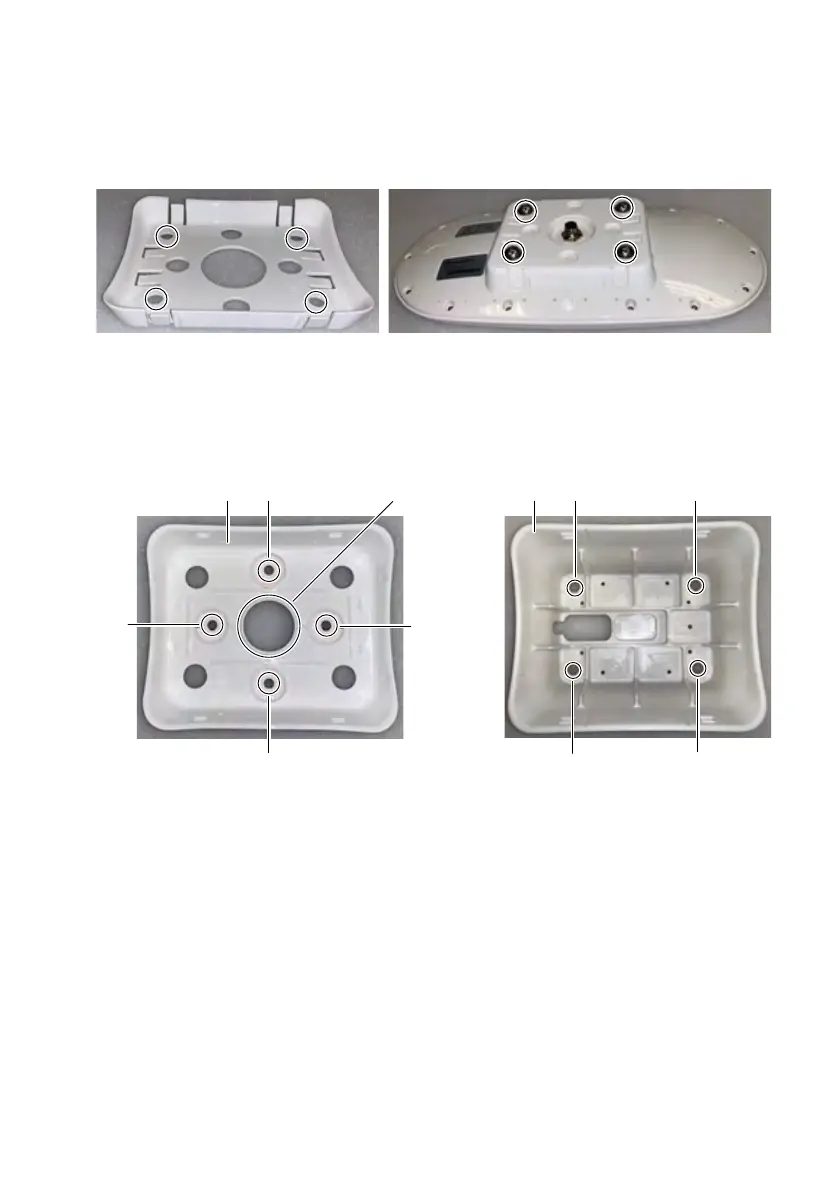

2 Use the lower part of the adapter as a template and mark and drill holes (x1 - x4) for the screws.
For the low prole adapter (A) where the cable exits through the bottom, also mark and drill a
hole for the cable. For the high prole lower adapter (B) where the cable exits above the mounting
surface, no cable hole is required.
A A1
A1
A1
A1
A2
B
B1
B1
B1 B1
3 Route the cable through the adapter and secure the lower adapter to the installation surface.
Tighten to a maximum torque of 13 Nm (10 lbs-ft).
4 Connect the NMEA 2000
®
drop cable to the HS75 and place the HS75 assembly into the lower
adapter so that the four latches snap into place.
¼ Note: To remove the HS75, press in the clips on one side, at which point the HS75 can easily be
removed.
