| 29
Installation | HS60 GPS Compass User Guide
NMEA 2000 Cable pin-out specications

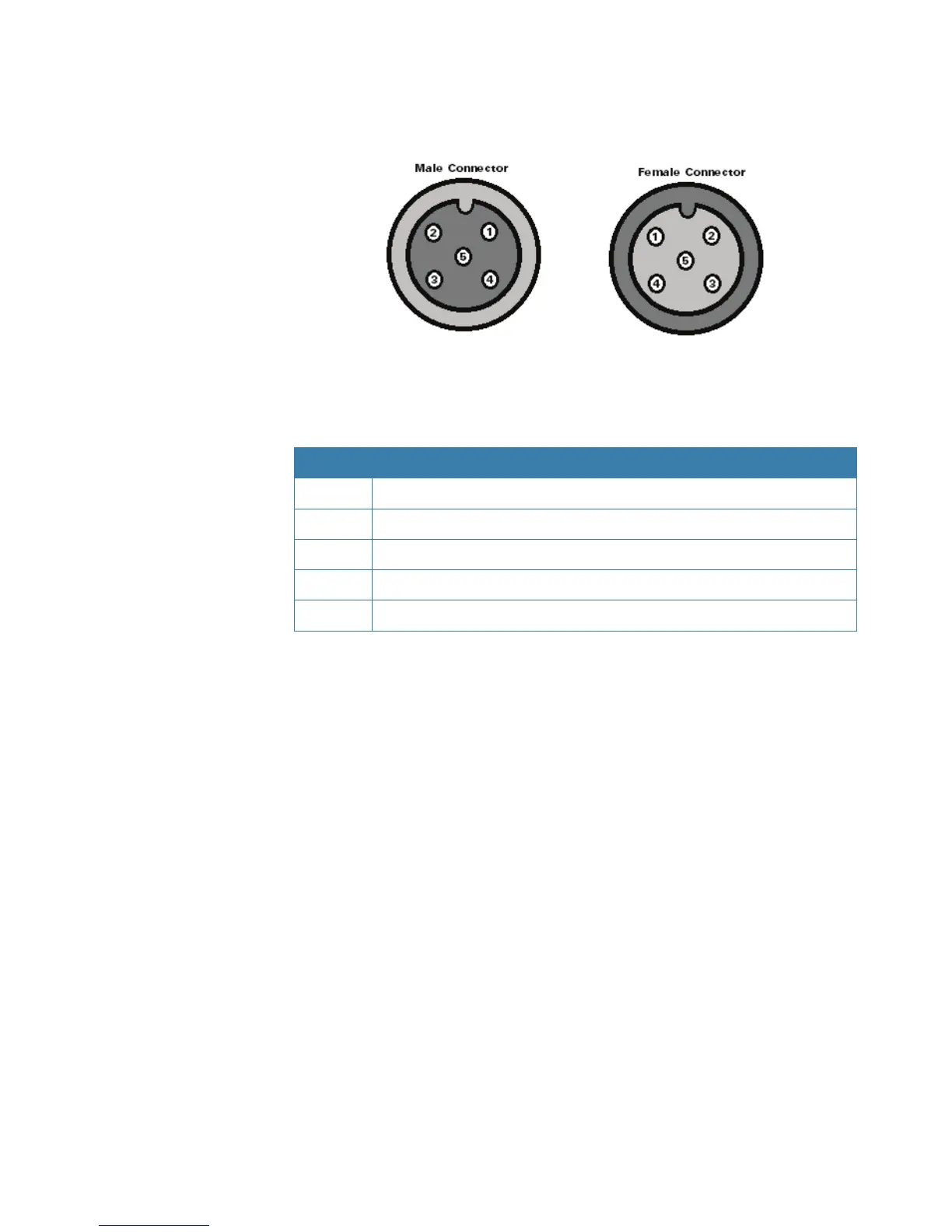

The power/data cable pin-out is shown below together with the
specifications (see below table).
NMEA 2000 cable pin assignment
NMEA 2000 cable pin-out
Pin Function
1 Shield
2 Power supply positive (+ V)
3 Power supply negative (- V)
4 CAN HI
5 CAN LOW
NMEA 2000 Port
The HS60 uses proprietary NMEA 2000 PGN for receiver configura-
tion. Please contact SIMRAD technical support for a complete and
up to date list of available proprietary PGN’s. With suitable USB-CAN
adapter from Peak or gridconnect.com, HS60 can be connected to
a Windows PC running a third party software like PocketMax or Vec-
torPC for configuration and setup using the same serial commands
as the NMEA0183 HS60.
