Simrad R2009 Quick Reference Card

Main panel

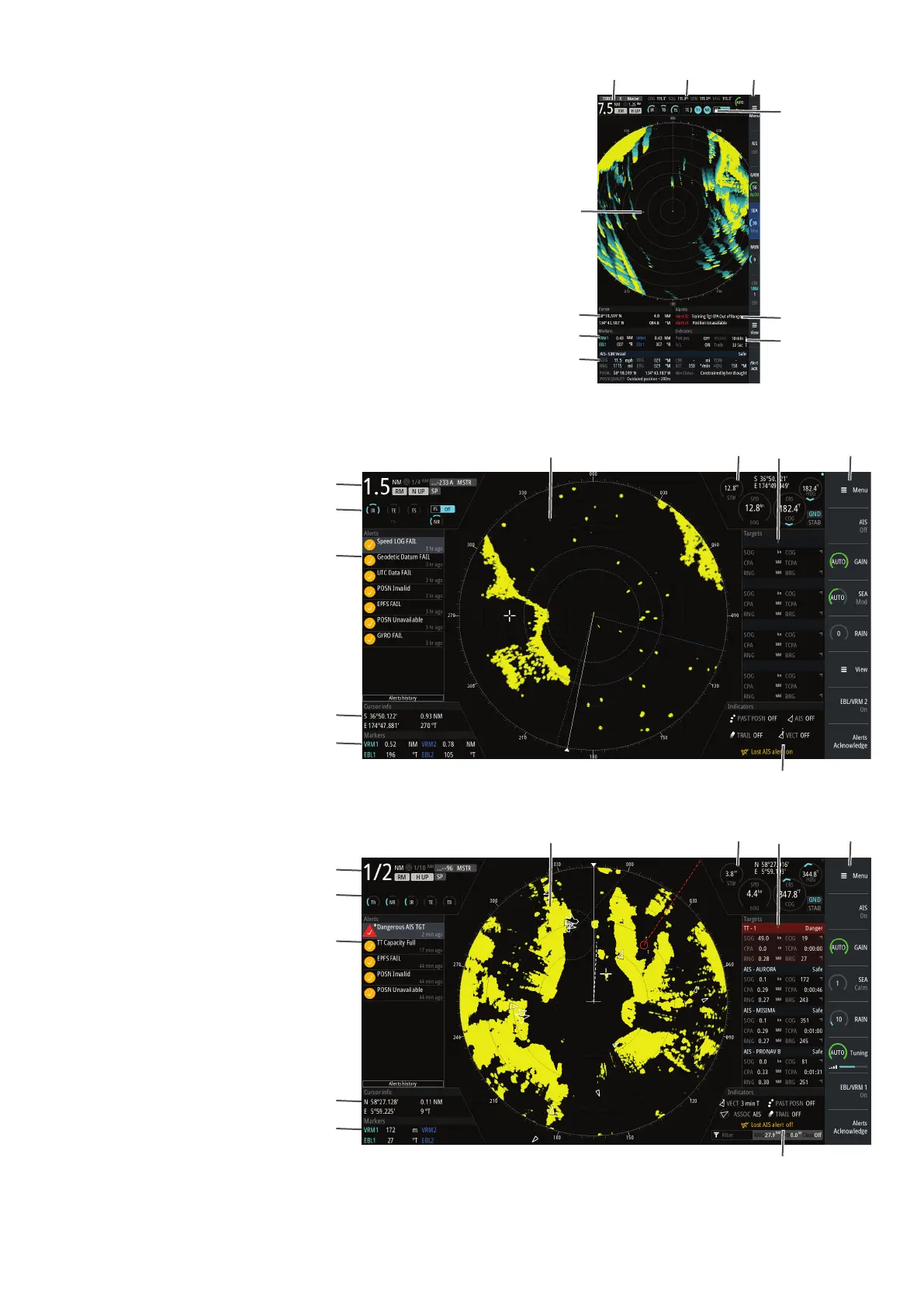

The main panel is divided into predefined areas as indicated.
1. Plan Position Indicator (PPI)
Radar video area where all
tracking and navigation
options are performed.
2. Own ship information
Stabilization mode indicator,
picture freeze indicator and
gauges showing primary and
secondary sensors.
3. Target panel
Detailed information about
radar targets and AIS targets.
4. Softkey bar
Reference for softkey func-
tions.
5. Target indicators
Overview of target indicator
settings.
6. Markers
Details for active VRM and
EBL markers.
7. Cursor information
Range and bearing from the
vessel to the cursor position.
Also including position infor-
mation if a position source is
available.
8. Alerts panel
List of active alerts.
9. Signal indicators
Gauges for signal process-
ing and indicators for radar
functions.
10. System information
Range, mode and pulse
details.
1
10 2 4
7
6
3
5
8
9
R2009 9” screen
R3016 12U/6X
10
9
8
7
6
5
1 2 3 4
R3016 16” widescreen
10
9
8
7
6
5
1 2 3 4
