Pulse repetition frequency set
Used to avoid interference between radars working on the same band.
If the PRF is set to 1, the pulse repetition frequency is shifted so it is not interfered with other
radar sensors with PRF set to 0.
Cable length
Used for inserting the length of the waveguide/coaxial cable for downmast radar sensors.
The value is used to calculate internal parameters for target detection.
Ú
Note: This option is not editable for up-mast installation.
SRT configuration
This part is only for Navico engineers and protected by the factory password.

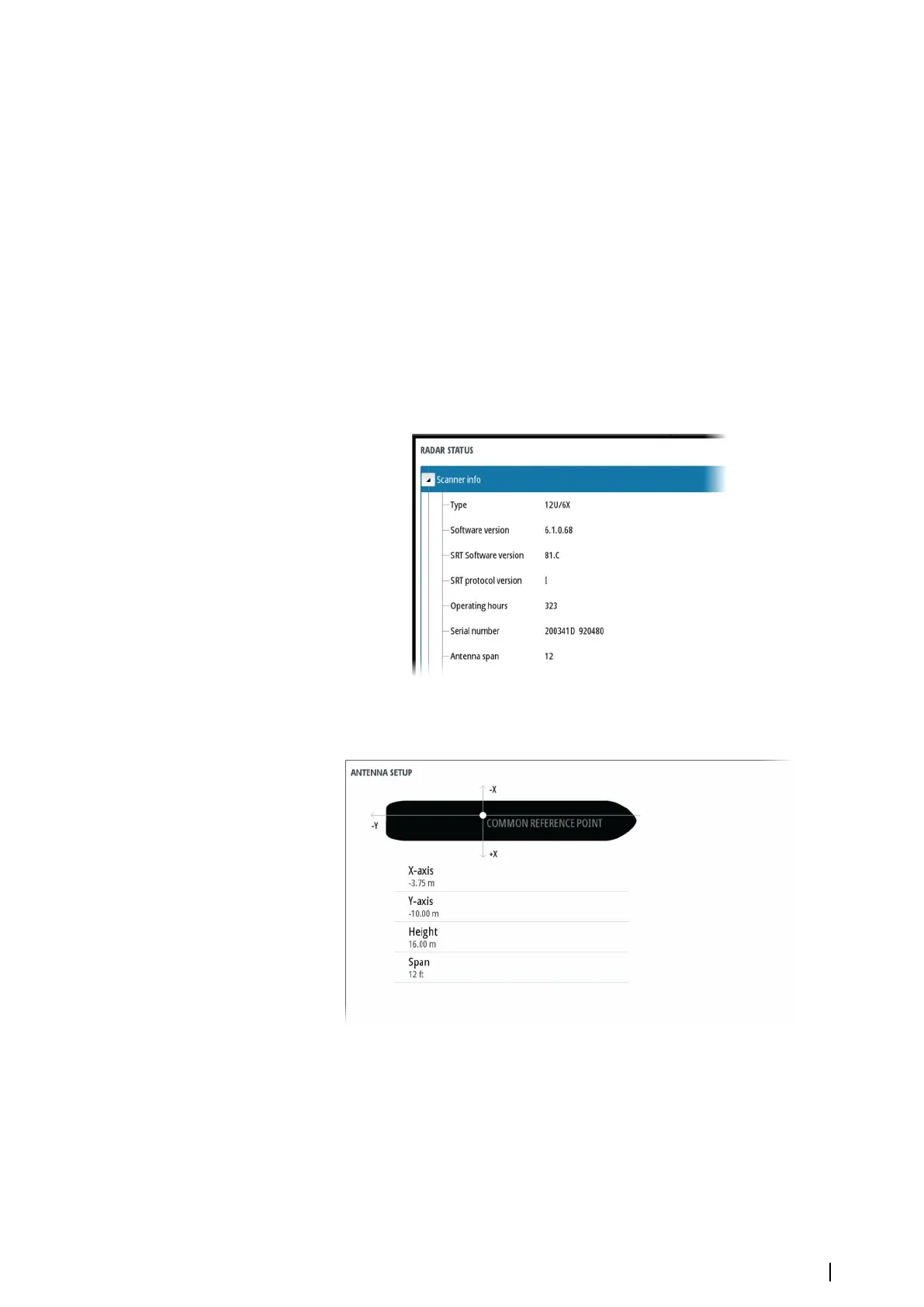

Radar status
Displays scanner information and scanner features, primarily used for information and to
assist with fault finding.
Antenna setup
Used for setting the position, height and span of the antenna.
The approximate position of the antenna on the vessel must be set in order to correctly
position the vessel outline when viewing close range settings. The PPI will be centered on
the icon representing the position of the antenna.
The antenna height is the height of the antenna above the water line, when vessel is carrying
a typical load. It is very important to set the antenna height correctly as this will affect the sea
clutter function.
The antenna span is the total length of the antenna.
Software setup | R5000 Commissioning manual
21
