Page 7
1.2 T
echnical
Summar
y
TILLERPILOT
SPECIFICA
TIONS
TP20
TP30
Drive System
Screw
Recirculating
Thread
Ballscrew
Hardover time 0kg
6.9 secs
4.0 secs
20kg
8.0 secs
4.7 secs
40kg
12.0 secs
6.0 secs
50kg
8.0 secs
Peak Thrust
65kg (143lbs)
85kg (187lbs)
Operating Stroke
250mm (10in)
Supply V
oltage
12v DC (10v-16v)
Power Consumption
0.06A
(Stby)
(T
ypical)
0.5A
(Auto)
Mounting
Starboard as default
(Can be reversed)
NAV
STBY
TACK
STBY
AUTO
105mm
(4.0in)
60mm
(2.3in)
610mm (24in)
MID STROKE

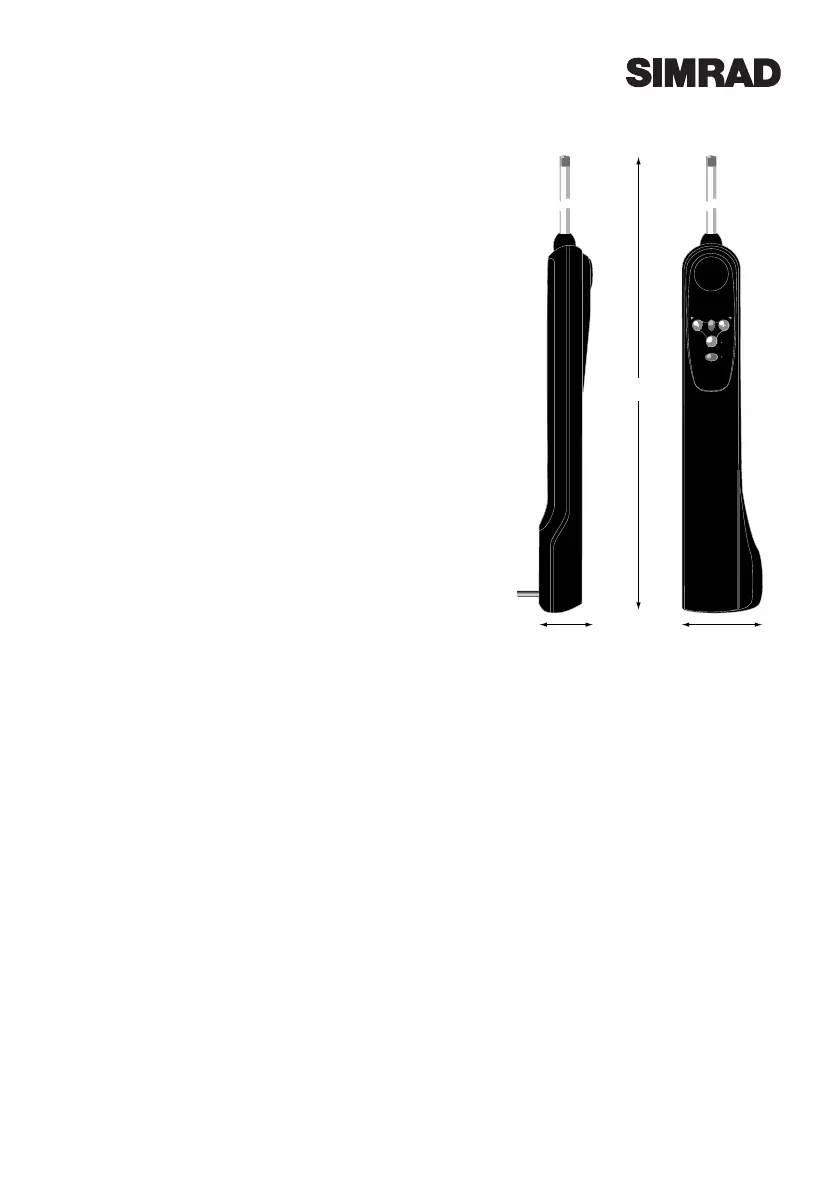

Fig 1.1 -
Tillerpilot dimensions
6
8
Table of Contents
Default Chapter
5
Table of Contents
5
1 General
6
Introduction
6
Technical Summary
7
2 Operation
8
General
8
Autopilot Mode
8
Adjusting Course
8
Autotack
9
Tiller Movement (Gain)
10
Seastate
10
Autotrim
10
3 Advanced Features
11
Nav Mode
11
Sail to Wind
12
Using External Compass
13
4 Configuration
14
Porthand Mounting
14
Calibration Mode
15
Adjusting Gain
15
Adjusting Seastate
15
5 Installation
16
Fitting Tillerpilot
16
Electrical Installation
18
Interfacing Via NMEA
19
NMEA Sentences Received
20
6 Appendix
21
Advice on Operation
21
Fault Finding
22
Auto Compass Calibration
23
Spares & Accessories
23
Service & Warranty
25
