Page 16
5 Installation
5.1 Fitting Tillerpilot
The Tillerpilot is a very sophisticated piece of equipment, and therefore in order for it to function
to its full capabilities, it is essential that it is installed correctly. Please read this section thorough-
ly before attempting installation and use.
The Tillerpilot should be installed so that it is level (horizontal - Fig 5.2), and 90º to the tiller when
it is amidships and the pushrod is in the midstroke position (Fig 5.3). The pilot is factory preset to
be mounted on the Starboard side as shown, but this can be reconfigured for Port side mounting
(see section 4.1).
The dimensions given in Figs 5.2 & 5.3 should be adhered to as far as possible, especially Fig 5.2.
Some tolerance on the distance from tiller stock (Fig 5.3 dimension) is permissible, but the
Tillerpilot may require a Gain adjustment to compensate (see section 4.3). If the dimension given
in Fig 5.2 is not practical for the vessel to which it is to be fitted, a range of fitting accessories are
available to facilitate correct installation. Please refer to section 6.4.
The Tillerpilot houses an internal fluxgate compass, and should therefore be mounted away from
sources of magnetic interference, such as the vessel’s steering compass. The minimum safe dis-
tance is 1M (3Ft).

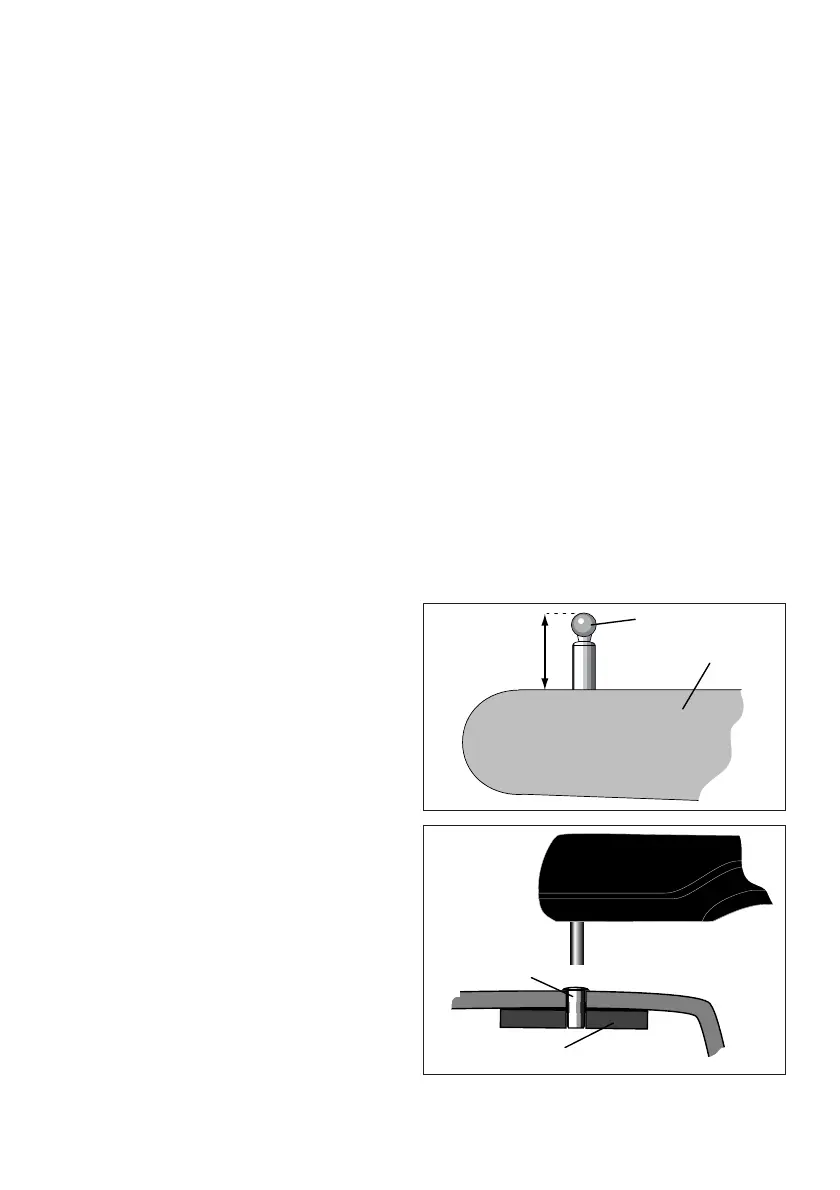

The Tillerpilot is mounted using a supplied tiller
pin and mounting cup, which allows the unit to
be fitted and stowed easily.
To fit the tillerpin, drill a 6.3mm (
1
/4 in) hole in
the tiller (ensure that this is on the centreline of
the tiller and is vertical). Drill to a depth that
allows only the top 18.0mm (
3
/4 in) to protrude.
Fix in place using an epoxy adhesive.
To fit the mounting cup, drill a 12.7mm (
1
/2 in)
hole into the cockpit seat and mount so that only
the flange protrudes. Ensure that the cup is a
tight fit (use an epoxy adhesive), and is support-
ed over its entire depth. If necessary, reinforce
the underside of the cockpit seat with hardwood
or marine plywood.
NOTE - Due to the high loads exerted, do not
fit the Tillerpilot to the mounting cup and pin
until the adhesive has completely set.
