Interfacing via SimNet
The TP22 and TP32 Tillerpilots are linked to other SimNet-compatible
equipment via the integral SimNet cable and plug in the bulkhead
socket.
All SimNet units (Instruments, Chartplotters, Radars, Autopilots, etc.)
use the same single cable to share data on the high speed network.
If there are no spare SimNet ports convenient, a three-way cable
joiner can be used to create an additional port.

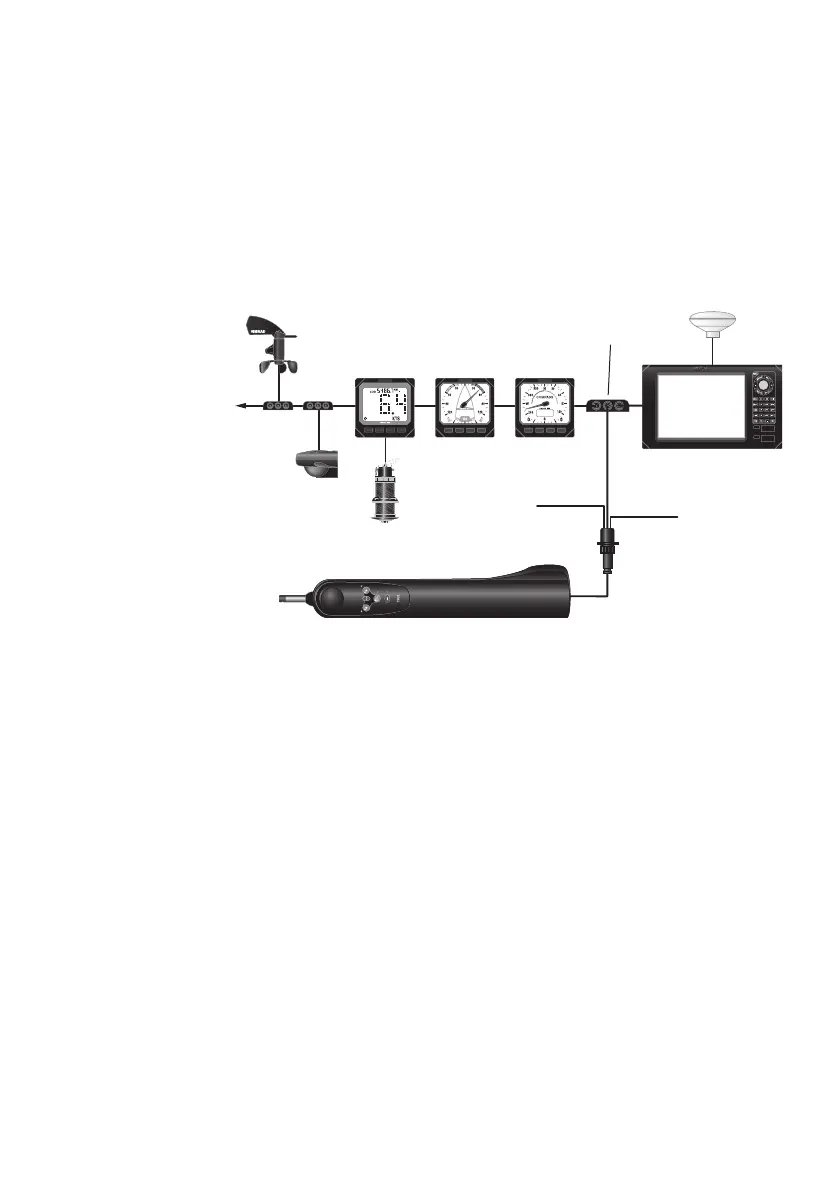

GPS/Chartplotter
Speed Wind Compass
Tillerpilot
power
NMEA
0183
Bus
power
3-way
joiner
¼ Note: It is not necessary to plug the Tillerpilot directly into any
equipment that you wish to share data with – all data is transmitted
across the whole bus network.

Simrad TP22 Specifications

General

Type	Tillerpilot
Power Supply	12 V DC
Waterproof Standard	IPX6
Operating Voltage	12V DC
Operating Temperature	-15°C to +55°C
Course Accuracy	±1°
Auto Seastate	Yes
Display	LCD
Maximum Boat Length	36 ft
Power Consumption	3A Working
Standby Current Draw	60mA
