Simrad TP22 User Manual

| 19

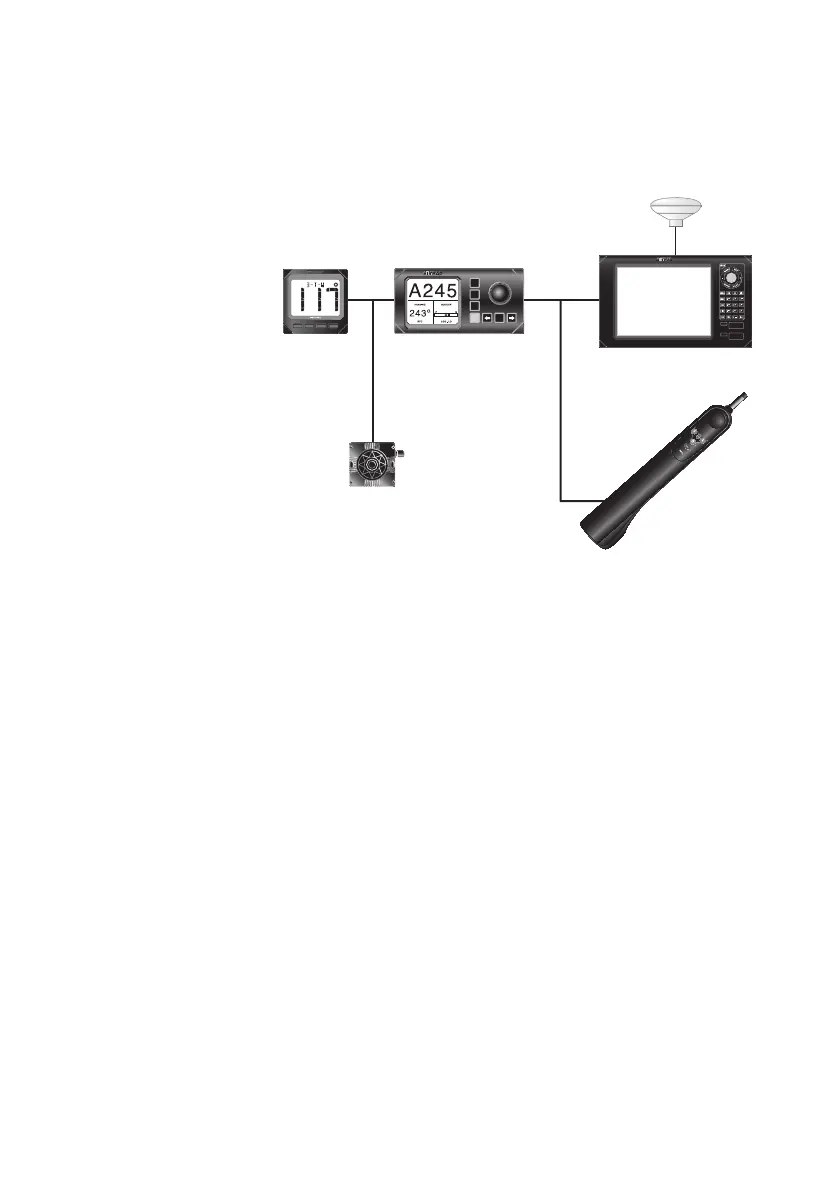

Conguring the TP on the SimNet bus
Normally the TP22 and TP32 can be connected to the SimNet bus
and will automatically share data sources with other SimNet units
without any required user intervention.
Display
Compass
Autopilot
GPS/Chartplotter
Two operation modes are available:
System mode
(default)
The Tillerpilot automatically shares data
sources with other SimNet units.
Source selection can be done from any
SimNet unit using shared data resources
StandAlone mode The Tillerpilot will not automatically share
data sources with other SimNet units,
other than AP24 or AP28 control units
included in the system. These will always
share data sources with the Tillerpilot.
The data sources for the Tillerpilot and
the AP24/AP28 can be selected from the
AP24/AP28 control unit.
To change the mode, first turn off the Tillerpilot
- To select System mode (default), press and hold the TACK,
STBY/AUTO and NAV keys while turning power on

Simrad TP22 Specifications

General

Type	Tillerpilot
Power Supply	12 V DC
Waterproof Standard	IPX6
Operating Voltage	12V DC
Operating Temperature	-15°C to +55°C
Course Accuracy	±1°
Auto Seastate	Yes
Display	LCD
Maximum Boat Length	36 ft
Power Consumption	3A Working
Standby Current Draw	60mA
