Simrad TP22 User Manual

| 27
Spares & accessories
The following spares and accessories are available from local Simrad
agents. Please quote the part number when ordering.
TPPK7 Tillerpin, Mounting Cup & Pushrod End Cap
SKT100 Waterproof Socket & Cable Assembly (TP10)
SKT22/32 Waterproof Bulkhead Socket & Cable
Assembly (TP22 and TP32)

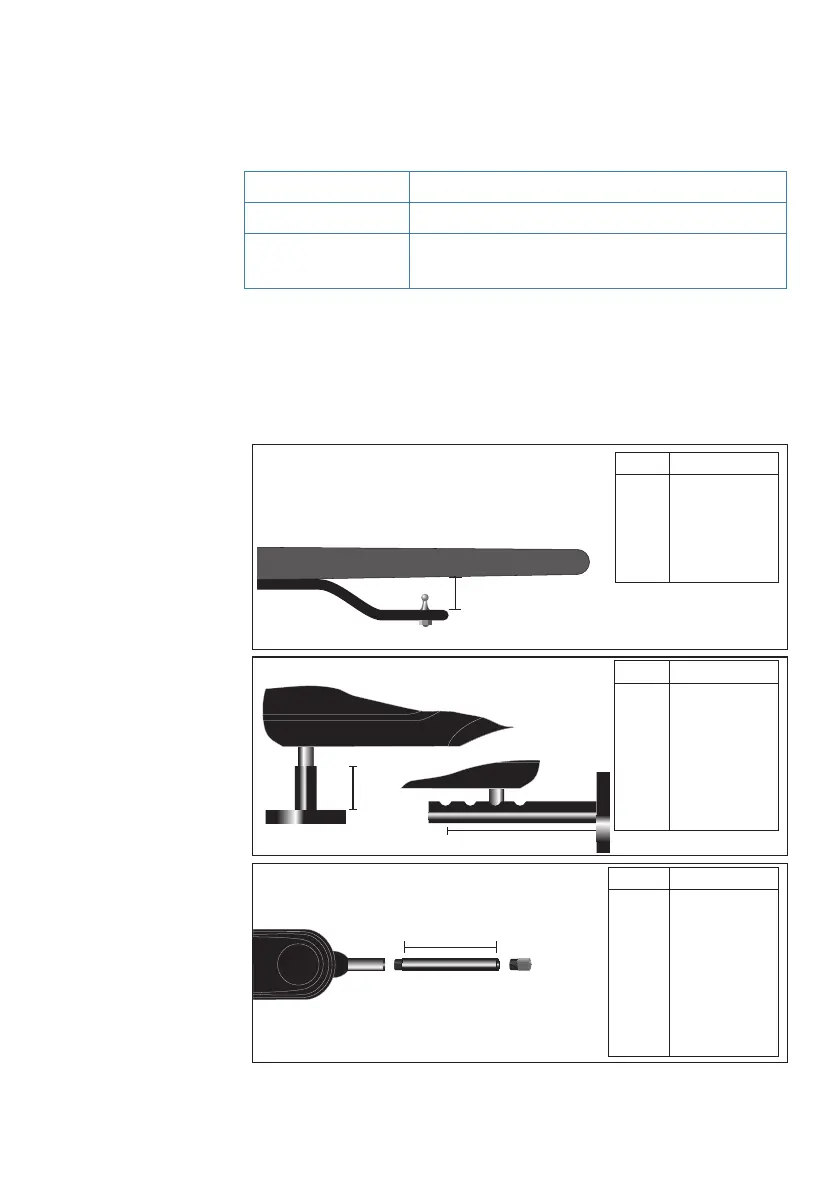

Mounting accessories
Height
Tiller Brackets
Push Rod Extensions
PRE30
PRE60
PRE90
PRE120
PRE150
PRE300
Part No Length
30mm (1.18")
60mm (2.36")
90mm (3.54")
120mm (4.72")
150mm (5.90")
300mm (11.81")
TB30
TB60
TB90
TB120
Part No Height
30mm (1.18")
60mm (2.36")
90mm (3.54")
120mm (4.72")
Length
PB30
PB60
PB90
CB1 135 - 240mm
(5.31 - 9.44")
Part No Height / Length
30mm (1.18")
60mm (2.36")
90mm (3.54")
Height
Length
Cantilever Bracket CB1
Pedestal & Cantilever Brackets

Simrad TP22 Specifications

General

Type	Tillerpilot
Power Supply	12 V DC
Waterproof Standard	IPX6
Operating Voltage	12V DC
Operating Temperature	-15°C to +55°C
Course Accuracy	±1°
Auto Seastate	Yes
Display	LCD
Maximum Boat Length	36 ft
Power Consumption	3A Working
Standby Current Draw	60mA
