3.4. Function test
Warning! During the test, the GD1 4 – 20 mA output going to control system will
be indicating gas when performing the procedure below.
Note! To conform with the SIL 2 Safety Integrity Level certification, a yearly
functional test is required..
#

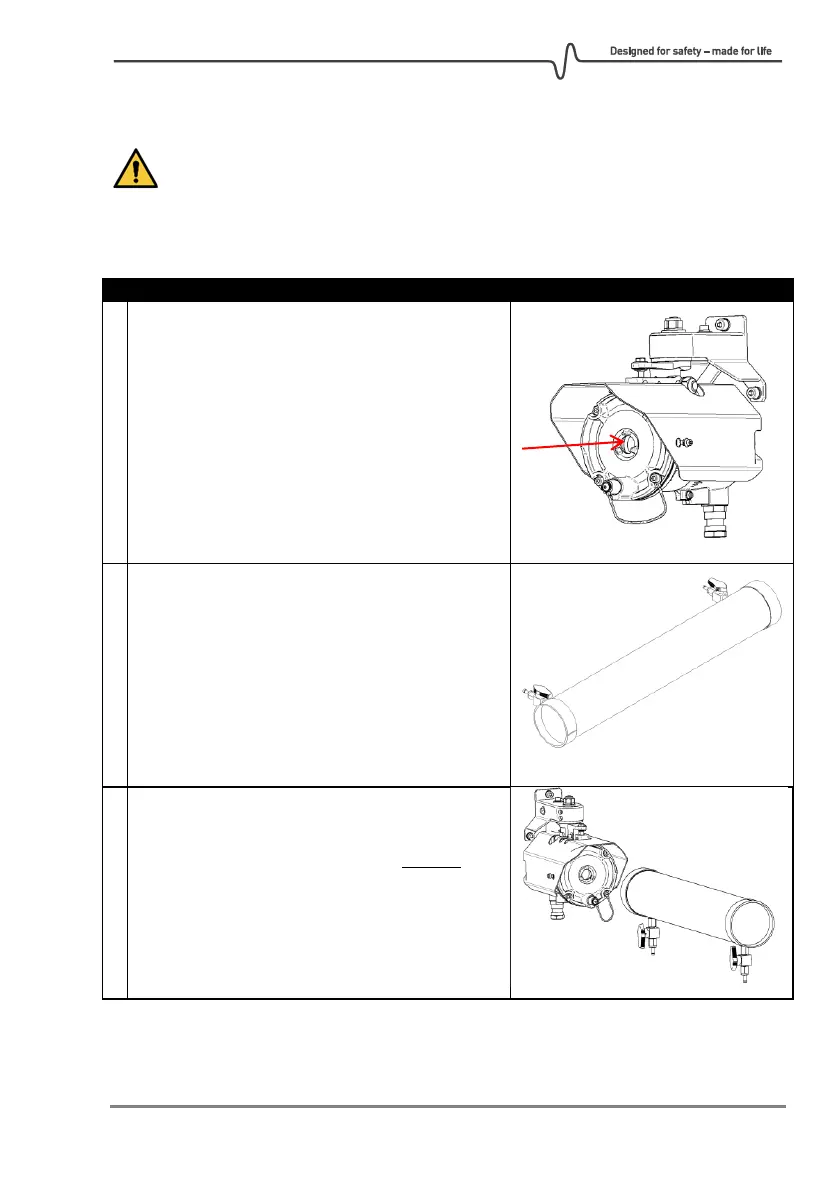

Step description
Illustration / response
1
Clean the lenses on the TX and RX as described in
section 5.2.
2
Fill the Test Cell as described in the section 4.2.
3
Position the Test Cell in front of the receiver (RX)
as indicated in the figure.
