ultiFlame DF-TV7 Page 15 / 56 NOSP16358-03 [04/2016]

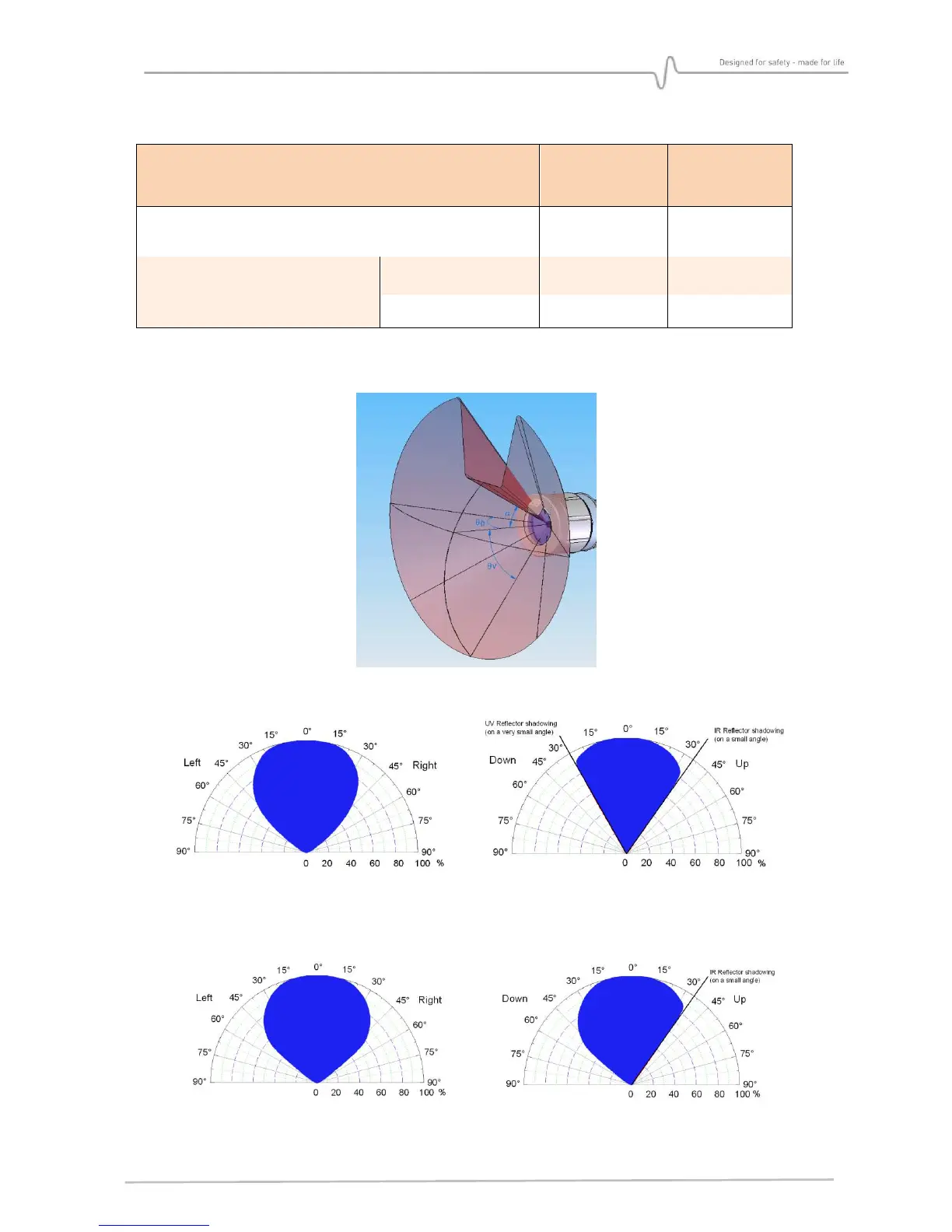

3.2. Field of View (Cone of Vision)
DF-TV7-XVA0
DF-TV7-XTA0
and
DF-TV7-XTB0
α
max
: Maximum angle as defined in standard EN 54-10
(2006) - § 5.4
30° 35°
Angle at 50% sensitivity
(in accordance with FM 3260
standard)
Horizontal total
97° 104°
Vertical Up / Down
20° / 35° 30° / 52°
The vertical viewing angle is limited by the self-test reflectors on a thin solid angle
DF-TV7-XVA0
DF-TV7-XTA0 AND DF-TV7-XTB0
T
y
pical horizontal detection: Typical vertical detection:
