ultiFlame DF-TV7 Page 9 / 56 NOSP16358-03 [04/2016]

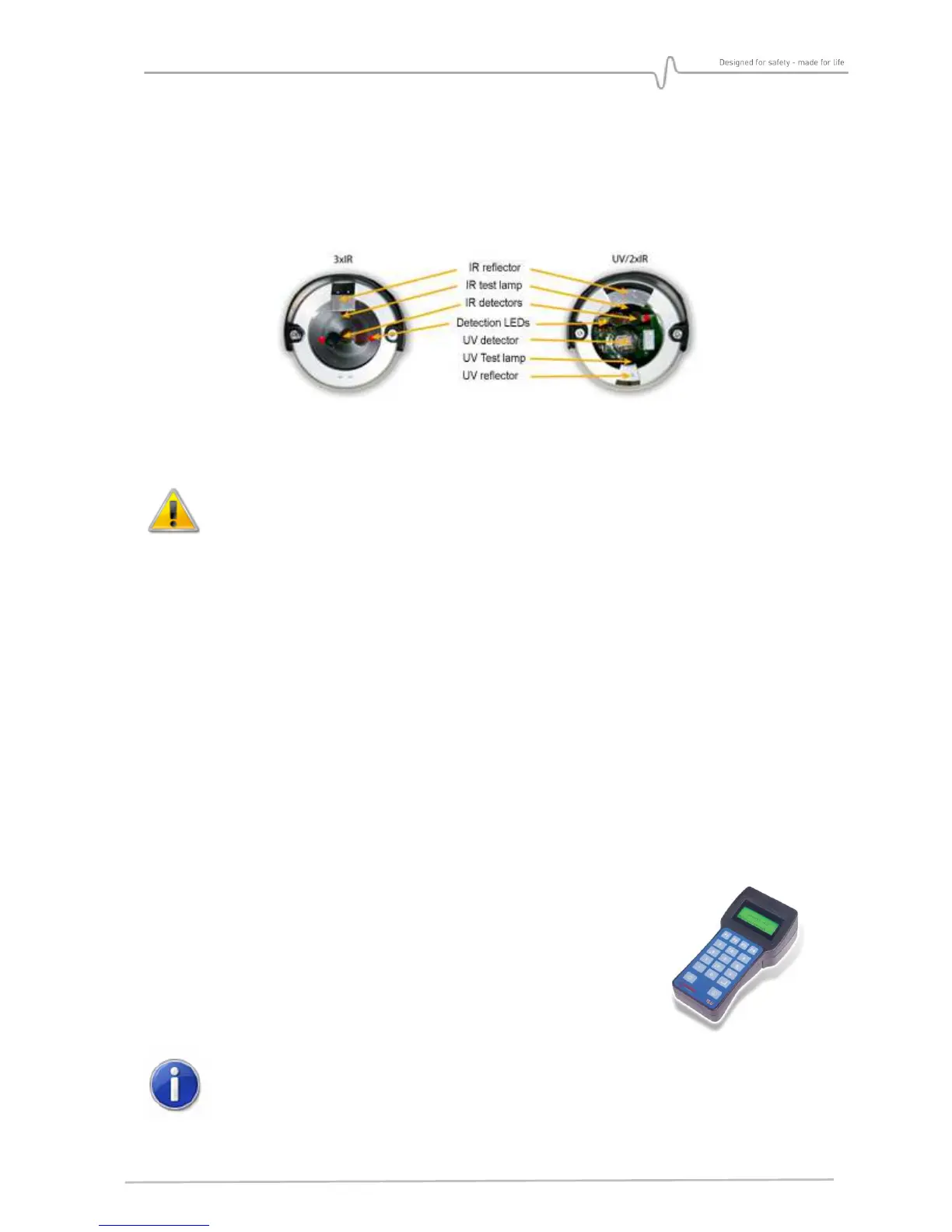

1.5. Detection Cartridge
Cartridges are explosion proof designed. They are common to all MultiFlame line of products
in order to reduce spares parts.
• DF-RV7-T and DF-RV7-V: Network “Telecaptor” flame detector line,
• DF-TV7-T and DF-TV7-V: “Telecaptor” flame detector line.
Alarms information is indicated by the flashing of a red LED in the communication head and
of two LEDs located in front of the detection cartridge. Information and detector status is
also available via the remote control TLU 600/610 display.
The cartridge must not be removed when the detector is powered.
1.6. Optical self-test function
Sensor cartridges have one or more self-test optical lamps allowing detection integrity test.
This is a full optical test where the signal from each test lamp is transmitted through the
sensor window and reflected back to the detecting elements via a polished stainless steel
reflector.
In addition to this cyclic self-test, the test lamps can be used when a "flame simulation test"
is initiated by the maintenance terminal. Further testing is not required to confirm correct
operation.
1.7. Wireless Configuration Tool
Information and status of the detector are available via the wireless configuration tool
TLU600/610.
Configuration and tests are performed using this wireless configuration tool (IrDA protocol).
This tool is common for all Simtronics MultiFlame, MultiXplo and
MultiTox products.
The TLU600/610 provides access to devices which, otherwise, would
require major logistic operations for maintenance or for
configuration (calibration …).
For more details, please refer to the wireless configuration tool
operating manual.
Some versions are equipped with the HART communicatio
n protocol, enabling
the use of all functions available with the TLU (see §7)
