Sinclair ZX Spectrum Service Manual

Spectrum For Everyone https://spectrumforeveryone.com/

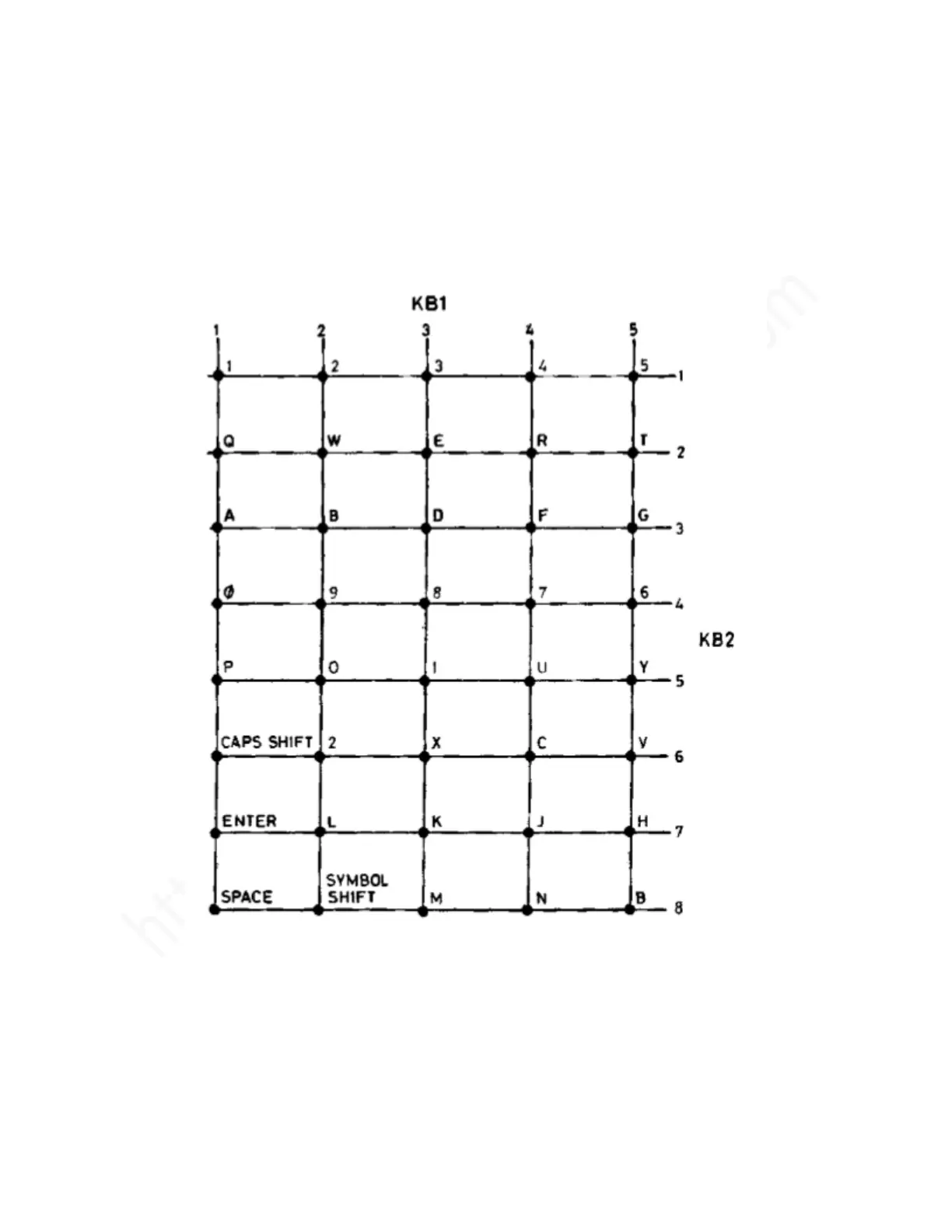

5.5 KEYBOARD STRUCTURE

The keyboard is connected horizontally in eight blocks of five keys and vertically in five blocks of eight

keys. The diagram below shows the configuration. It follows that is any block of five keys fail the fault is

with KB2 circuitry or the 8-way membrane, and that if any block of eight keys fail the fault is with KB1

circuitry or the 5-way membrane.
