Sindoh M611 - Page 107

101

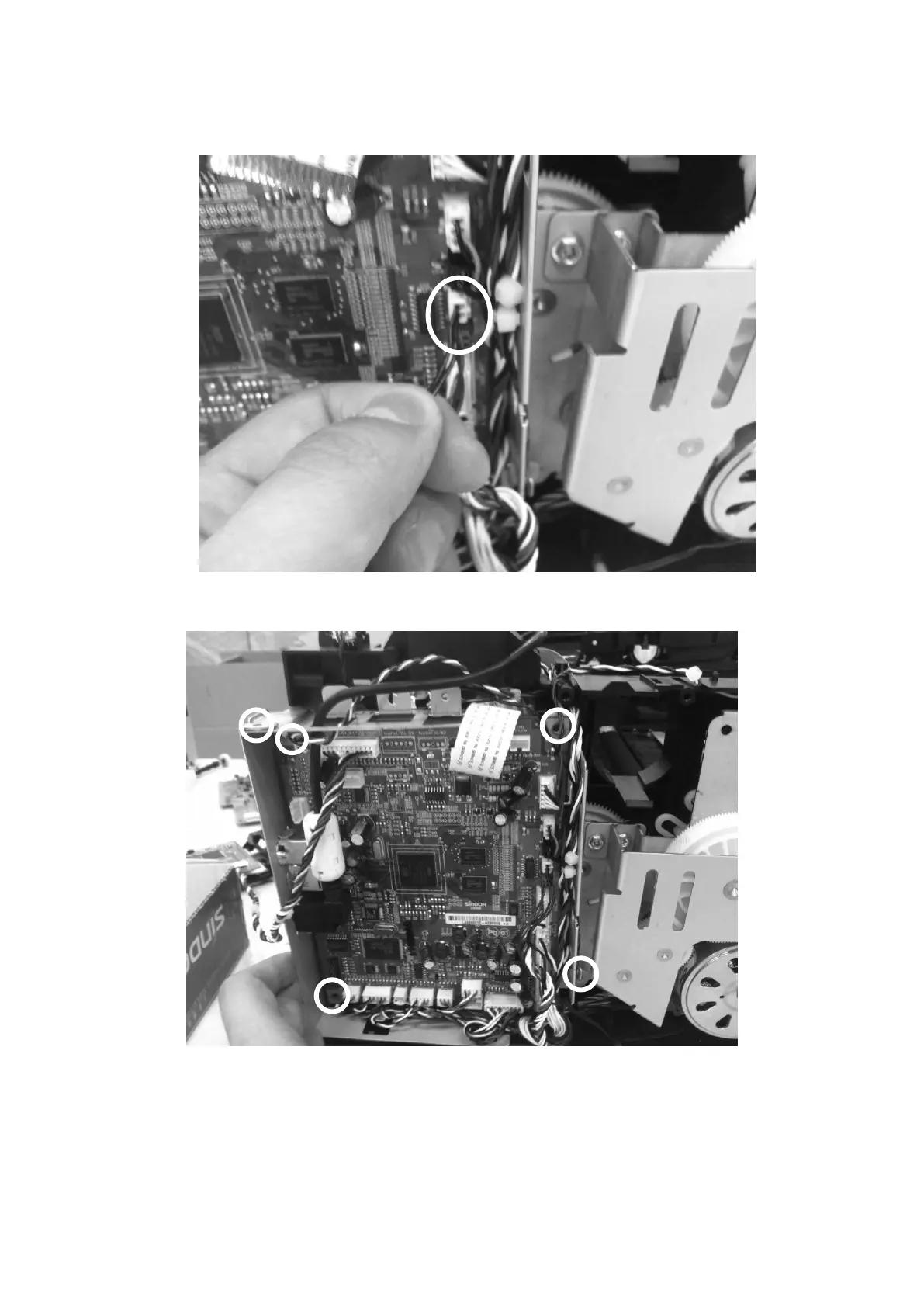

5. Release 5 fixed bolts of the main board BKT(5 locations) and push the BKT to the left to
see the bolt head.
6. Release the 8 fastened bolts connecting the Drive Assy to the left frame, and then pull
out the entire Assy outward.
