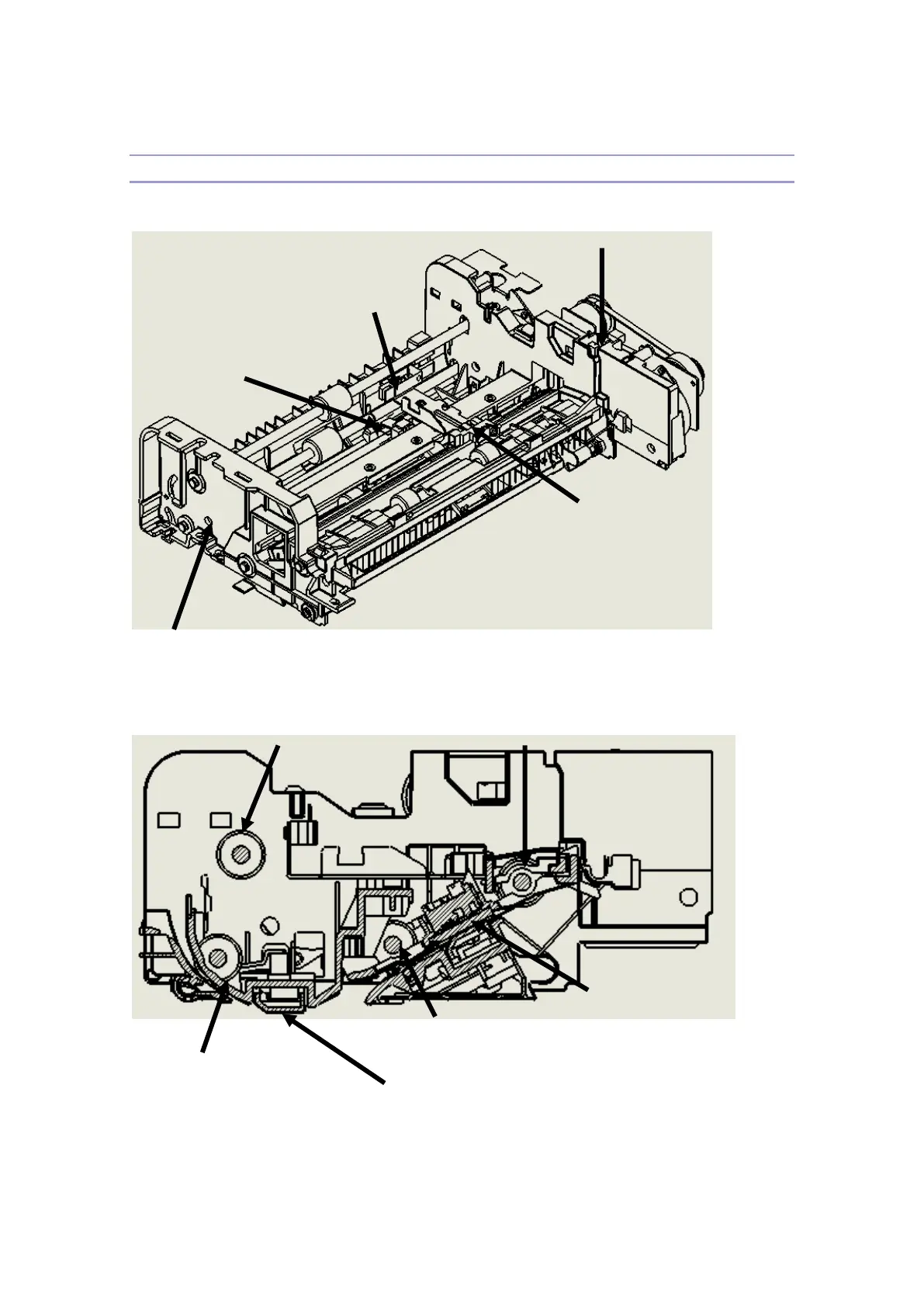

Components Layout of Duplex CORE ASSY
The duplex CORE ASSY has various rollers related to the paper trasportation.
M013 3241
FRAME CORE
M0100077
(INTERVAL sensor)
LM505319
(PRESENT sensor
LM505319
(top cover open detect sensor)
LM505319
(1st scan detect sensor)
M013 3262
ROLLER: 2ND FEED
M013 3261
ROLLER: 1ST SCAN
M013 3263
ROLLER: 2ND SCAN
M013 3264
ROLLER: EXIT
2nd scan position
1st scan position
