Sindoh M611 - Componets Layout of Lower GUIDE ASSY; Componets Layout of 1 St IDLE Guide ASSY

58

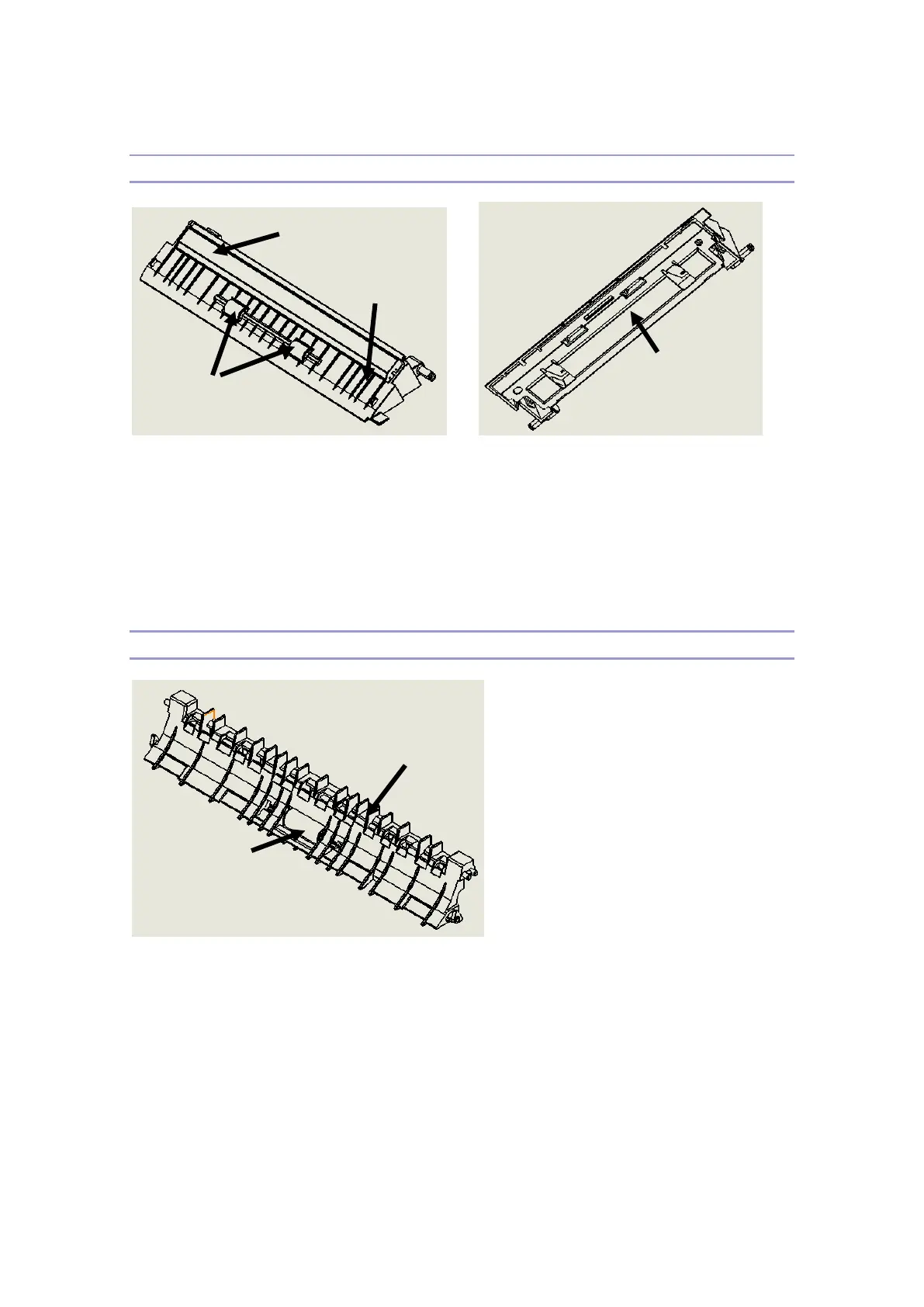

Components Layout Of LOWER GUIDE ASSY
This is an Assy to guide the lower part of the contact glass for duplex scan. It has a open
structure to clean dust or foreign substances.
Components Layout of the 1st IDLE Guide ASSY
This is an Assy with vertical motion roller for the original to go in for the 1st scan.
(Identical structure with OAK)
MV123244
FRAME:PRESSURE:FIRST
SCAN:EXIT
M0133331
GUIDE: LOWER
M0133333
ROLLER:DRIVEN:2ND SCAN
M0133334
LOWER GUIDE PLATE
M0133211
GUIDE:FIRST IDLE
M0133212
IDLE:R1
