Sindoh M611 - Componets Layout of Upper GUIDE ASSY

57
The Motor Assy has the ADF drive gears assembled in and consists of the transport area
and feed area, which are connected with each motor. The transport area is connected to
the 1st scan and the 2nd scan, and the feed area is connected to the tray and A3 drive.

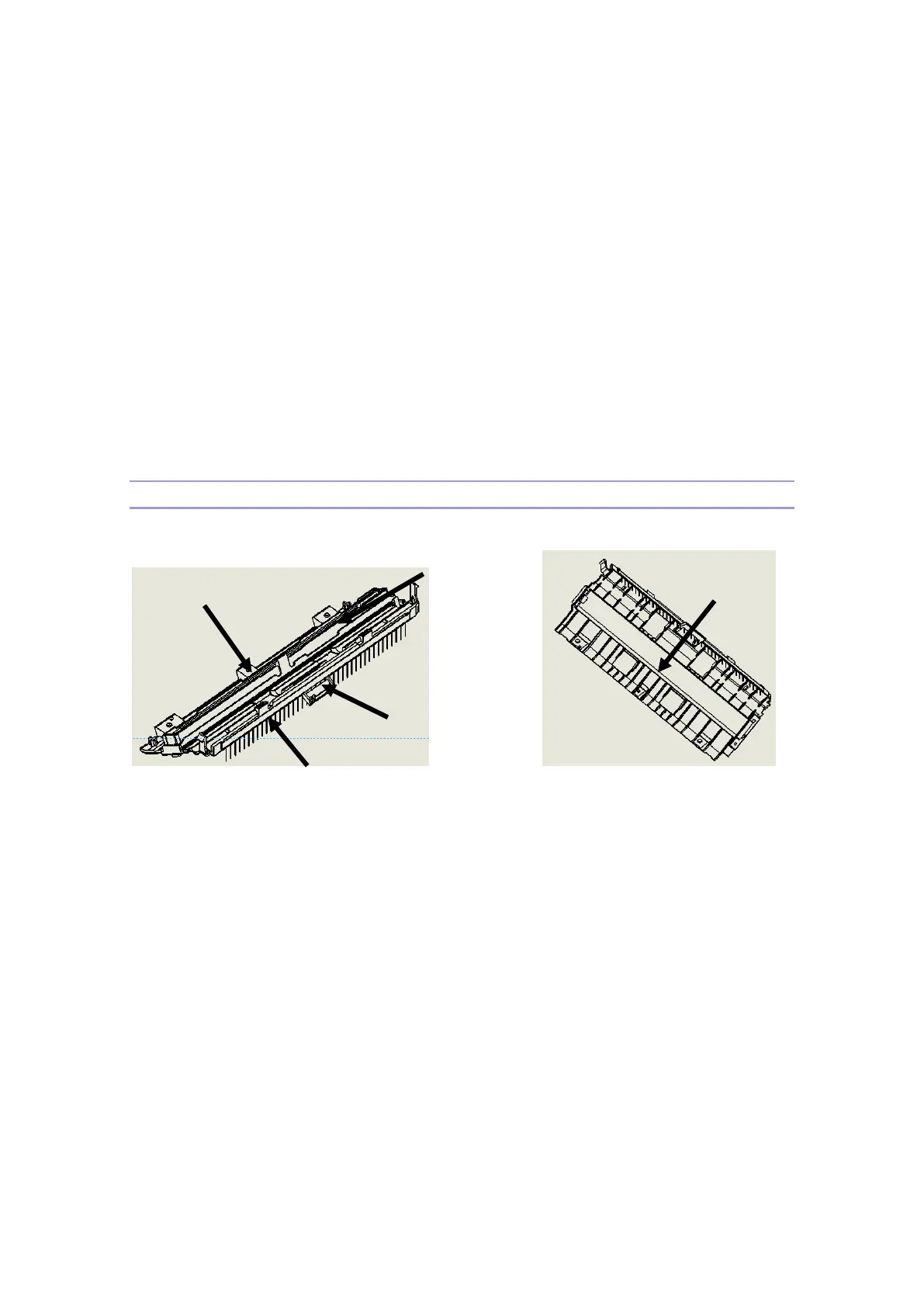

Components Layout of UPPER GUIDE ASSY
The PINETREE ADF has duplex copy and scan functions with its CIS in the ADF.
M0133321
GUIDE UPPER : CIS
M0133279
BRUSH:ANTISTATIC
:EXIT
M0131041
CIS PT
M0123295
STACKER EXIT
M0133323
GLASS : BACK
SIDE:EXIT
