Sindoh M611 - Paper Exit Unit

129
Paper Exit Unit

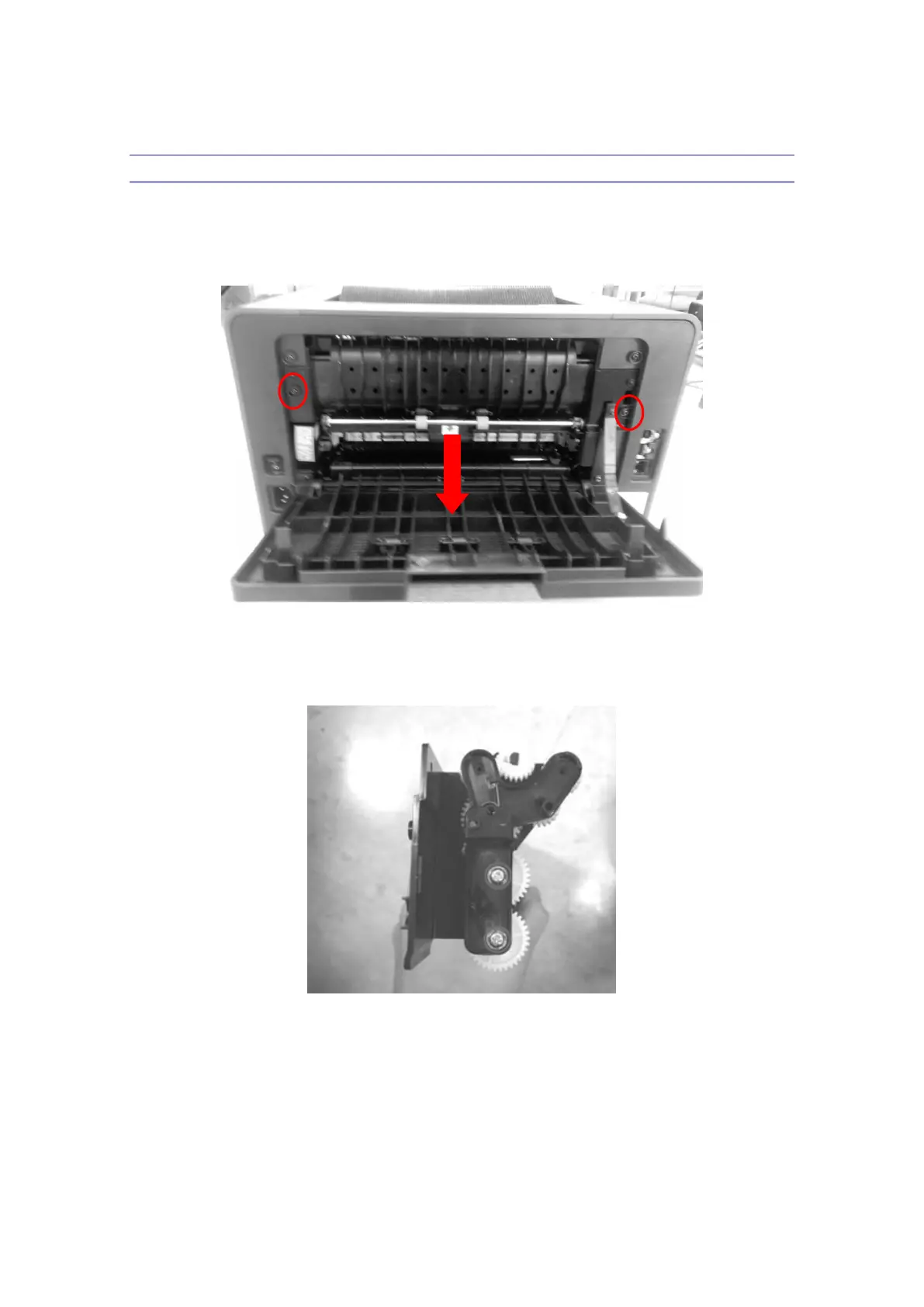

16. Remove the rear cover.
17. Remove 2 screws fastening the paper exit area frame, and then separate the paper
exit frame with lowering the fusing paper exit guide.
18. You can remove 2 screws to replace the fusing drive gear. You can separate the paper
exit roller shaft.
